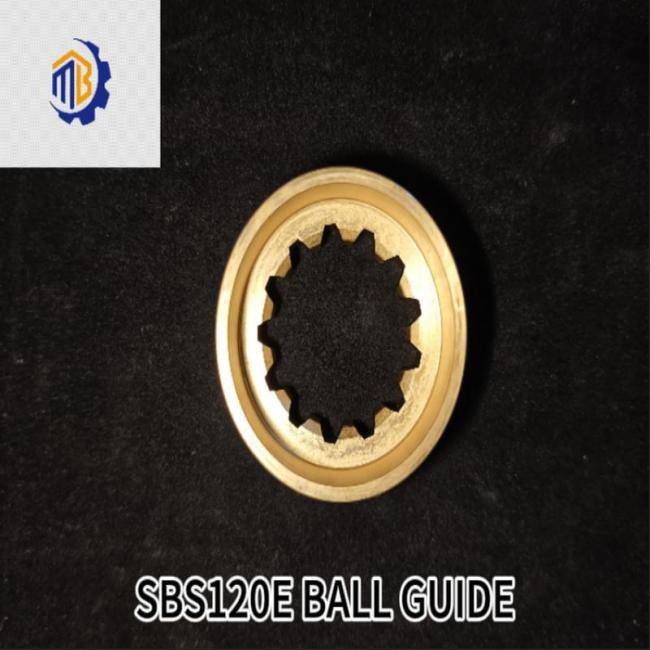

Caterpilar Ball Guide 341-2857 Sbs120e For E320D 320E Hydraulic Pump
Caterpilar Ball guide 341-2857 SBS120E For E320D 320E Hydraulic Pump
It serves as the mounting base for the swash plate. The swash plate is installed on this support, which is capable of pivoting about the pivot shaft to alter the swash plate’s tilt angle.
Full assembly order: Drive Shaft → Cylinder Block → Ball‑Guide → Set‑Plate → Piston Shoe → Swash Plate → Support
Ⅱ. Core Functions
Load bearing and mounting: Fastens the swash plate and withstands substantial thrust loads transferred by piston shoes.
Pivoting mechanism: Rotates around the pivot pin to adjust the swash plate inclination angle for variable displacement regulation.
Force reception: Takes up thrust force generated by the servo piston.
|
Machinery Test Report
|
Provided |
Warranty
|
3 Months |
|
Video outgoing-inspection
|
Provided | Brand Name |
OEM
|
|
Place of Origin
|
China | Product Name |
BALL GUIDE
|
|
Model
|
SBS120E | MOQ |
1 Piece
|
| Quality |
High-Quality
|
Delivery time
|
7-15 Days
|
|
Standard or Nonstandard
|
Standard
|
Application
|
Excavator Machinery
|
|
Size
|
Standard Size
|
Packing | Wooden Box |
Company Profile
