Keeping economy high efficiency soft 20shore00 4W Ceramic filled silicone thermal conductive pad 3.1 g/cc for notebook


  The TIF520-40-11US Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. The TIF520-40-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

TIF500-40-11US Datasheet-REV02.pdf

Features:
>  Good thermal conductive: 4.0 W/mK

>Thickness:0.5mmT

>hardnesses :20 (Shore 00)

>Moldability for complex parts

>Outstanding thermal performance

Applications:

>notebook

>power supply

>Heat pipe thermal solutions

>LED Power Supply

>LED Controller

>LED Ceilinglamp

Standard Thicknesses:


0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:


8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)

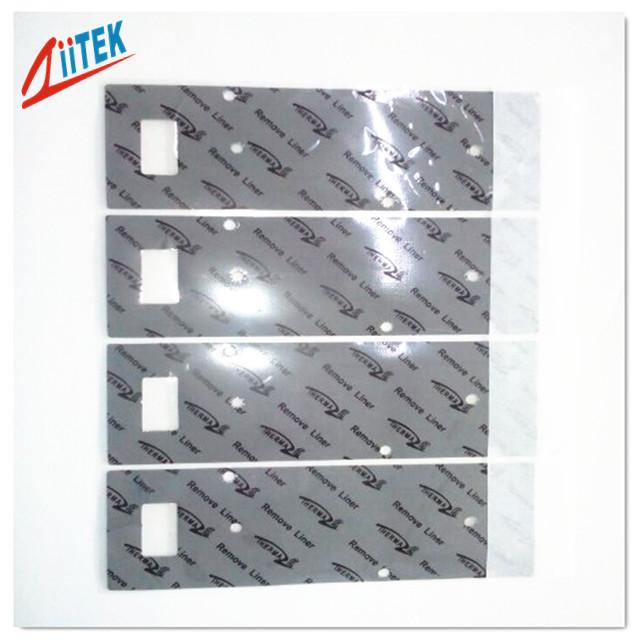

TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:


Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:


TIF™ series sheets type can add with fiberglass reinforced.
