12±5 Shore00 Thermal Conductive Pad Silicone Rubber For Memory Modules
12±5 Shore00 China company supplied thermally conductive silicone rubber For Memory Modules

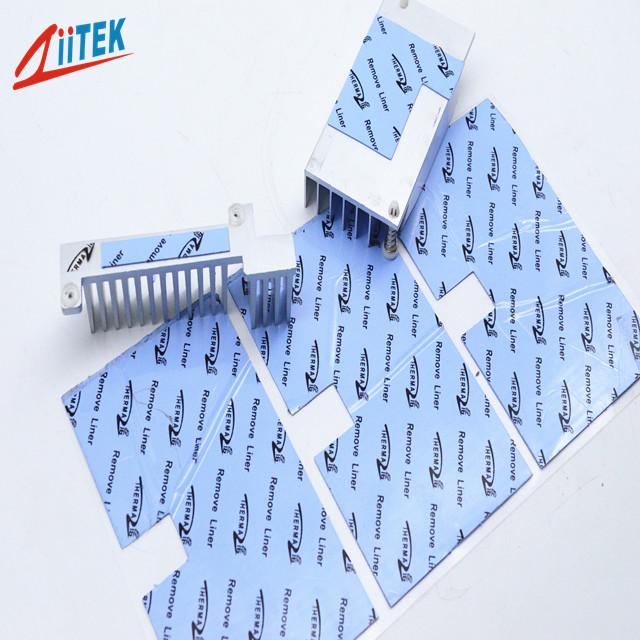

The TIF1100-05ES thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
Features
> Good thermal conductive: 1.5 W/mK
>Thickness:2.5mmT
>hardness:12±5 shore00
>Moldability for complex parts
>Outstanding thermal performance
Applications
>Automotive electronics
>Set top boxes
>Audio and video components
>IT infrastructure
>LED TV and LED-lit lamps
>RDRAM memory modules
>Micro heat pipe thermal solutions
>Automotive engine control units
Typical Properties of TIF1100-05ES Series | ||||
Color | Gray | Visual | Composite Thickness | Thermal Impedance@10psi (℃-in²/W) |
Construction & Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.16 |
20mils / 0.508 mm | 0.20 | |||
Density | 2.0 g/cm3 | ASTM D297 | 30mils / 0.762 mm | 0.31 |
40mils / 1.016 mm | 0.36 | |||
| Thickness | 2.5mmT | *** | 50mils / 1.270 mm | 0.42 |
60mils / 1.524 mm | 0.48 | |||
Hardness | 12±5 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.53 |
80mils / 2.032 mm | 0.63 | |||
Outgassing(TML) | 0.30% | ASTM E595 | 90mils / 2.286 mm | 0.73 |
100mils / 2.540 mm | 0.81 | |||
Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 0.86 |
120mils / 3.048 mm | 0.93 | |||
Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.00 |
140mils /3.556 mm | 1.08 | |||
Dielectric Constant | 4.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.13 |
160mils / 4.064 mm | 1.20 | |||
Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.24 |
180mils / 4.572 mm | 1.32 | |||
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 1.41 |
200mils / 5.080 mm | 1.52 | |||
Thermal conductivity | 1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
