2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad
2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad

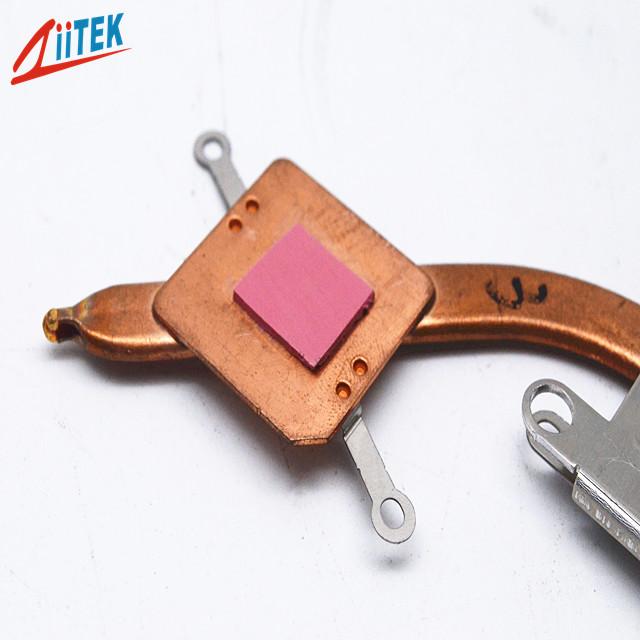

The TIF120FG-20-15S is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
Features:
| Good thermal conductive 2 W/mK |
| Moldability for complex parts |
| Soft and compressible for low stress applications |
| Naturally tacky needing no further adhesive coating 2 W/mK |
| Available in varies thicknesses |
Applications:
| CPU |
| display card |
| mainboard/mother board |
| notebook |
| power supply |
| Heat pipe thermal solutions |
| Memory Modules |
| Mass storage devices |
| Automotive electronics |
|
Typical Properties of TIF 120FG-20-15S
|
||||
|
Color
|
pink |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.55 |
| 20mils / 0.508 mm |
0.82 |
|||
|
Specific Gravity
|
2.87 g/cc |
ASTM D297 |
30mils / 0.762 mm |
1.01 |
|
40mils / 1.016 mm |
1.11 |
|||
|
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
1.27 |
|
60mils / 1.524 mm |
1.45 |
|||
|
Hardness
|
45 (Shore 00) |
ASTM 2240 |
70mils / 1.778 mm |
1.61 |
|
80mils / 2.032 mm |
1.77 |
|||
| Tensile Strength |
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.91 |
|
100mils / 2.540 mm |
2.05 |
|||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
2.16 |
|
120mils / 3.048 mm |
2.29 |
|||
|
Dielectric Breakdown Voltage
|
>1500～>5500 VAC | ASTM D149 |
130mils / 3.302mm |
2.44 |
|
140mils / 3.556 mm |
2.56 |
|||
|
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
2.67 |
|
160mils / 4.064 mm |
2.77 |
|||
|
Volume Resistivity
|
4.0X10" Ohm-meter |
ASTM D257 |
170mils / 4.318 mm |
2.89 |
|
180mils / 4.572 mm |
2.98 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
3.05 |
|
200mils / 5.080 mm |
3.14 |
|||
|
Thermal conductivity
|
2 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
0.0203" (0.5mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
TIF™ series sheets type can add with fiberglass reinforced.
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
