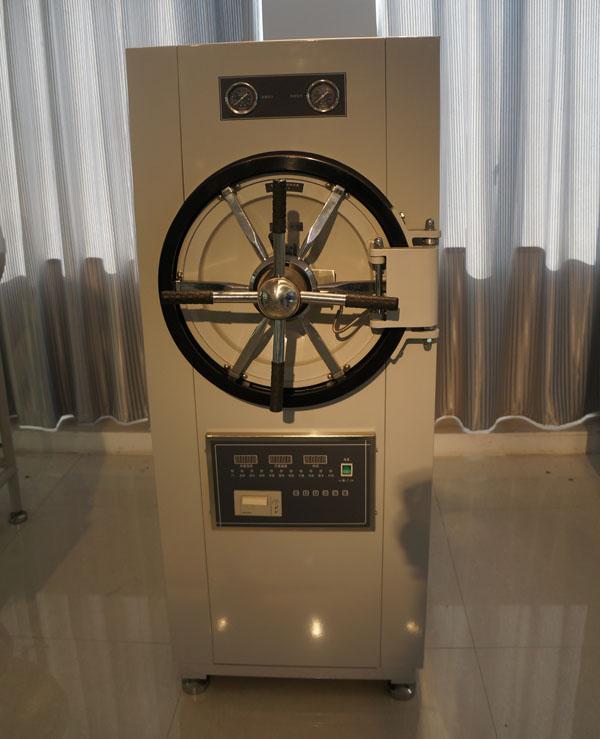

Adjustable Timer Controller Medical Autoclave Sterilizer With Over Pressure Protection
Adjustable Timer Controller Medical Autoclave Sterilizer With Over Pressure Protection
Benefits
- Thorough drying improves sterilization results
- Faster drying for a shorter overall cycle
- 0.22um air filter provides sterile, bacteria-free air for drying
- Rapid cycles optimize the availability of ready-to-use sterile instruments
- Easy-to-use, single touch control system increases productivity
- Enhanced monitoring for consistent documentation of sterilization results
- Long lasting, easy to maintain autoclaves guarantee virtually no downtime
Features
1. Door safety locking system
2. With digital adjustable timer and digital adjustable pressure/temperature controller
3. Beep alarm and shut off after cycle finish
4. Safe protection of water lack, over temperature, over pressure
5. Full structure of stainless steel
6. With micro-printer(optional)

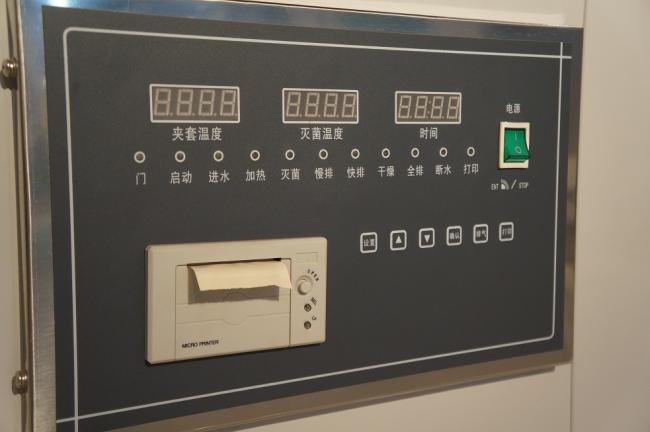

7. Digital LED display of temperature and time and controlled by micro-computer
8. Drying system
9. Working process indicator
Specifications
|
Safety material |
Chamber of SS304,Stainless steel frame and cover |
|
Max working pressure |
0.22MPa |
|
Max working temperature |
134℃ |
|
Adjustment of temperature |
105---134℃ |
|
Adjustment of Timer |
0---99min |
|
Chamber temperature difference |
≤±2℃ |
|
Power |
AC380, 3P/N/E, 50Hz |
Optional models
|
Order No. |
Chamber( mm ) |
Dimensions( mm ) |
Package Dimensions |
NW/GW |
Power |
|
HT-150YDD |
150L(φ440 *1000) |
1400*650*1600 |
1560*820*1820mm |
340/430Kg |
9KVA |
|
HT-200YDD |
200L(φ515 *1000) |
1400*750*1700 |
1560*910*1880mm |
350/436Kg |
9KVA |
|
HT-280YDD |
280L(φ600 *1000) |
1520*910*1900 |
1680*1080*2100mm |
462/570Kg |
12KVA |
Applications
The steam sterilizer is a highly safe sterilizing product with stable function, suitable for major
hospitals, clinics and biochemical research laboratories etc., for the sterilization of instrument,
cloth, glassware and liquid etc.
