Pharmaceutical Industrial Steam Boiler LSS Vertical Water Tube Steam Boiler
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
within 20 working days
Brand:
Medpharm
Product Description
LSS Vertical Water Tube Steam Boiler For Pharmaceutical Industry
Key features:
1. Start quickly ,can realize temperature and pressure rise during a short period of time.
2. Forced circulationn,full combustion,reducing NOx emissions.
3. With multi chain protection for water level,steam pressure,overheating.
4. Multi steam and water separation technology,quality steam.
5. External steam and water separator has national invention patent.
6. Vertical structure is compact and beautiful,which saves space and easy for installation.
Technical Data:
| Type | LSS0.5 | LSS1 | LSS1.5 | LSS2 | ||
| Rated evaporation | t/h | 0.5 | 1 | 1.5 | 2 | |
| Rated working pressure | MPa | 0.7/1.0 | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 | |
| Staturated steam temperature | ℃ | 170/193 | 184/193 | 184/193 | 184/193 | |
| Fuel consumption |
Light diesel oil | kg/h | 35 | 70 | 105 | 140 |
| Natural gas | Nm3/h | 40 | 80 | 120 | 160 | |
| Liquefied gas | Nm3/h | 15 | 30 | 45 | 60 | |
| Pipeline gas | Nm3/h | 85 | 170 | 265 | 340 | |
| Main valve caliber | DN | 40 | 50 | 65 | 80 | |
| Safty valve caliber | DN | 40 | 50 | 50 | 40×2 | |
| Infall caliber | DN | 25 | 25 | 32 | 40 | |
| Sewage valve caliber | DN | 25 | 40 | 40 | 40 | |
| Chimney caliber | DN | 250 | 350 | 400 | 500 | |
| Overall size | L | 1830 | 1980 | 2045 | 2550 | |
| W | 1780 | 1980 | 2220 | 2780 | ||
| H | 2650 | 3080 | 3380 | 3620 | ||
| H1 | 2100 | 2300 | 2650 | 2880 | ||
| φ | 1180 | 1380 | 1680 | 1980 | ||
| Weight | T | 1.8/2.2 | 2.3/2.8 | 3.3/4 | 4.3/5.2 | |
System Installation Drawings

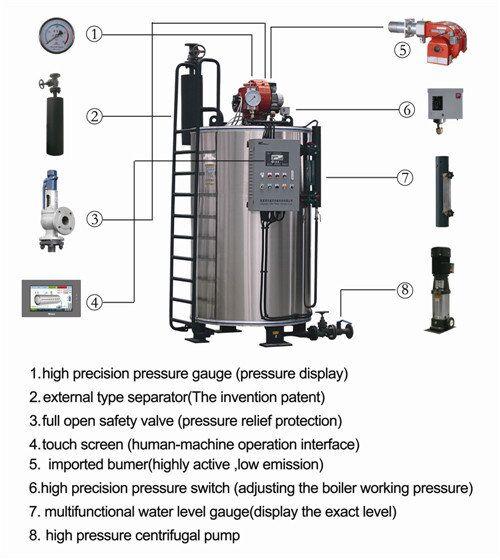

Product analysis picture :

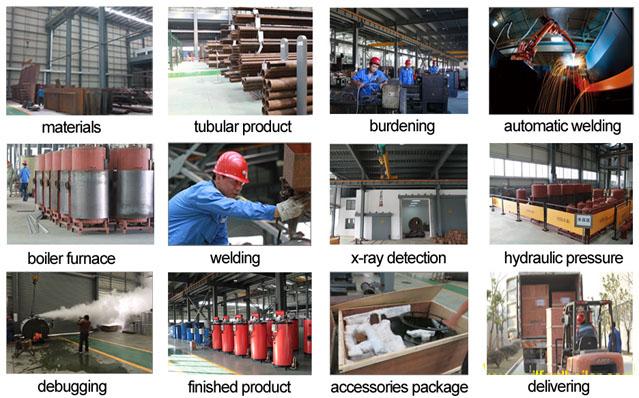

Manufacture Process:
Project case:
