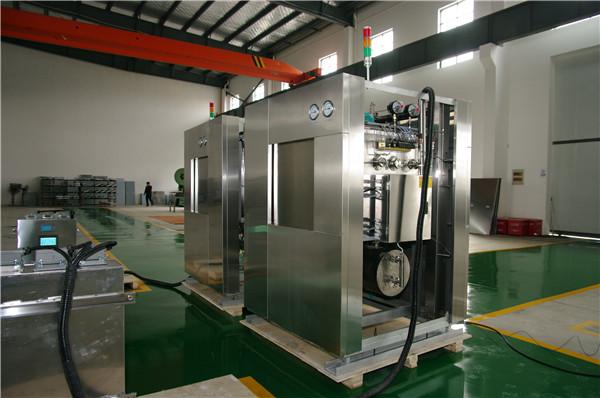

Polished Hospital Steam Sterilizer With Silicone Seal And Safety Interlock
Polished Hospital Sterilizer With Silicone Seal And Safety Interlock
Specification
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MD-0.11V |
400*400*700 |
1000*1800*1040 |
650 |
14 |
15 |
2 |
|
MD-0.16V |
400*400*1000 |
1000*1800*1340 |
700 |
16 |
20 |
2 |
|
MD-0.20V |
400*400*1300 |
1000*1800*1640 |
750 |
18 |
25 |
2 |
|
MD-0.24V |
600*600*670 |
1200*2000*1010 |
800 |
20 |
30 |
2 |
|
MD-0.30V |
600*600*840 |
1200*2000*1180 |
850 |
22 |
35 |
2 |
|
MD-0.36V |
600*600*1000 |
1200*2000*1340 |
900 |
25 |
40 |
2 |
|
MD-0.45V |
600*600*1250 |
1200*2000*1590 |
980 |
27 |
50 |
2 |
|
MD-0.60V |
600*600*1670 |
1200*2000*2010 |
1100 |
30 |
60 |
3 |
Description
Strong Vacuum Pump
The built-in vacuum pump produces a strong vacuum that ensures proper air removal for excellent sterilization results.
Inactivation of Micro-organisms
After sterilization the number of micro-organisms are reduced to less than 10-6.
Fast Cooling for Fast Cycles
Fast cycles are an important factor that influences the waste processing time. A built-in cooling
coil is an important feature that reduces cycle cooling times enabling higher cycle rates and
empowering you to sterilize medical waste without delays.
Specialized Loading Cart for Waste Transfer
A specialized loading cart for safely transferring medical waste is available with the following
important features:
• The bottom shelf has no holes to prevent liquid from leaking out of the cart
• The bottom shelf has a drain to enable collection of any liquid waste into a container
• All the shelves have a barrier around their perimeter to prevent waste from falling off the cart
Flexible PT100 for Liquid Loads
When treating blood, urine and other liquid medical waste a flexible PT100 placed in liquid waste
load ensures sterilization at an effective sterilization temperature.
Prevacuum Air Sterilization
All air that leaves the chamber prior to sterilization is treated as highly infectious and passes
through a stringent biological decontamination system that renders the air sterile.
Thermal Sterilization
Prevacuum air leaves the chamber and makes contact with high temperature steam and is then
passed through a high temperature heat exchanger which greatly increases the heat applied to
the air making the air sterile and safe. The sterilized air is then cooled and any condensate is
discharged to the drain.
Applications
Hospital, clinic, laboratory
Competitive Advantage
Medpharm rectangular chambers eliminate the wasted space and high utility costs common to
old-style cylindrical or elliptical chambers.
