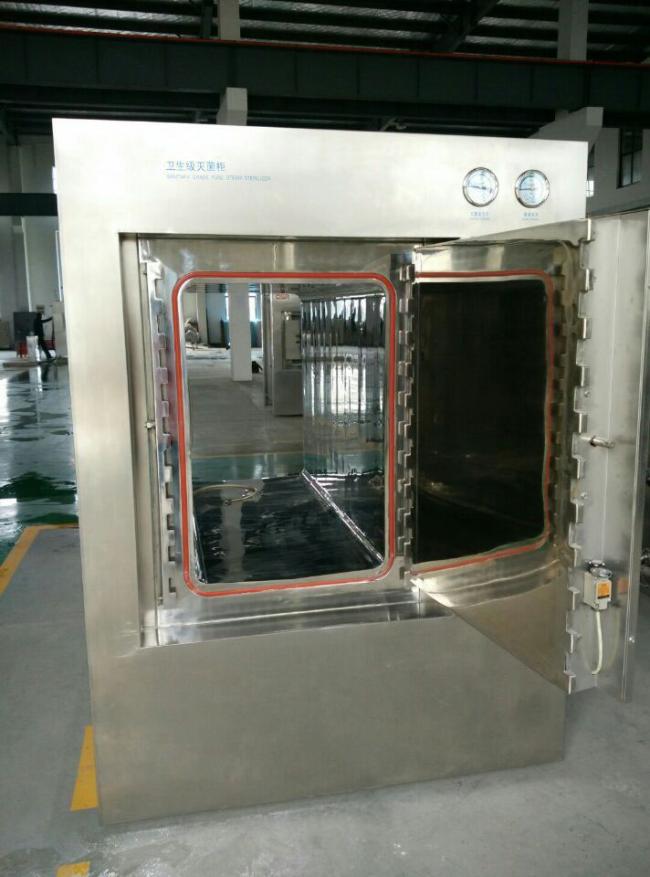

Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket
Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket
Key features:
• Mirror polished (<20Ra) chamber and door with "easy-clean" rounded corners and
floor-sloping drain system.

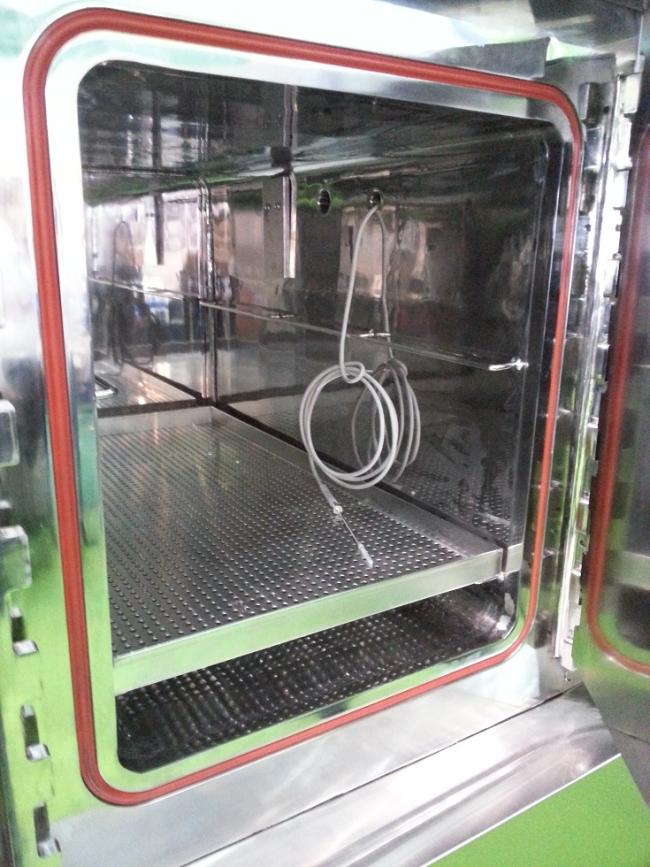

• High temperature FDA approved silicone door seal.
• Non-proprietary components for all plumbing, electrical and control systems.
• Industrial grade pneumatic valves provide high reliability and low maintenance costs.
• Guaranteed chamber temperature control of +/- 0.5 oC.
• Guaranteed chamber temperature distribution of +/- 1.0 oC.
• Chamber drain line condensate level sensor system.
• Ethernet communications for remote data acquisition capability for option.
• Automatic temperature and pressure instrument calibration function.
Description:
Our pharmaceutical autoclaves are designed and manufactured in a state of the art facility in
compliance with cGMP regulations to meet the technical challenges of pharma and biotech
industries.
Pharmaceutical autoclaves provide precise control and reliable sterile processing. We provide high quality & safe autoclaves made from reliable long lasting components, and designed to conform to end user requirements (URS) for production and quality assurance processes.
Specification:
|
Model |
MDB-0.6 |
|
Door type |
Motorized Hinge Door ,single door |
|
Chamber volume and size |
600L , 610*910*1170mm |
|
Overall Size |
1450*1900*1510mm |
|
Net Weight |
1250kg |
|
Steam |
30Kg/cycle |
|
Water |
70Kg/cycle |
|
Power(KVA) |
3KVA |
|
Sterilization temperature rage |
105°C to 134°C |
|
Sterilization time rage |
0---99 minutes |
|
Vacuum times |
0---9 times |
|
Drying time |
0---99 minutes |
|
Main components |
SS304 built-in steam generator |
|
Touch screen display |
|
|
PLC control system |
|
|
High effective liquid-ring vacuum pump |
Materials for different choice:
|
MATERIALS are important for autoclaves The chamber and jacket are manufactured in various grades of stainless steel.
Many sterilizer pressure vessels fail from pitting and stress corrosion cracking as a result of poor water quality in the steam generators.
Medpharm autoclaves incorporate an automatic blow down feature into its steam generators
Chambers are electro-polished to give a high quality surface finish.
|
||
|
Chamber |
STEEL |
|
|
304 L stainless steel |
STANDARD |
|
|
316 L stainless steel |
|
|
|
Jacket |
STEEL |
|
|
304 L stainless steel |
STANDARD |
|
|
316 L stainless steel |
|
|
|
Door internal side |
STEEL |
|
|
304 L stainless steel |
STANDARD |
|
|
316 L stainless steel |
|
|
