Laboratory Veterinary Medical Devices With Independent Recording For Animal Research Center
Features
-
Automatic sliding doors with safety edge and auto-reverse system.
-
Pre/post vacuum system Air detector.
-
Steam jacket for optimum drying performance
-
8-program user-friendly touch screen control system.
-
Thermal data printer
-
E-Stop
-
Clean steam option
A part of size for selection
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MD-0.11V |
400*400*700 |
1000*1800*1040 |
650 |
14 |
15 |
2 |
|
MD-0.16V |
400*400*1000 |
1000*1800*1340 |
700 |
16 |
20 |
2 |
|
MD-0.20V |
400*400*1300 |
1000*1800*1640 |
750 |
18 |
25 |
2 |
|
MD-0.24V |
600*600*670 |
1200*2000*1010 |
800 |
20 |
30 |
2 |
|
MD-0.30V |
600*600*840 |
1200*2000*1180 |
850 |
22 |
35 |
2 |
|
MD-0.36V |
600*600*1000 |
1200*2000*1340 |
900 |
25 |
40 |
2 |
|
MD-0.45V |
600*600*1250 |
1200*2000*1590 |
980 |
27 |
50 |
2 |
|
MD-0.60V |
600*600*1670 |
1200*2000*2010 |
1100 |
30 |
60 |
3 |
Description

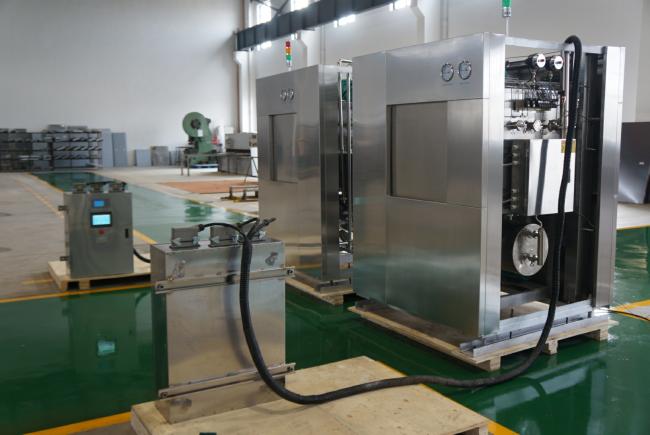

• Our range of porous load rectangular chambered sterilizers are available in six standard sizes
and 110 to 600 liters.
• All models can be configured for either single entry or pass-through. All models are fitted with a
wide selection of features as standard, all designed to ensure optimum performance and the
fastest possible cycle times.
• In addition to traditional loading trolley systems, Medpharm is also able to provide assisted and
automated loading solutions.
• Pass-Through: Available throughout range
• Section: Square or Rectangular
• Loading: Front
• Heating Source: Integral/stand-alone steam generator or direct steam supply
Cycles
|
Cycle name |
Further details |
Application |
|
Instruments/Tools |
3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. |
Solid materials to be sterilized: ●Packaged instruments ●Empty glass containers ●Empty metal containers Porous materials to be sterilized: ●Rubber articles |
|
Clothing |
3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. |
Materials to be sterilized from which air can’t be easily displaced ●Textile |
|
User Programmable |
All preset parameters can be reset; Multiple customized programs can be set and stored by user. |
Customized |
|
Test cycles |
||
|
B-D Test |
3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. |
Test program |
|
Vacuum Leak Test |
Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. |
Test program |
Popular Options
1. Loading/Carriage Trolleys
2. Stainless steel pipe work Independent monitoring
3. Air Compressor
4. RO water system
5. Remote data archiving
