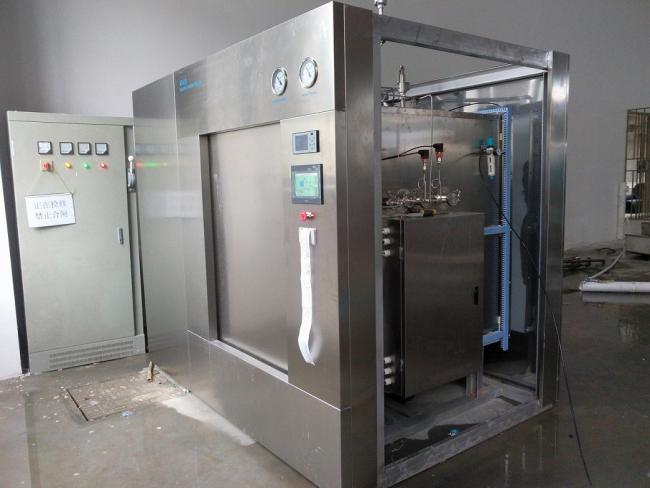

Pressure Monitoring And Recording Autoclave Sterilizer Machine For Spice Or Herb
Brief
Up to 5 logs reduction for TPC, while other germs and including pathogens are entirely inactivated: Yeast, Mold, Enterobacteriacea (E. Coli), Coliforms, Salmonella.
Parameters
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MD-2.0Y |
1000*1200*1700 |
2800*2000*2110 |
2490 |
60 |
400 |
4.5 |
Description
Medpharm technology is based on the unique and patented combination of a electrically heated conveyor with steam, that reduces germ content with a minimal alteration of its properties.
• Product is gently conveyed though the chamber by a heated screw which heats by joule effect.
• Germ reduction is achieved due to the combination of the screws heat and steam. Steam can be saturated, dry or superheated according to the treatment to be achieve.
• A transformer delivers the electrical power that heats the screw by joule effect.
Applications
- Herbs and botanicals
- Dehydrated vegetables
- Seeds, Nuts and dried fruits
- Cereals, Rice, Flours
Competitive Advantage
Medpharm achieves high performance of microbial load reduction, while maintaining the organoleptical properties of the products. taste, color and moisture are preserved. Volatile oil loss is less than 5-10 %, which is less loss than with other traditional steam treatment systems.
A 5 log reduction of salmonella and a significant reduction of spores’ content are also guaranteed.
Program Parameter
|
Cycle name |
Further details |
Application |
|
Instruments/Tools |
3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. |
Solid materials to be sterilized: ●Packaged instruments ●Empty glass containers ●Empty metal containers Porous materials to be sterilized: ●Rubber articles |
|
Clothing |
3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. |
Materials to be sterilized from which air can’t be easily displaced ●Textile |
|
User Programmable |
All preset parameters can be reset; Multiple customized programs can be set and stored by user. |
Customized |
|
Test programs |
||
|
B-D Test |
3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. |
Test program |
|
Vacuum Leak Test |
Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. |
Test program |
