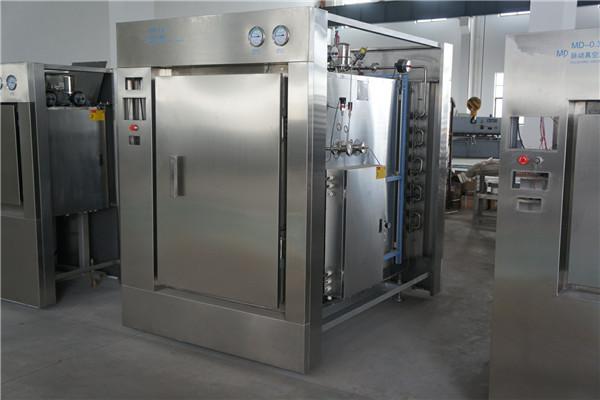

Motorized Hinge Door Hospital Autoclaves With High Effective Vacuum Pump And Built in Printer
Motorized Hinge Door Hospital Autoclaves With High Effective Vacuum Pump And Built in Printer
Applications
This hospital sterilizer is designed and manufactured specially for hospital CSSD, operating room to sterilize medical instruments, sterile clothing, dressings, vessels, apparatuses, operating tools, culture medium etc.
Features
- High capacity in a small footprint
- Motorized hinge door stable and easy operation

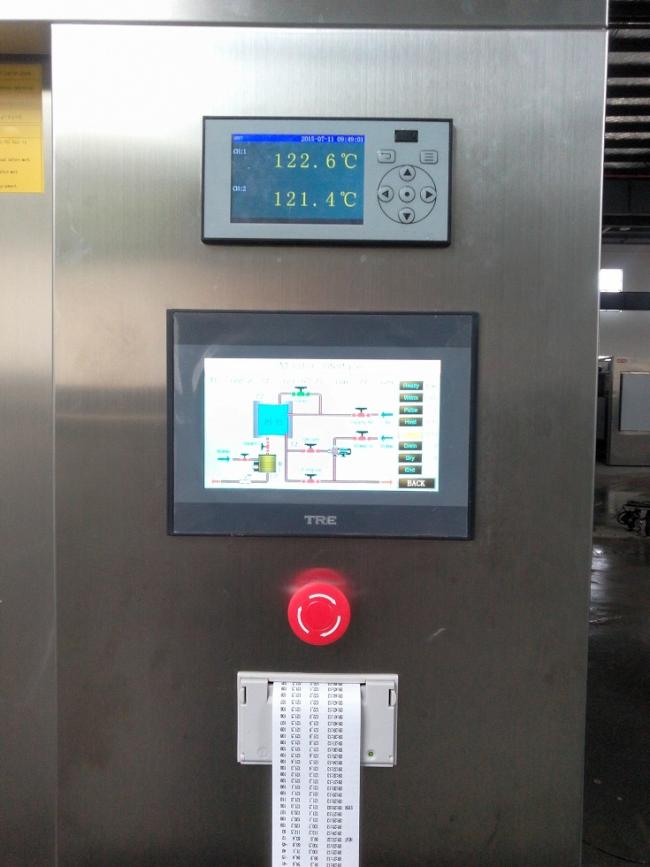

- Touch screen technology for high user interaction
Possibility to have the technical maintenance area for easy maintain on the left or on the right or both sides

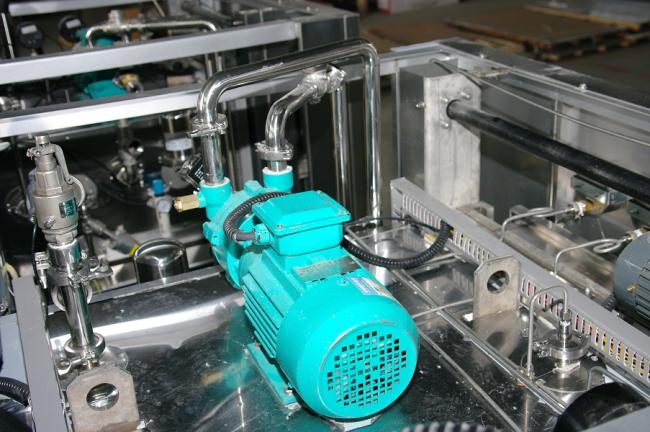

- High effective liquid-ring vacuum pump saving energy
- Excellent ergonomics together with well-adapted accessories
- Built-in steam generator is optional
- Integrated automatic PLC control system with one key operation function
- High quality chamber with fine polished of quality stainless steel
- Flexible loading system suitable for various goods requirements
Specifications
Electrical power | Our ordinary electrical power is AC380v, 50Hz, 3phase, N, E |
Other electrical power standards are available and compatible | |
Steam feeding | External steam supply, 0.4---0.7MPa, saturated steam offer by user |
Built-in electrically heated steam generator | |
Built-in industrial steam heated steam generator | |
Combining steam generators: individual electrically heated steam generators | |
Water | Softened water (Hardness <50ppm, pH Neutral) is at least requirement for the |
Water pressure: 0.15----0.3MPa | |
Compressed air | Oil free compressed air is important to the autoclave’s running. |
Oil free silence air-compressor is optional for user’s selection. | |
Compressed air pressure: 0.5---0.8MPa | |
Loading patterns | Flexible loading system suitable for various goods requirements |
Loading Baskets | |
Loading trays | |
Loading car and trolley |
Main Parameters
Model | Chamber Size | Overall Size | Net Weight | Steam | Water | Power |
W*H*D mm | W*H*D mm | Kg | Kg/cycle | Kg/cycle | KVA | |
MD-0.24 | 600*600*670 | 1500*1800*1010 | 700 | 20 | 30 | 2 |
MD-0.36 | 600*600*1000 | 1500*1800*1340 | 800 | 25 | 40 | 2 |
MD-0.6 | 610*910*1170 | 1500*1900*1510 | 1250 | 30 | 60 | 3 |
MD-0.8 | 610*910*1450 | 1500*1900*1790 | 1400 | 35 | 80 | 3 |
MD-1.0 | 680*1180*1250 | 1600*2000*1590 | 1550 | 40 | 100 | 4 |
MD-1.2 | 680*1180*1500 | 1600*2000*1840 | 1950 | 45 | 120 | 4 |
MD-1.5 | 680*1180*1870 | 1600*2000*2210 | 2150 | 50 | 150 | 4.5 |
MD-2.0 | 1000*1200*1700 | 2000*2000*2040 | 2400 | 60 | 200 | 4.5 |
MD-3.0 | 1000*1500*2000 | 2000*2200*2340 | 2950 | 90 | 300 | 5 |
MD-4.0 | 1000*1500*2670 | 2000*2200*3010 | 3600 | 120 | 400 | 6 |
MD-5.0 | 1000*1500*3340 | 2000*2200*3680 | 4500 | 150 | 500 | 8 |
MD-6.0 | 1000*1500*4000 | 2000*2200*4340 | 5300 | 180 | 600 | 8 |
MD-8.0 | 1000*1500*5340 | 2000*2200*5680 | 6900 | 240 | 800 | 12 |
Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
