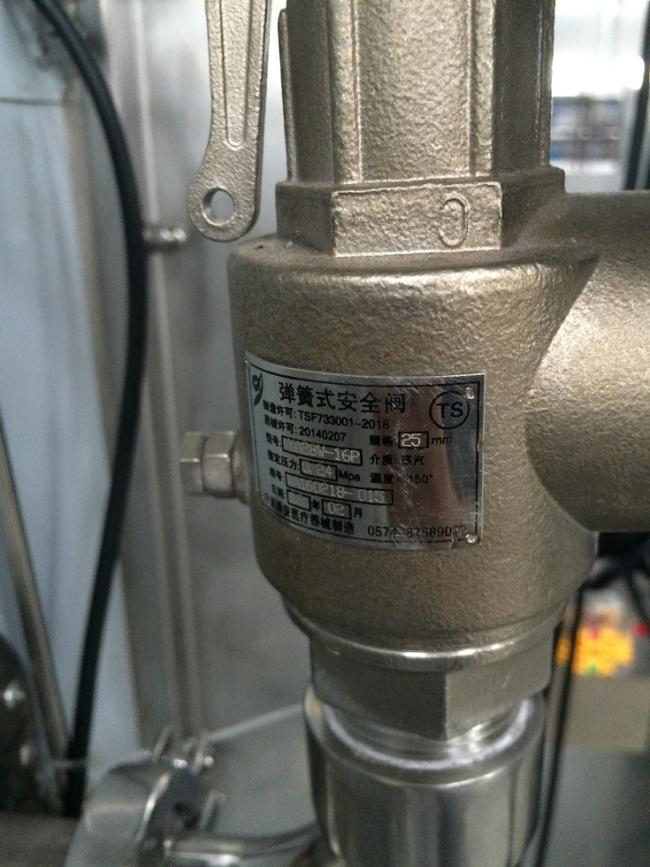

Mutil Programmed Sterilization Cycles Laboratory Steam Sterilizer With Safety Relief Valve

Mutil Programmed Sterilization Cycles Laboratory Autoclave With Safety Relief Valve

Description

• Autoclaves (also referred to as steam sterilizers) are designed to sterilize at temperatures between 212°F and 275°F (100°C and 135°C) through the use of steam.
• The Lab Series is particularly suitable for animal laboratory, life science and medical research applications.
• Choose from a stainless steel or nickel-clad steel vessel construction in a variety of sizes and programmable control options for pre-vacuum or gravity operation.

Key Features

• Chamber volume from 240 to 360 liters
• 5.7 inch Multi-color touch screen panel
• Keypad control panel on second door of two door autoclaves
• Stores the last 150 cycles data in built-in memory
• Multiple access levels and user passwords to control access/operation of the autoclave
• Diagnostic In/Out test (enables technician to check each system component separately)
• Sterilization Temperature range 105°C to 135°C
• Filter replacement notifications

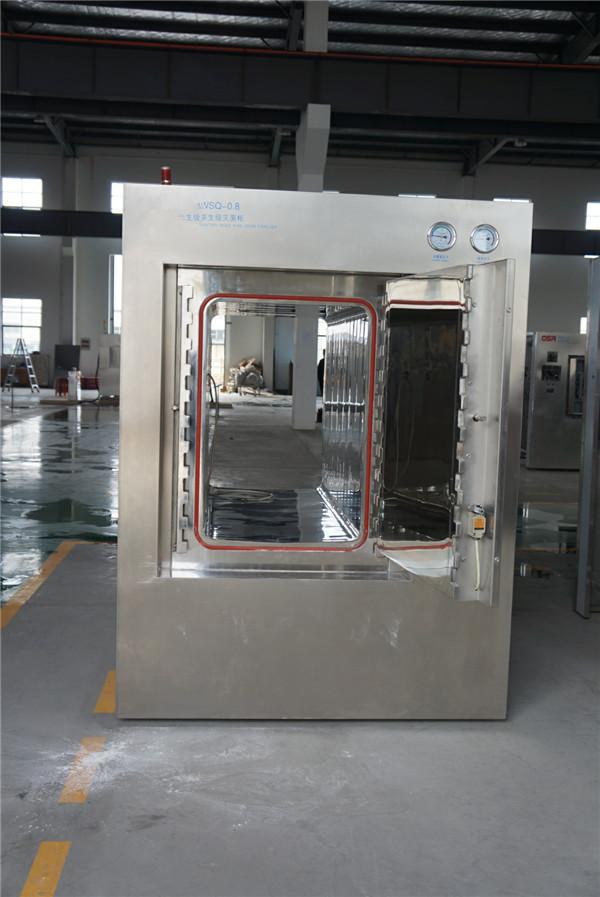

• Double door pass-through autoclave
• Autoclave chamber is made of AISI316L, piping and fittings connected with chamber are made of 316L, others are made of 304 stainless steel
• User friendly Touch Screen HMI

Parameters

F0 value for sterilization accurate control

The "equivalent kill effect" F0 value is calculated during the heat-up phase of a sterilization cycle thereby reducing total media exposure time.

Sterilization exposure time begins when the slowest-to-heat load temperature sensor within the autoclave has reached a predetermined set temperature.

Streaming Steam Cycle (105°C)

The streaming cycle is most commonly used for melting agar in Petri dishes. It is a low temperature sanitation cycle set at 105°C. Steam is allowed to enter the chamber and the fast exhaust valve is opened to allow steam to stream over the contents of the unit.

Applications

These sterilizers are special designed for the sterilization of solid and porous biological products in biosafety laboratories like filters, sealing gaskets, empty containers, textiles and clothing, rubber stoppers, machine and system components.

Safe And Reliable Manufacturer

In research institutes, universities and biosafety laboratories people work with highly sensitive laboratory materials requiring extremely responsible handling. Safety and reliability are vital factors in laboratory reprocessing.

Medpharm is familiar with the demands running a laboratory poses and has been providing state-of the art solutions used in laboratories, pharmaceutical companies, biotech companies, universities and hospitals.

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
