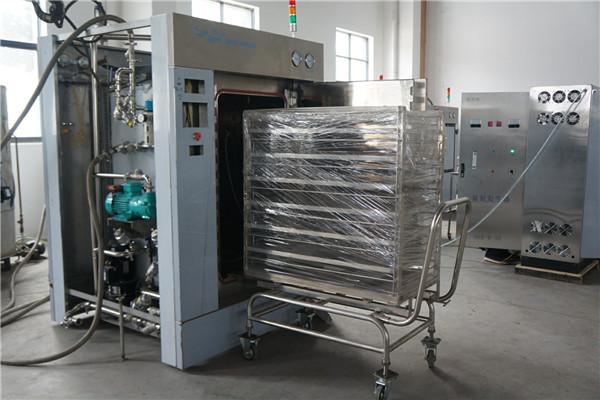

Hinge Door Pass Through Large Steam Sterilizer With Low Water Indication System
Hinge Door Pass Through Large Steam Sterilizer With Low Water Indication System
Key Features
- Chamber volume from 800 to 8000 Liters
- User-friendly HMI
- Thermal sterilization treatment sterilizes all effluent and waste liquid
- Double or single filtration systems ensure air is decontaminated before discharge
- Double door pass-through autoclave
- Autoclave chamber, piping and fittings are made from 304 stainless steel
- Interlocks protect against passage of contaminated materials
- Bio-shield barrier hermetically seals between the differently qualified zones
- Double door pass-through autoclave
- Hinge door with automatic locking
- Minimal media consumption
- SIP and integrity testing port
Description
In today’s society the need for safe bio-containment systems is increasingly important. This is especially true in the sterilization process where standard autoclaves cannot deal with the threat posed by harmful pathogens and other contaminated materials that are emitted from BSL3/4 laboratories.
Specifications
|
Model |
Chamber Size |
Overall Size |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MDL-0.8 |
610*910*1450 |
1500*1900*1790 |
35 |
80 |
3 |
|
MDL-1.0 |
680*1180*1250 |
1600*2000*1590 |
40 |
100 |
4 |
|
MDL-1.2 |
680*1180*1500 |
1600*2000*1840 |
45 |
120 |
4 |
|
MDL-1.5 |
680*1180*1870 |
1600*2000*2210 |
50 |
150 |
4.5 |
|
MDL-2.0 |
1000*1200*1700 |
2000*2000*2040 |
60 |
200 |
4.5 |
|
MDL-3.0 |
1000*1500*2000 |
2000*2200*2340 |
90 |
300 |
5 |
|
MDL-4.0 |
1000*1500*2670 |
2000*2200*3010 |
120 |
400 |
6 |
|
MDL-5.0 |
1000*1500*3340 |
2000*2200*3680 |
150 |
500 |
8 |
|
MDL-6.0 |
1000*1500*4000 |
2000*2200*4340 |
180 |
600 |
8 |
|
MDL-8.0 |
1000*1500*5340 |
2000*2200*5680 |
240 |
800 |
12 |
Quality Standards
- ISO 9001: 2008 - Quality Management Systems
- ISO 13485: 2003 - Quality Management Systems
Our Advantages
The Large Steam Sterilizer is designed to process laboratory animal caging systems and associated equipment. Developed with the sustainable laboratory in mind, the sterilizer incorporates several features to maximize productivity, provide flexibility, and ensure safety and reliability.
Productivity
Sizes range from 0.8 cubic meters to 8 cubic meters , allowing for a full range of load sizes
Flexibility
- Full range of programs and options to manage vivariums and BSL 3 & 4 application
- Decontamination Cycles using either 0.22 micron filter
- Fully welded BioSeal suitable for BSL 3 & 4 applications
Reliability
304 stainless steel chamber construction with 304 Stainless Steel full jacket for long life and excellent performance
