Floor standing Large Waste Autoclaves With Temperature Sensors For CSSD
Floor standing Large Waste Autoclaves With Temperature Sensors For CSSD
Key Feature
- 1500 to 8000 Liter autoclave chamber volume
- High volume waste treatment
- Pre and post vacuum pump
- User-friendly PLC control system
- 5.7 inch color touch screen
- Shut & downwards closing (motorized hinge door)
Functions
- Icon driven menus
- Password security system (3 levels )
- New customized Cycle Creation and Storage
- Editing Existing Cycles
- Data Archive
- Print Current Cycle
- Fault identification
- Delayed Start (optional)
- Safety Valve Testing (optional)
Controller Software
- PLC language Basic
- Key and password security system (Multi levels)
- Easy cycle construction using individual stages.
- Multi Level: User / Supervisor / Engineer Interface
Sensors And Transducers
- Temperature sensors will be connected to the autoclave to monitor temperatures at the following locations:
Chamber Vent Temperature
Load Temperature (Flexible Probe for liquid waste)
- Temperature sensors will be duplex where necessary. The elements of the probes will be utilized independently for the autoclave control system and the data logging system.
- Pressure transmitters will be connected to the autoclave at the following locations:
Chamber
Jacket
Water (Optional)
Compressed Air (Optional)
Steam (Optional, if fitted)
Model Chart
Model | Chamber Size | Overall Size | Net Weight | Steam | Water | Power |
W*H*D mm | W*H*D mm | Kg | Kg/cycle | Kg/cycle | KVA | |
MD-1.5 | 680*1180*1870 | 1600*2000*2210 | 2150 | 50 | 150 | 4.5 |
MD-2.0 | 1000*1200*1700 | 2000*2000*2040 | 2400 | 60 | 200 | 4.5 |
MD-3.0 | 1000*1500*2000 | 2000*2200*2340 | 2950 | 90 | 300 | 5 |
MD-4.0 | 1000*1500*2670 | 2000*2200*3010 | 3600 | 120 | 400 | 6 |
MD-5.0 | 1000*1500*3340 | 2000*2200*3680 | 4500 | 150 | 500 | 8 |
MD-6.0 | 1000*1500*4000 | 2000*2200*4340 | 5300 | 180 | 600 | 8 |
MD-8.0 | 1000*1500*5340 | 2000*2200*5680 | 6900 | 240 | 800 | 12 |
Materials
Chamber | STEEL |
|
304 L stainless steel | STANDARD | |
316 L stainless steel |
| |
Jacket | STEEL |
|
304 L stainless steel | STANDARD | |
316 L stainless steel |
| |
Door internal side | STEEL |
|
304 L stainless steel | STANDARD | |
316 L stainless steel |
|
Features And Benefits
1. No Pre-Treatment Handling Risks

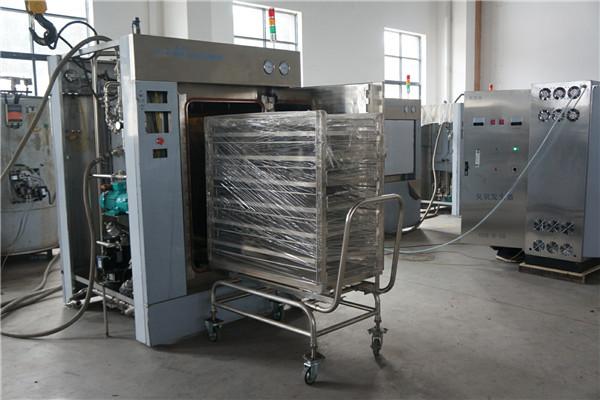

The System utilizes autoclavable carts that can eliminate employee handling of untreated waste from point of generation to final disposal.
2. Capital Cost
The Sterilizer is by far the least expensive medical waste treatment system available.
3. Sterilizers Available For Any Size Facility
Units are capable of treating 100 to 1,125 lbs. or more per cycle.
4. Least Complicated To Operate
Some companies actually require the hospital to send engineers to the factory for training. The Sterilizers require nothing more than a brief in-service training period at the site following installation.
5. Simple To Install
The Sterilizers are usually installed by hospital personnel, or local equipment contractors.
6. Equipment Design Unchanged
There is no need to be concerned that the system will soon be out of date, making it difficult to obtain parts and repairs.
7. Utility Consumption
Most Medpharm Sterilizers use existing low cost readily available hospital steam supply.
8. Steam Sterilization Vs Disinfection
Because of the National and World focus on the spread of infectious disease, the eradication of all microbial life in the waste stream is imperative. The Sterilization process is the best assurance the hospital can have for proper spore kill.
Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
