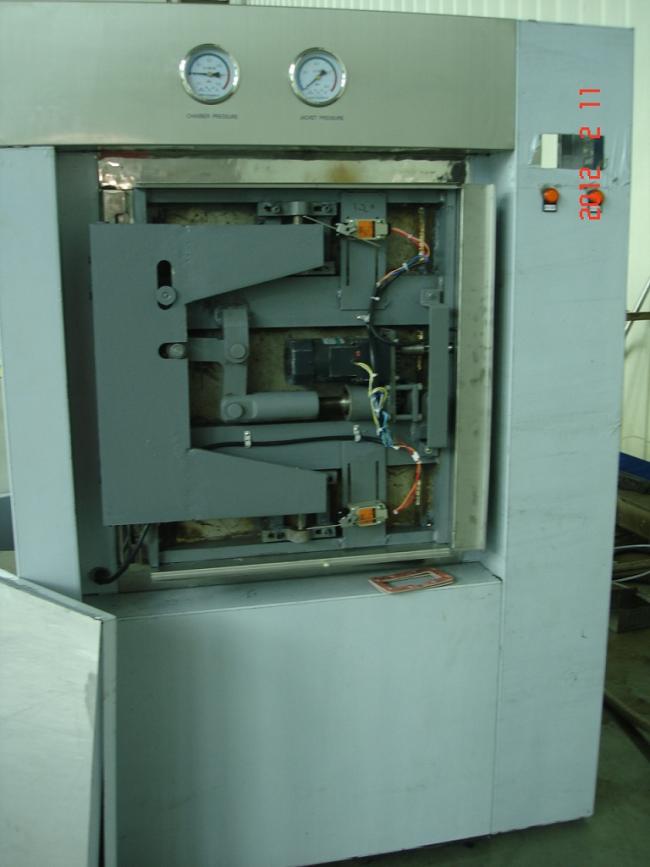

Fully Automatic Processing Large Steam Sterilizer with Single motor-drive door
Fully Automatic Processing Large Steam Sterilizer with Single Motor-drive Door
Features
- Easy to use – one touch operation.
- Large capacity – 1200 liters.
- Highly customizable – with a wide range of accessories and options.
- Fast and economical – sterilization cycles with advanced water and energy saving systems.
- Safety material – AISI 304 chamber and jacket, stainless steel piping system
- Best solution – for hospital CSSDs, pharmaceutical and biotechnological applications.
Chamber Drain System
Drain system is designed to prevent pollutants from entering into the water-supply system and sterilizer.
The automatic condensing system, consisting of a heat exchanger, converts chamber steam to condensate and disposes condensate to waste. Water supply shutoff valve is located in the recessed area of the unit.
Vacuum System
Water-ring vacuum pump reduces chamber pressure during prevacuum and post-drying phases.
Air is drawn from the chamber through the vacuum system. Following the dry phase, chamber vacuum is relieved to atmospheric pressure by admitting air through a bacteria-retentive filter.
Steam Source
Sterilizers are piped, valved and trapped to receive building supplied steam delivered at 50 to 80 psig (3.5 to 5.6 bar) dynamic. Standard steam piping is constructed of stainless steel and includes a shutoff valve, separator and a pressure regulator. (An optional, integral electric steam generator is also available.)
Piping
All piping is located on a modular plumbing rack (stand).Plumbing stand can be located on either side of the sterilizer.Piping comes in stainless-steel (standard), but is available in copper/brass (optional).
Main Parameters
|
Model |
MD-1.2 |
|
Door number |
Double door |
|
Door type |
Motorized Hinge Door |
|
Chamber volume |
1200 liters |
|
Chamber Size |
680*1180*1500mm |
|
Overall Size |
1450*2000*1840mm |
|
Net Weight |
1950kg |
|
Steam |
45Kg/cycle |
|
Water |
120Kg/cycle |
|
Power(KVA) |
4KVA |
|
Sterilization temperature rage |
105°C to 134°C |
|
Sterilization time rage |
0---99 minutes |
|
Vacuum times |
0---9 times |
|
Drying time |
0---99 minutes |
Applications
This series hospital sterilizer are designed and manufactured specially for hospital CSSD,
operating room to sterilizing medical instruments, sterile clothing, dressings, vessels,apparatuses,
operating tools, culture medium etc.
