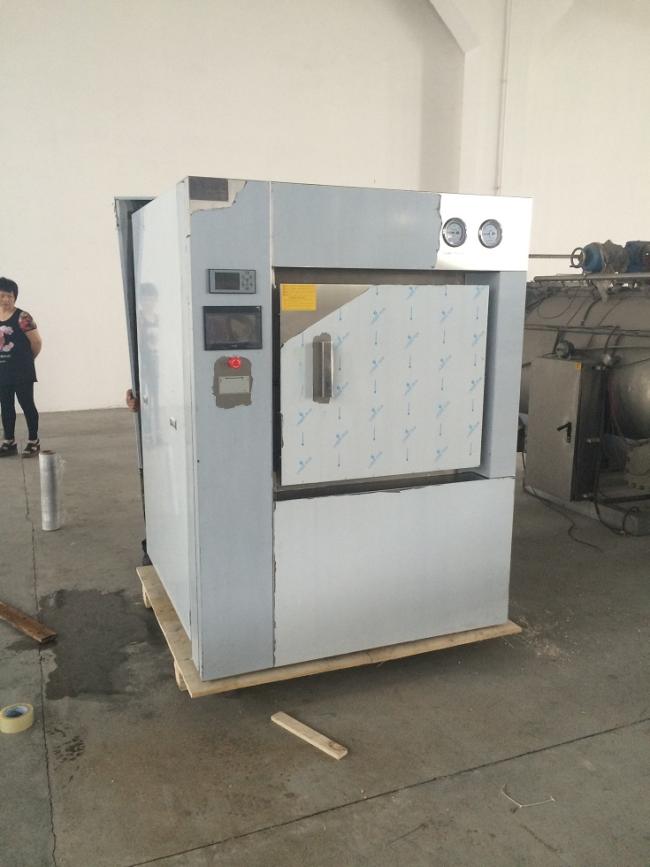

Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter
Mechanical Hinge Single Door Pharmaceutical Autoclave With 0.2μm Membrane Type Air Filter
Features
- Chamber volume: 1200 liters
- Free standing single doors
- Motorized hinge doors effortless pneumatically operated;
- Hydraulic components made of high corrosion resistant 304 stainless steel;
- Internal high-efficiency jacket by SS304 unique door closing system with pneumatic activated gasket seal for perfect airtight, safety and maximum reliability;
- Ergonomic loading height;
- Operation of the unit from both ends by operator panel and display fitted on loading side;
Door Safety
The autoclave door is designed with a number of independent mechanical and digital safety features. This guarantees that if a problem occur, an autoclave failure will be prevented.
- A safety device prevents the operator from opening the door when chamber is pressurized
- Steam is not allowed into the chamber when the door is open
- A cycle cannot start if the door is open or not properly locked
- The door cannot unlock until chamber pressure reaches room pressure
- The motorized hinge door progress will automatically stop if an obstruction is detected
Engineered With People In Mind
Our autoclaves are built to last longer, perform consistently, and comply with the strictest international standards. Autoclave chambers are constructed of long lasting 304 grade tainless steel with superior corrosion resistance. The chambers are jacketed for uniform heat distribution. The generator and piping are constructed of stainless steel. The pneumatic valves are air pressure operated, significantly reducing maintenance. We work to keep our autoclaves state of the art.
Applications
This series hospital sterilizers are designed and manufactured specially for hospital, pharmaceutical factory to sterilizie medical instruments, sterile clothing, dressings, vessels, apparatuses, tools, culture medium etc.
Main Parameters
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MD-0.24 |
600*600*670 |
1500*1800*1010 |
700 |
20 |
30 |
2 |
|
MD-0.36 |
600*600*1000 |
1500*1800*1340 |
800 |
25 |
40 |
2 |
|
MD-0.6 |
610*910*1170 |
1500*1900*1510 |
1250 |
30 |
60 |
3 |
|
MD-0.8 |
610*910*1450 |
1500*1900*1790 |
1400 |
35 |
80 |
3 |
|
MD-1.0 |
680*1180*1250 |
1600*2000*1590 |
1550 |
40 |
100 |
4 |
|
MD-1.2 |
680*1180*1500 |
1600*2000*1840 |
1950 |
45 |
120 |
4 |
|
MD-1.5 |
680*1180*1870 |
1600*2000*2210 |
2150 |
50 |
150 |
4.5 |
|
MD-2.0 |
1000*1200*1700 |
2000*2000*2040 |
2400 |
60 |
200 |
4.5 |
|
MD-3.0 |
1000*1500*2000 |
2000*2200*2340 |
2950 |
90 |
300 |
5 |
|
MD-4.0 |
1000*1500*2670 |
2000*2200*3010 |
3600 |
120 |
400 |
6 |
|
MD-5.0 |
1000*1500*3340 |
2000*2200*3680 |
4500 |
150 |
500 |
8 |
|
MD-6.0 |
1000*1500*4000 |
2000*2200*4340 |
5300 |
180 |
600 |
8 |
|
MD-8.0 |
1000*1500*5340 |
2000*2200*5680 |
6900 |
240 |
800 |
12 |

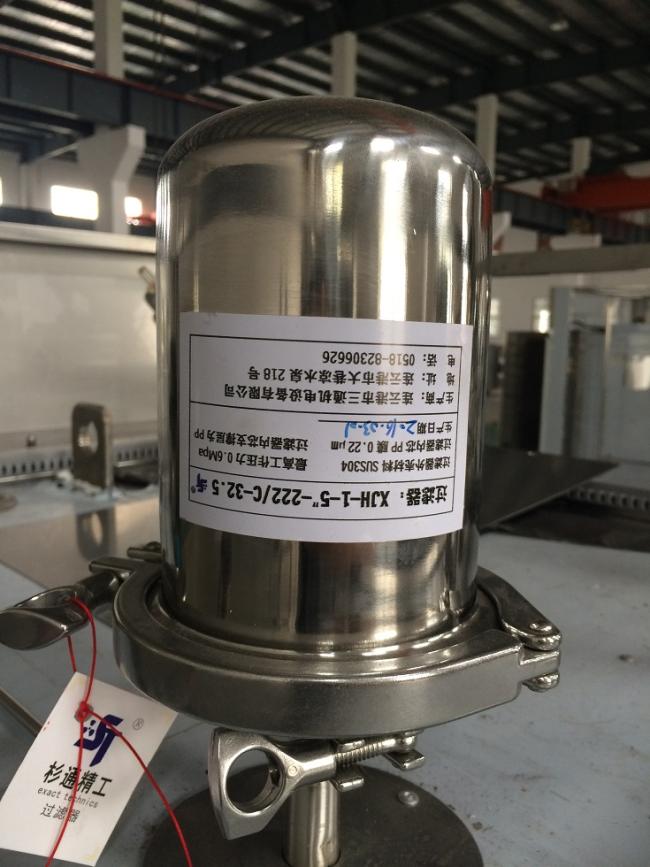

Air filter
Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
