304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System


304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System

Product Characteristics

- Chamber material and pipe work 316L stainless steel
- Fully jacketed chamber,Rectangular chamber
- Vertical opening doors

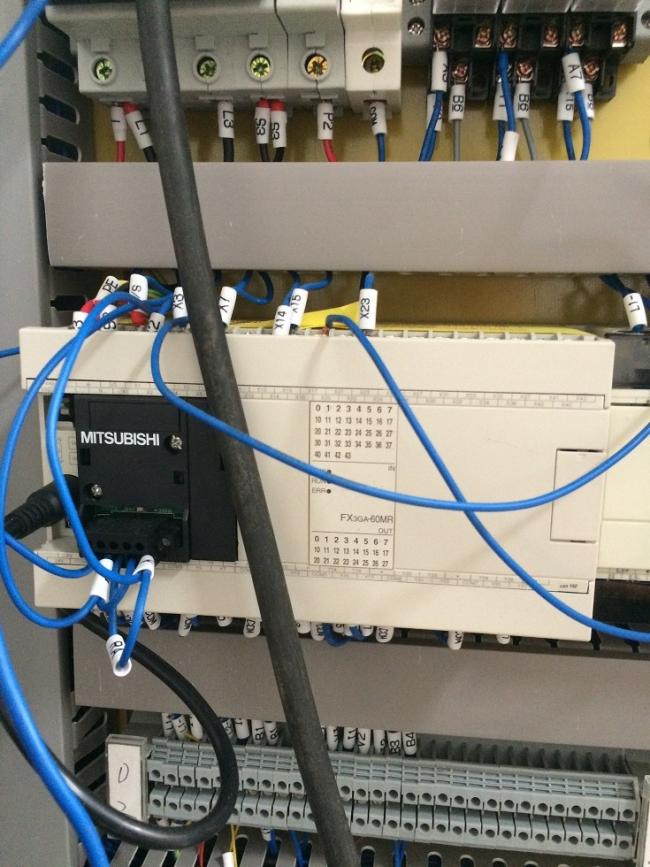

- PLC control with user-friendly HMI
- 5.7” high resolution color touch screen
- External USB connection for data download (on loading side)
- Built-in printer on loading side
- Independent temperature probe (chamber)
- Pneumatic valves
- 0.22 Micron Air filter
- Pressure gauges for jacket, chamber, steam generator (loading side), chamber (unloading side)
- Water level indicator for steam generator
- Safety temperature switch for door opening
- Doors equipped with safety bumper for workers safety
- Acoustic signal for end cycle and alarms
- Programmable timer start for test cycles
- Sanitary piping with Tri-clamp

Description

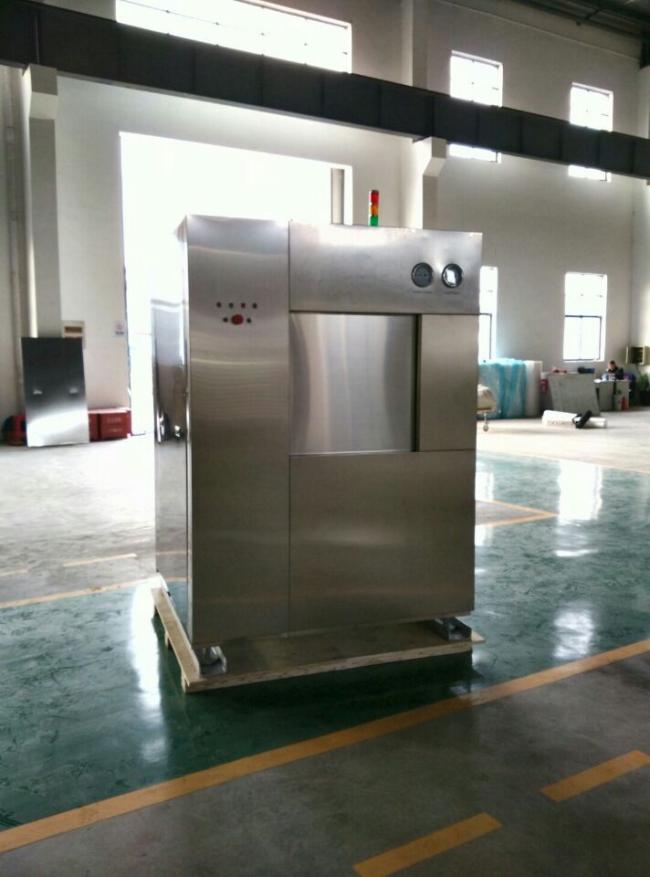

cGMP Pharmaceutical autoclave with fully automatic sliding doors designed to conform to
end-user requirements using steam as the sterilizing agent, appropriate for pharma production
and quality assurance processes. The autoclave chamber volume is 240 liters.

Specifications


User- friendly HMI
The Human Machine Interface (HMI) has been designed with the following considerations

• Multi-color display for easy reading
• Easy operation
• Quick access to important information
• Multiple languages
• Built-in view of historical cycle data
• Graphical display of Temperature and Pressure trend graphs


Quality Standards


• cGMP
• ISO 9001:2008 - Quality Management Systems
• ISO 13485: 2012 Quality Management System






Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
