Pre vacuum And Post Vacuum Phase Hospital Steam Sterilizer With Digital Display Window
Pre vacuum And Post Vacuum Phase Hospital Sterilizer With Digital Display Window
Features
User friendly control panel
Frontal service door realized in one single stainless steel AISI 304 panel
Base equipped with proper guides for an easy and safe sliding of the autoclave
Height adjustable feet enabling an easy floor levelling of the autoclave
Possibility to have the technical area on the left or on the right side of the autoclave
Process piping made of stainless steel AISI 304 with tri-clamp fittings
Water-ring vacuum pump
Main Parameters
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MD-0.8Y |
680*1180*1000 |
2200*2000*1410 |
1480 |
35 |
80 |
3 |
|
MD-1.0Y |
680*1180*1250 |
2200*2000*1660 |
1630 |
40 |
100 |
4 |
|
MD-1.2Y |
680*1180*1500 |
2200*2000*1910 |
2030 |
45 |
120 |
4 |
|
MD-1.5Y |
680*1180*1870 |
2200*2000*2280 |
2230 |
50 |
150 |
4.5 |
|
MD-2.0Y |
1000*1200*1700 |
2800*2000*2110 |
2490 |
60 |
200 |
4.5 |
|
MD-3.0Y |
1000*1500*2000 |
2800*2200*2410 |
3050 |
90 |
300 |
5 |
|
MD-4.0Y |
1000*1500*2670 |
2800*2200*3080 |
3700 |
120 |
400 |
6 |
|
MD-5.0Y |
1000*1500*3340 |
2800*2200*3750 |
4600 |
150 |
500 |
8 |
|
MD-6.0Y |
1000*1500*4000 |
2800*2200*4410 |
5400 |
180 |
600 |
8 |
|
MD-8.0Y |
1000*1500*5340 |
2800*2200*5750 |
7000 |
240 |
800 |
10 |
Description
- Ideal hospital sterilizers for OR, CSSD, surgical centers, and sterile processing departments
- Horizontal sliding door for stable and easy operation

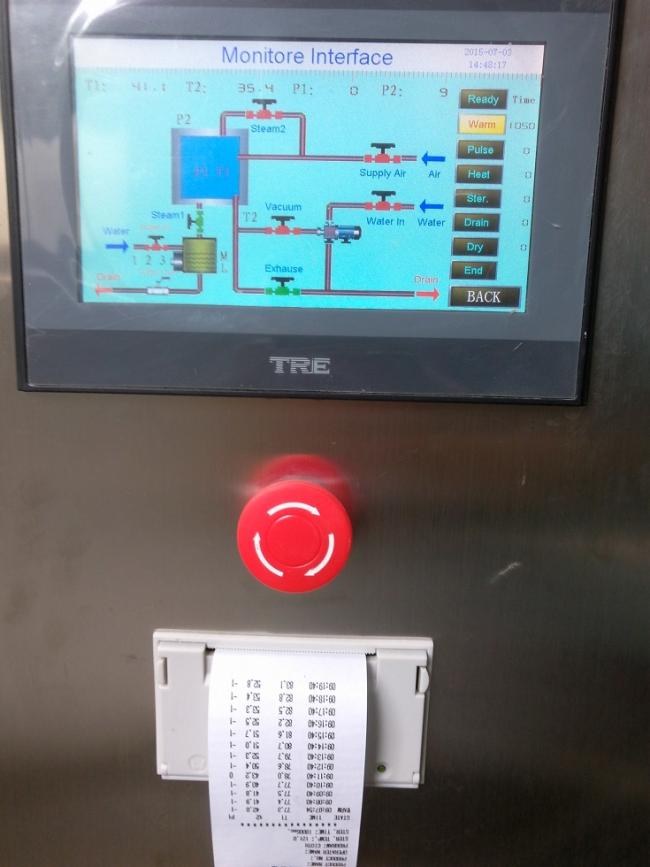

- Touch screen technology for high user interaction
- Possibility to have the technical area for easy maintain on the left or on the right or both sides

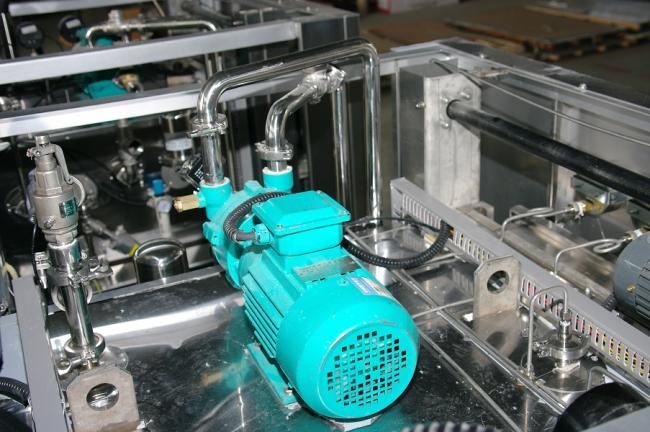

- High effective liquid-ring vacuum pump for saving energy
- Excellent ergonomics together with well-adapted accessories
- Integrated automatic PLC control system with one key operation function
- High quality chamber with fine polished of quality stainless steel
- Flexible loading system suitable for various goods requirements
- Customized orders are available
- Accessories
- Loading racks and transport carts
- Automated load and unload modules
- Ergonomic working and loading position
Applications
Textiles, instruments, rubbers. Process cycle and programmed customized.
Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
