Compliance With GAMP 5 Guidelines Lab Autoclave Sterilizer With Multilevel User Access Control

Compliance With GAMP 5 Guidelines Laboratory Autoclave With Multilevel User Access Control

Specifications

1. MD-0.8Y laboratory sterilizer outside size (W*H*D): 220*200*141cm
2. Inside chamber size (W*H*D):68*118*100cm
3. Net weight:1480kg
4. Power:3KVA,AC380,50HZ,three phases
5. Standard operating parameters
6. Pressure: Max 3,5 abs. bar(350kPa)
7. Temperature: Max 139℃ (412K)

Main Parameters

Description

• Big, colour, tilting control panel “touch-screen” with maximal operating and service comfort
• Water-ring, high-performance, vacuum pump for short charges times, quick and accurate cyclem processing
• Unique, patented, double chamber jacket with an independent and stable preheating for economical operation and low media consumption.
• The device is produced from a high-quality stainless steel inclusive the solid, divided frame for the long-term lifetime and reliability.
• Thermal deaeration for higher operation reliability.
• Motoring horizontal sliding door.
• Ergonomic adjustable position of the touch control panel placed outside the Thermally exposed zone secures.
• The high quality readability and easy operating personnel work regardless the figure height forms simplicity and usefulness, high-quality surface of stainless-steel facing sheets enables the perfect hygiene.
• Facing sheets, reinforced by divided, stainless steel frame grant the noiseless operation and
• extended device lifetime.
• Manual and transporting and loading system guaranties the easy operating personnel work with sterilizing material.
• Maximally effective use of internal sterilizing area.

Applications

1. Empty and filled glassware( e.g. vials, ampoules ,bottles )
2. Stoppers and rubber material
3. Inox equipment, instruments, machine parts
4. Filters and respective accessories
5. Textiles
6. Cage, beddings, feedstuffs and other products used at animal

Competitive Advantage

1. Chamber volume from 800 to 8000 liters
2. Microprocessor control, simple and clear operation
3. Wide offer of sterilization programs
4. Working temperature: 105 °C to 134 °C
5. Individual job-order manufacture
6. Research, industry area and laboratorie

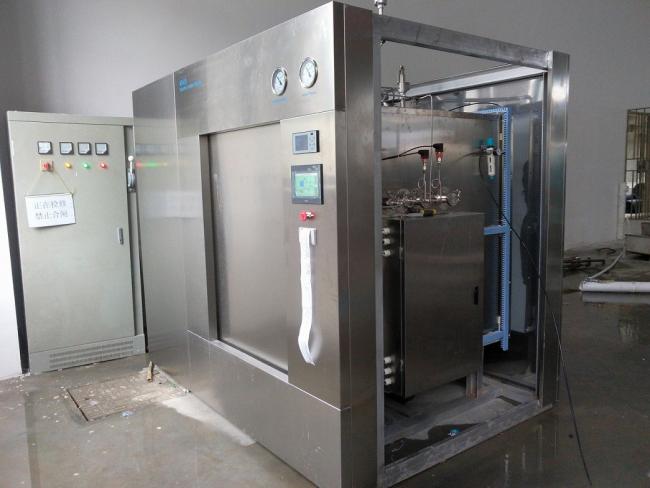

Medpharm MD-0.8Y laboratory sterilizer

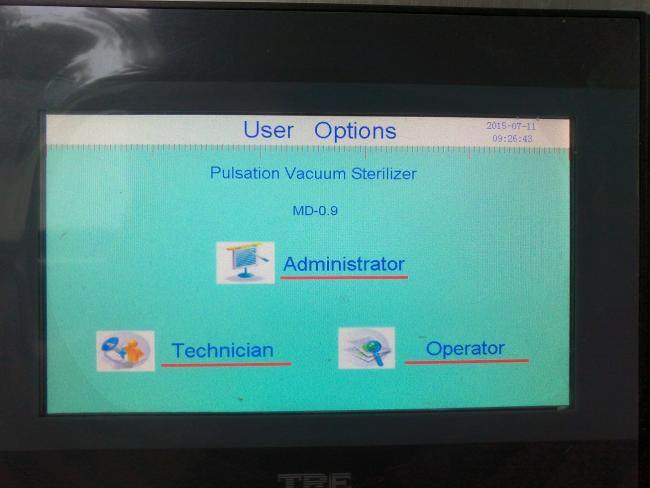

User control

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
