Superheated Water Medical Autoclave With Level Sensor And Alarm In Chamber

Superheated Water Pharmaceutical Autoclaves With Level Sensor And Alarm In Chamber

Specifications

1.Homogeneous temperature distribution because of highly engineered water distribution into the chamber

2.Short batch time because high performance circulation pumps and heat exchangers

3.Low media consumption because of a water storage system

4.Time or F0 based sterilization

5.Installed direct on a floor or pit mounted

6.All models are equipped with horizontal doors for easy loading/unloading of the chamber,

easy maintenance access and safety from hot surfaces when the door is open

Durable construction

1.A cylindrical single-wall chamber with rectangular door/s both made entirely from 304

stainless steel providing highest corrosion resistances.

2.The doors are automated, typically of horizontal sliding motion, powered by pneumatic

cylinders. Chamber is sealed by means of an O-ring silicone gasket, lodged inside a machined

groove in the frame, which does not require lubrication

Hygienic design

1. Chamber and door inner surfaces are mechanically polished to Ra ≤ 0.64 μm giving

mirror appearance.

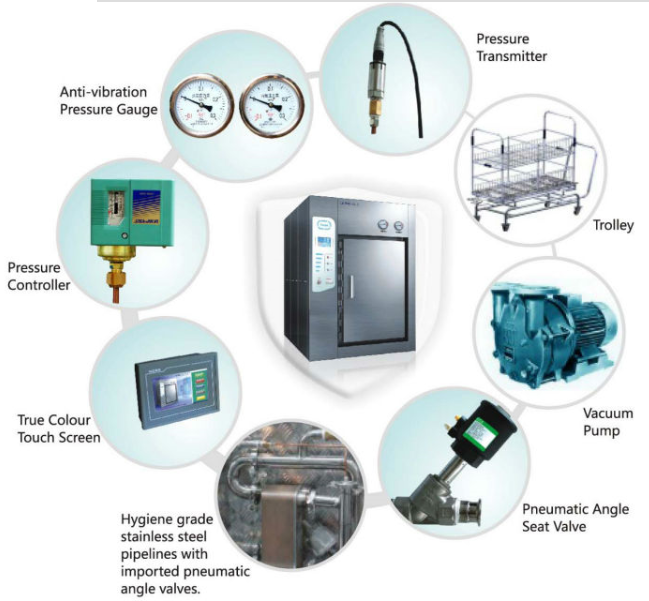

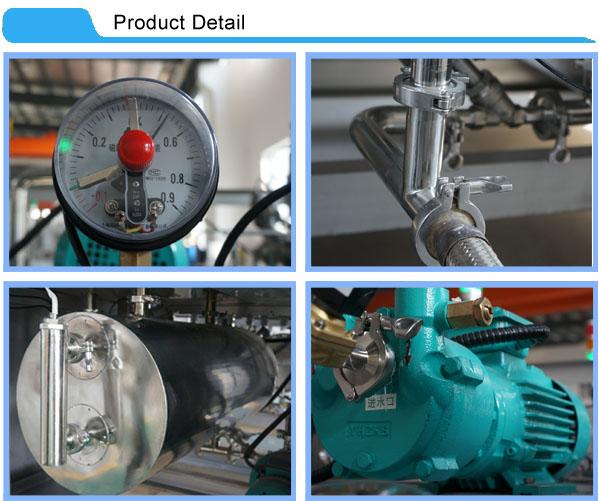

2. All components and pipe work parts such as valves, heat exchangers, pumps, filters,

fittings, gaskets, etc. are supplied with quality certificates, according to current standards in

sanitary installations and they are designed and installed for proper maintenance

and long life cycles. I.e. pneumatic-operated valves, Tri-Clamp type connections and process

tubing made of stainless steel 304

Applications

Solutions in plastic metering containers, in cans with flip-off or threaded closures

Large volume parenterals in glass containers, rigid or semi-rigid plastic, flexible plastic.

Safety and Ergonomic Design for Users

• The double door chambers incorporate the necessary interlocks and each door has precaution mechanisms to ensure maximum operator safety.
• The technical area is designed for ergonomic maintenance, with enough access to components and ease replacement of spares without almost using tools. Potential hot piping is insulated with chloride free mineral wool within an external stainless steel AISI 304 sheet.
• The loading and unloading handling operations can be done either manually or, when large and heavy loads have to be handled, by using automatic mechanisms. The automatic loading/unloading system consists of a bench located in front of the door, where the pallets are placed. The pallets are then introduced by a mechanical system below the bench
• Another alternative for big and heavy loads is to install the unit in a pit, thus loading height is at floor level.
