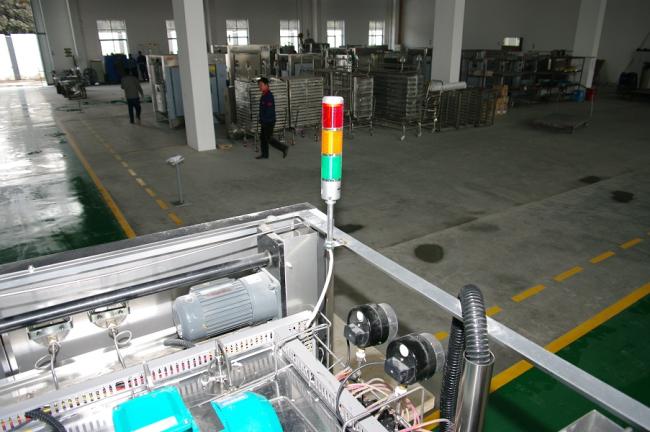

Microcomputer Controlled Veterinary Autoclave With Audible And Visual Alarms For Safety
Microcomputer Controlled Veterinary Autoclave With Audible And Visual Alarms For Safety
Specification
- The sterilizer will have a double-wall design providing for a fully jacketed pressure vessel.
- The chamber cross section will be rectangular with width and height dimensions as below
Model | Chamber Size | Overall Size | Net Weight | Steam | Water | Power |
W*H*D mm | W*H*D mm | Kg | Kg/cycle | Kg/cycle | KVA | |
MD-0.11V | 400*400*700 | 1000*1800*1040 | 650 | 14 | 215 | 2 |
MD-0.16V | 400*400*1000 | 1000*1800*1340 | 700 | 16 | 220 | 2 |
MD-0.20V | 400*400*1300 | 1000*1800*1640 | 750 | 18 | 225 | 2 |
MD-0.24V | 600*600*670 | 1200*2000*1010 | 800 | 20 | 230 | 2 |
MD-0.30V | 600*600*840 | 1200*2000*1180 | 850 | 22 | 235 | 2 |
MD-0.36V | 600*600*1000 | 1200*2000*1340 | 900 | 25 | 240 | 2 |
MD-0.45V | 600*600*1250 | 1200*2000*1590 | 980 | 27 | 250 | 2 |
MD-0.60V | 600*600*1670 | 1200*2000*2010 | 1100 | 30 | 260 | 3 |
Program Parameter
Cycle name | Further details | Application |
Instruments/Tools | 3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. | Solid materials to be sterilized: |
Clothing | 3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. | Materials to be sterilized from which air can’t be easily displaced |
User Programmable | All preset parameters can be reset; Multiple customized programs can be set and stored by user. | Customized |
Test programs | ||
B-D Test | 3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. | Test program |
Vacuum Leakage Test | Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. | Test program |
Description
- The vessel material will be non-laminated solid stainless steel plate/sheet.The chamber, head-ring and door plate material will be 304 SS.
- In the open position, the insulated door shall be secured behind a panel preventing the operator from contact with hot surfaces.
- An interlock will prevent cycle start unless door is closed and locked.
- The frame will be enamel coated and fitted with adjustable legs on floor pads. The fascia and side panels will be 16-gauge, type 304 stainless-steel, removable for easy service access.
- Microcomputer will offer a selection of eight (8) separate programs for the sterilization of wrapped goods, hard-goods, liquids and test cycles. Cycle parameters may be set by the user and are adaptable to a wide range of products. Alarms are actuated, displayed and printed
- Cycle process parameters will be displayed and recorded throughout the cycle. A side-mounted control panel and a thermal printer dot-matrix technology, with no moving parts in the print head, and 32 characters per line printing.
Applications
Liquids in open or vented containers and widely used in pharmaceutical factories.
Competitive Advantage
Counterbalanced vertically operating door will be operable with minimal hand pressure and will operate within the overall dimensions of the sterilizer frame.
