Over Temperature Protection Hospital Steam Sterilizer With Automatic Loading And Unloading System
Over Temperature Protection Hospital Steam Sterilizer With Automatic Loading And Unloading System
Specification
|
Model |
Chamber Size |
Overall Size |
Net Weight |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MD-0.8Y |
680*1180*1000 |
2200*2000*1410 |
1480 |
35 |
80 |
3 |
|
MD-1.0Y |
680*1180*1250 |
2200*2000*1660 |
1630 |
40 |
100 |
4 |
|
MD-1.2Y |
680*1180*1500 |
2200*2000*1910 |
2030 |
45 |
120 |
4 |
|
MD-1.5Y |
680*1180*1870 |
2200*2000*2280 |
2230 |
50 |
150 |
4.5 |
|
MD-2.0Y |
1000*1200*1700 |
2800*2000*2110 |
2490 |
60 |
200 |
4.5 |
|
MD-3.0Y |
1000*1500*2000 |
2800*2200*2410 |
3050 |
90 |
300 |
5 |
|
MD-4.0Y |
1000*1500*2670 |
2800*2200*3080 |
3700 |
120 |
400 |
6 |
|
MD-5.0Y |
1000*1500*3340 |
2800*2200*3750 |
4600 |
150 |
500 |
8 |
|
MD-6.0Y |
1000*1500*4000 |
2800*2200*4410 |
5400 |
180 |
600 |
8 |
|
MD-8.0Y |
1000*1500*5340 |
2800*2200*5750 |
7000 |
240 |
800 |
12 |
Program Parameter
|
Cycle name |
Further details |
Application |
|
Instruments/Tools |
3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. |
Solid materials to be sterilized: |
|
Clothing |
3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. |
Materials to be sterilized from which air can’t be easily displaced |
|
User Programmable |
All preset parameters can be reset; Multiple customized programs can be set and stored by user. |
Customized |
|
Test programs |
||
|
B-D Test |
3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. |
Test program |
|
Vacuum Leak Test |
Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. |
Test program |

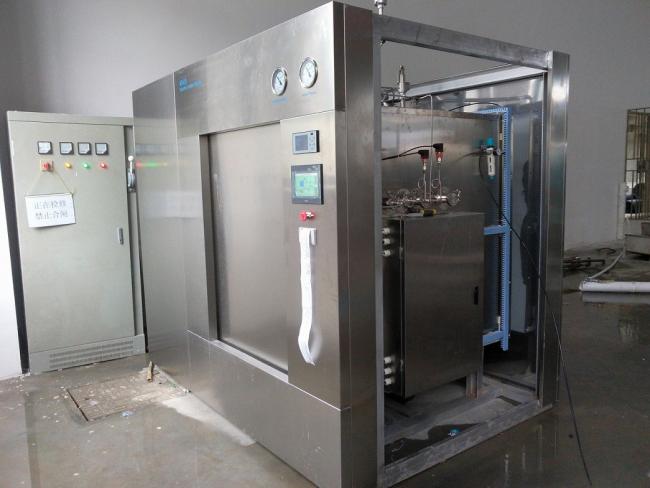

Description
- All sterilizer models are available in single-door and double-door versions
- Horizontal sliding door(-s)
- Rectangular chamber, completely made of stainless steel AISI316L .
- Water-ring vacuum pump
- A wide range of parameter adjustment is available for each program
- Colour touch screen display indicating in real time:
- Cycle phases and parameters, both in the numerical and trend form
- Anomalies, alarms
- Main components maintenance status
- Output of sterilization parameters on the built-in printer
- Chamber door cannot be opened when chamber is pressurized
- Two chamber doors cannot be opened simultaneously
- A cycle cannot start if the door is open or not properly locked
- Archiving of sterilization parameters that can be viewed on a computer and printed out as tables
- Reminders for service on LCD monitor
Applications
• Packaged instruments
• Empty glass containers
• Empty metal containers
• Textiles
• Rubber articles
Competitive Advantage
Well thought-out designs and the professionalism of our experts guarantee high-tech
chamber construction.
The high quality level is based on facts: ruggedness of the doors and their actuating system, precision groove for guidance of the solid silicone seal with a long service life, use of high-quality materials in conjunction with ultra-modern production technology.

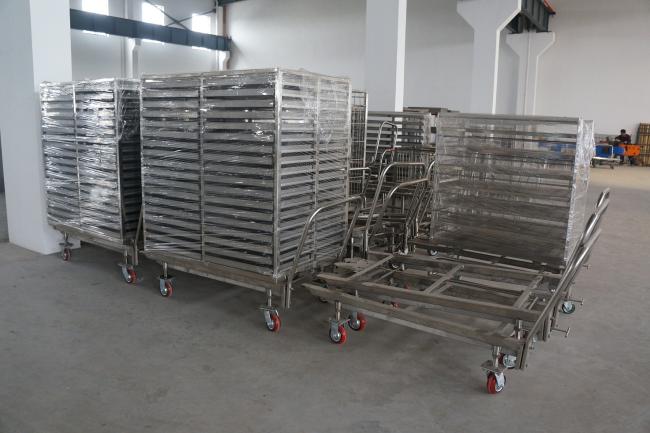

Automatic loading and unloading system.
An entire series of modular elements is available for a largely automated operation of the sterilizer: automatic loading and unloading units, with or without accumulating sections of various sizes and return locks of either single or two-door design.
