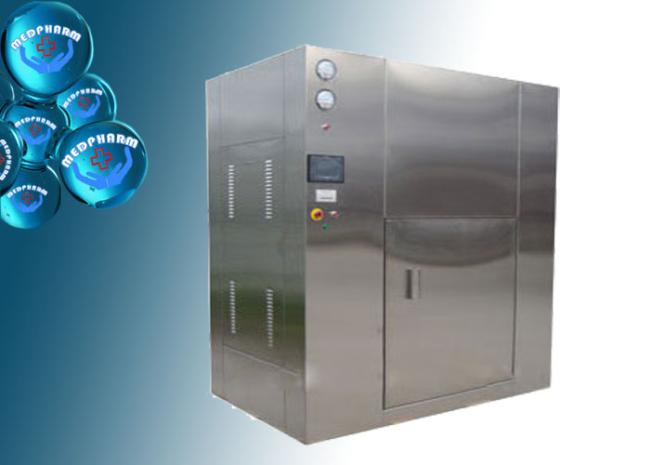

Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory
Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory
Brief
Dry Heat Sterilizers are trusted by professionals including those in medical and dental offices, nail salons, spas and salons, electrology offices, laboratories and tattoo and piercing shops.
The dry heat method is considered advantageous because it's one of the most reliable ways to sterilize items without causing any corrosion to metal equipment. In addition to eliminating any rust and corrosion from forming, they protect instrument sharpness.
Dry heat sterilizers are also known as hot air sterilizers and non-toxic and completely environmentally friendly.
Features
- Pyrogen-removing and dry heat sterilization are the best primary function.
- The perfect 100 grade laminar flow purifying system compliance with the cGMP regulations.
- PLC Intelligent control system with touch screen HMI to ensure the stable performance and easy friendly operation.
- Flexible loading system designed according to your special certain items to ensure not only the heating even distribution in the chamber, but the maximum loading capacity as well.
- Flexible special design offered for you, considerable according to your total equipments layout space and technical requirements, saving not only space, but energy and cost as well
- Best total solution as per your requirements in details and compliance with cGMP regulations.
Parameters
|
Model |
Volume |
Chamber Size |
Overall Dimension |
Heating Power |
Cooling Water |
|
M3 |
W*H*D mm |
W*H*D mm |
KW |
KG/batch |
|
|
DMH-0.29 |
0.29 |
600*700*700 |
1620*1720*1160 |
9 |
150 |
|
DMH-0.63 |
0.63 |
600*700*1500 |
1620*1720*1960 |
15 |
180 |
|
DMH-1.2 |
1.2 |
1000*1200*1000 |
2100*2300*1460 |
22 |
200 |
|
DMH-1.5 |
1.5 |
1000*1500*1000 |
2100*2600*1460 |
25 |
220 |
|
DMH-1.8 |
1.8 |
1000*1500*1200 |
2100*2600*1660 |
28 |
250 |
|
DMH-2.0 |
2.03 |
1000*1500*1350 |
2100*2600*1810 |
30 |
300 |
|
DMH-3.0 |
3 |
1000*1500*2000 |
2100*2600*2460 |
45 |
400 |
|
DMH-4.0 |
4.05 |
1100*1600*2300 |
2200*2700*2760 |
55 |
550 |
|
DMH-5.0 |
5.04 |
2000*1400*1800 |
3100*2500*2260 |
70 |
750 |
Applications
DMH series double door dry heat sterilizers are applicable to the bacteria-killing, pyrogen-removing and dry sterilization of solid items such as Glassware, Metal trays, Containers and metal materials, Machine accessories used in production, Basic biopharmaceutical products which can withstand dry heat treatment at high temperatures.
Advantages
Microprocessor Control System: specially developed for laboratory autoclaves. From simple cycles to fully featured multi-program operation with printed records, this unique control system allows unrivalled flexibility.
Multi-Program Memory: Simply press the program number required to restore all your settings. 5 program versions are available.
Brochure load down from here
