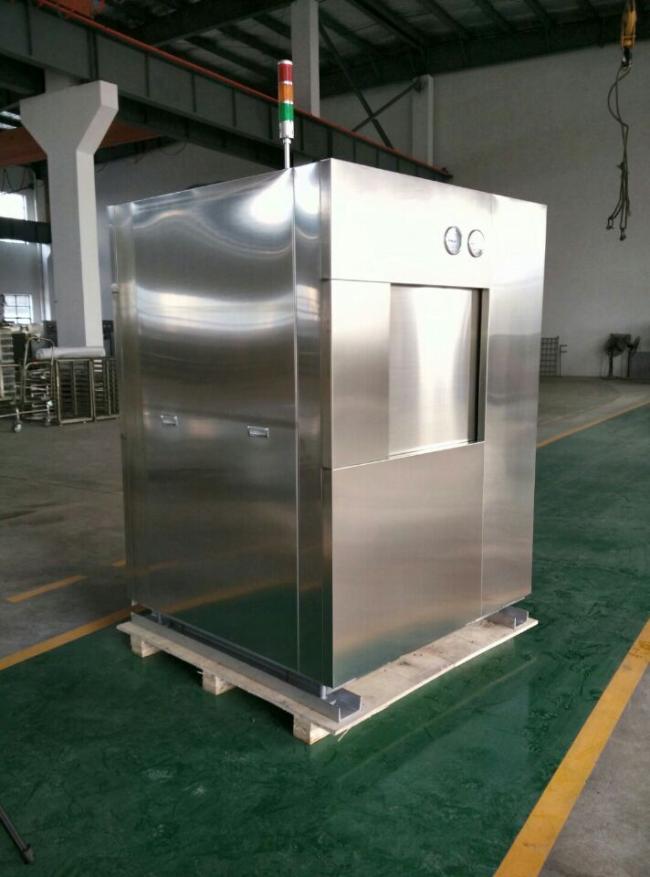

Colored Touch Screen Pass Through Lab Autoclaves With Low Power Consumption

Colored Touch Screen Pass Through Lab Autoclaves With Low Power Consumption

Why Our Pass Through Autoclave?

• Low maintenance cost
• Reliable performance of the sterilization operation
• Easy to operate
• Low power consumption

Operating Parameters

  Sterilization temperature rage: 105 --- 134°C

  Sterilization time rage: 0---99 minutes

  Vacuum times: 0---9 times

  Drying time: 0---99 minutes

Key Features

• Inter connecting 304 stainless steel steam piping
• Pneumatically actuated Valve
• Spring loaded safety valves
• Pressure and compound gauges
• Temperature dial gauge
• S.S 304 mounting stand
• 0.22 micron Air Filter
• Pressure / Vacuum switch
• S.S control panel
• For laboratory application

PLC Control System With Color Touch Screen

All Medphram autoclaves, steam generators and effluent decontamination systems (EDS) incorporate the latest innovations in control system technology, providing color touchscreen controllers as standard throughout the range.

The control color systems are an advance in sterilization control technology, bringing together years of unrivalled experience, to produce a user friendly, fully automatic control system, to meet and exceed the expectations of the most demanding laboratories of sterilization.

Features Of Control System

Secure

•     Data Archive for up to 3,000 cycles
•     USB Connection for USB back up (requires additional lead)
•     Multiple user access levels
•     Multi-level password protection
•     User log

Flexible

•     Multi programmable controller
•     Programme new cycles
•     Modify existing cycles
•     Duplicate, modify & rename cycles
•     Cycle jump facility
•     Multiple languages
•     Delayed start facility
•     Hold warm facility
•     Default to factory settings
•     Input / output override

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
