Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type

Price Negotiable
Price: Negotiation
MOQ: 1 pc
Delivery Time: 30 working days after received your payment
Brand: Medpharm
Product Description

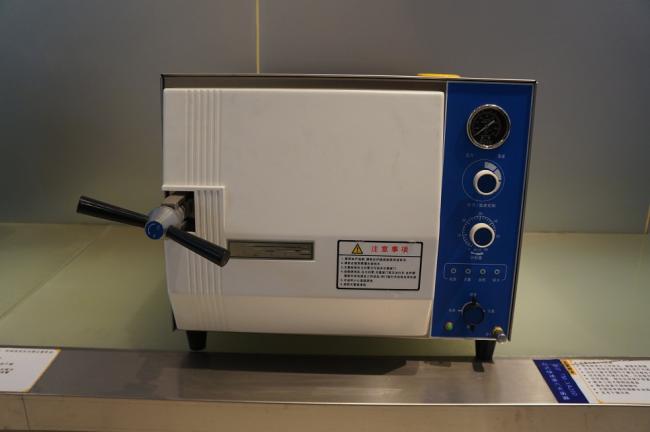

Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type



Key Features



  • 0.22 µm air filter

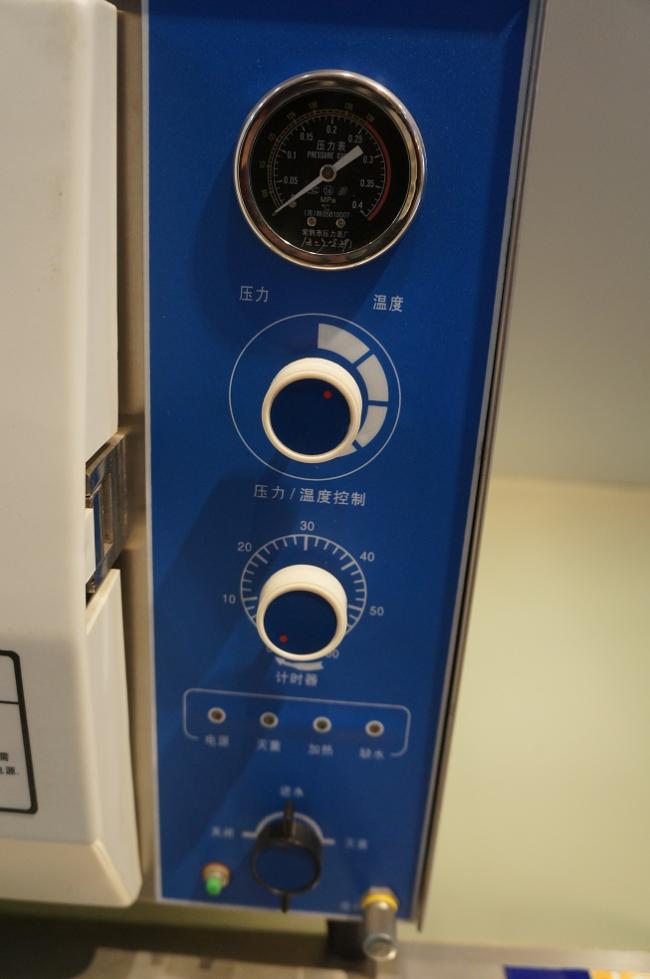

  • With adjustable timer and adjustable pressure/temperature controller
  • Automatic shut off at the end of the sterilization
  • Safe protection of water lack, over temperature, over pressure
  • Door safety locking device prevents door from opening while chamber is pressurized.



Description



The autoclave is an integral part of the veterinary practice, being at the center of the infection control process. The autoclaves use steam as the sterilizing agent—at temperatures ranging from 220° F to 275°F to completely sterilize surgical and non-surgical instruments Steam sterilization of veterinary instruments is safe and effective.



Application



Bench top veterinary autoclave for clinics, laboratories, research institutes, field hospitals or disaster relief



Specifications:



  • The chamber is made of 304 stainless steel
  • Max working pressure: 0.22MPa
  • Max working temperature: 134℃
  • Adjustment of temperature: 105---134℃
  • Adjustment of Timer: 0---60min
  • Chamber temperature difference: ≤±1℃



Model Chart:



Model

Chamber

Dimensions

Loading tray

Package Dimension

NW/GW

power

TM-XD20J

20L

(φ250 *420mm)

480*480*385mm

340*200*30mm

(3pcs)

700*580*500mm

38/43Kg

1.5KW/AC 220V,

 50/60Hz

TM-XD24J

24L

(φ250 *520mm)

580*480*385mm

400*200*30mm

(3pcs)

800*580*500mm

44/50Kg

TM-XD35J

35L

(φ300 *500mm)

730*550*510mm

400*200*30mm

(4pcs)

820*680*650mm

73/90Kg

2.7KW/AC 220V,

50/60Hz

TM-XD50J

50L

(φ340 *550mm)

770*600*540mm

500*250*30mm

 (4pcs)

880*730*700mm

86/105Kg
