360 Liters Hinge Door Autoclave And Sterilizer With Touch MHI And PLC Control System
360 Liters Hinge Door Autoclave And Sterilizer With Touch MHI And PLC Control System
The autoclave and sterilizer advantages
1. Autoclave steam sterilizer is a basic investment in hospital equipment, and manager should purchase when he has a distinct comparative chart.
2. Power consumption, tap water, steam, outlet and structure of installing site are notable.
3. On the other hand, time out between two cycles defines working speed, which means cost.
4. Hospital sterilizer has direct effect on quality of medical service, and medical staff and patient will be safety when sterilization is done well.
Sterilization Cycles
| Cycle No. | Cycle Name | Further Details |
| 1 | Instruments/Tools | 3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. |
| 2 | Clothing | 3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. |
| 3 | Liquid | 15 min exchange, expose temperature 121℃, expose time 15 min, cooling time 25 min. |
| 4 | B-D Test | 3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. |
| 5 | Vacuum Leak Test | Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. |
| 6 | User Programmable | All preset parameters can be resettable; Multiple customized programs can be set and stored by user. |
Parameters of MD-0.36 Hinge door autoclave
Model | MD-0.36 |
Door number | Single door |
Door type | Motorized Hinge Door |
Chamber volume | 360 liters |
Chamber Size | 600*600*1000mm |
Overall Size | 1350*1900*1340mm |
Net Weight | 800kg |
Steam | 20Kg/cycle |
Water | 28Kg/cycle |
Power(KVA) | 3KVA |
Sterilization temperature rage | 105°C to 134°C |
Sterilization time rage | 0---999 minutes |
Vacuum times | 0---9 times |
Drying time | 0---999 minutes |
Loading patterns | Loading plates(standard) |
Loading baskets(option) | |
Loading car and trolley(option) |

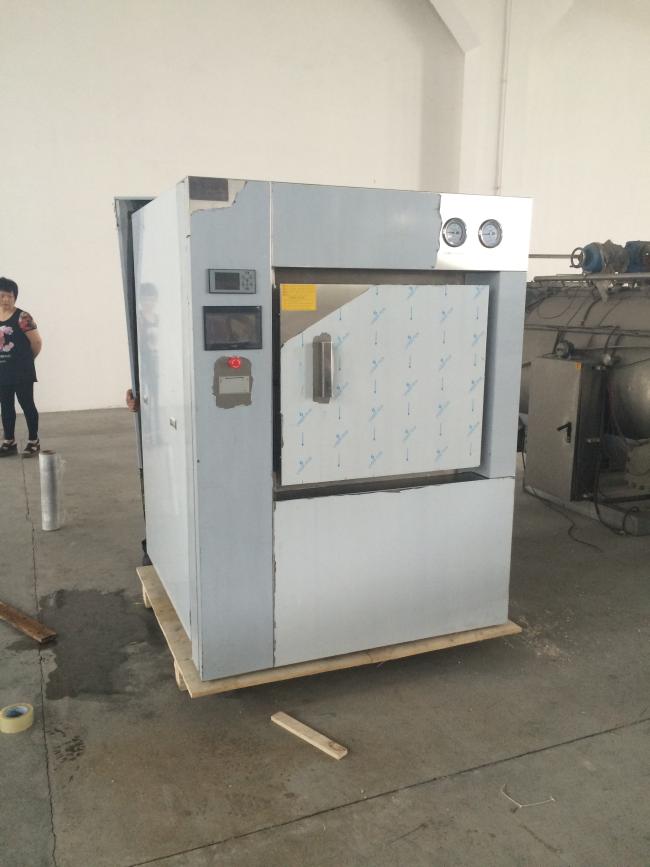

MD-0.36 Hinge door autoclave delivery to Mauritius
Brochure load down from here
