LDR Integrated Electric Heating Steam Boiler With Overheating Protection
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
within 20 working days
Brand:
Medpharm
Product Description
LDR Integrated Electric Heating Steam Boiler With Overheating Protection
1) All electrical components with CE and CCC certification to ensure product safety and service life;
2) Each group of heating component is equipped with clustered flange connection, with independent design, simple structure, high mechanical strength, which is safe, reliable and easy for replacement.
3) Control mode is flexible, which can be set to manual or automatic mode, for single machine or several machine operating together;
4) Unique power switching function, which can be adjusted according to actual steam demand;
5) Automatic operation control, with water shortage, over voltage, phase loss, overheating, leakageand other protection, which can ensure security.

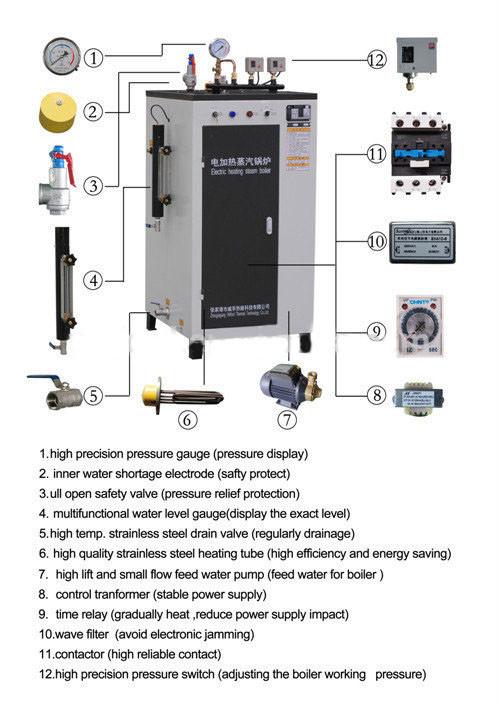

Product analysis picture :
Technical Parameter:
| Type | LDR0.1 | LDR0.15 | LDR0.2 | |
| Rated evaporation | t/h | 0.1 | 0.15 | 0.2 |
| Rated working pressure | MPa | 0.7/1.0 | 0.7/1.0 | 0.7/1.0 |
| Staturated steam temperature | ℃ | 170/193 | 170/193 | 170/193 |
| Input Power | KW | 72 | 108 | 144 |
| Input current | A | 108 | 162 | 216 |
| Power×Group | KW×P | 18×4 | 18×6 | 18×8/24×6 |
| Main valve caliber | DN | 25 | 25 | 32 |
| Safty valve caliber | DN | 25 | 25 | 25 |
| Infall caliber | DN | 20 | 20 | 20 |
| Sewage valve caliber | DN | 25 | 25 | 25 |
| Overall size L | mm | 1050 | 1100 | 1280/1150 |
| W | mm | 950 | 950 | 1150/950 |
| H | mm | 1900 | 2050 | 2100/2050 |
| Weight | kg | 280/350 | 330/400 | 450/530 |
