High Sensitivity Pressure Switch Industrial Steam Boiler Compact Vertical Shell Type
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
within 20 working days
Brand:
Medpharm
Product Description
LWS Compact Vertical Shell Type Steam Boiler With High Thermal Efficiency
Vertical shell type steam boiler:
1. Containing no water pipes or fire tubes, which is exempt from exploding of tubes
1. Containing no water pipes or fire tubes, which is exempt from exploding of tubes
2. Boiler will not burn because of scaling, which reduces the maintenance cost;
3. The upper ring large steam room and separation measures for boiler and steam below water can ensure the availability of high-quality steam;
Double W-shaped four-pass has big heat transfer coefficient and full heat exchange, low exhaust temperature, high thermal efficiency and long service life. (Patent is protected)
4. The vertical structure is compact and beautiful, which saves space and easy for installation.

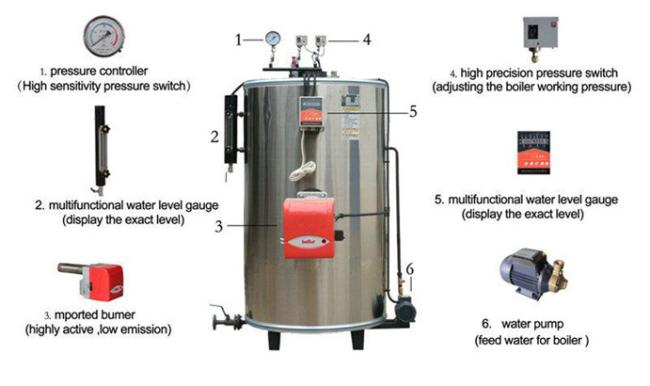

Product analysis picture :
Product analysis picture :
| Specifications | |||||||
| Type | LWS0.05-0.7 | LWS0.1-0.7 | LWS0.15-0.7 | LWS0.2-0.7 | LWS0.3-0.7 | ||
| Rated evaporation | t/h | 0.05 | 0.1 | 0.15 | 0.2 | 0.3 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | |
| Fuel consumption | Light diesel oil | kg/h | 3.5 | 7 | 10.5 | 14 | 21 |
| Natural gas | Nm3/h | 4 | 8 | 12 | 16 | 24 | |
| Liquefied gas | Nm3/h | 1.5 | 3 | 4.5 | 6 | 9 | |
| Pipeline gas | Nm3/h | 8.5 | 17 | 25.5 | 34 | 51 | |
| Main valve caliber | DN | 15 | 25 | 25 | 32 | 32 | |
| Safty valve caliber | DN | 20 | 25 | 25 | 25 | 25 | |
| Infall caliber | DN | 15 | 20 | 20 | 20 | 20 | |
| Sewage valve caliber | DN | 20 | 20 | 25 | 25 | 25 | |
| Chimney caliber | DN | 100 | 120 | 150 | 150 | 200 | |
| Overall size | L | MM | 870 | 1020 | 1150 | 1260 | 1270 |
| W | MM | 930 | 1080 | 1260 | 1400 | 1570 | |
| W1 | MM | 640 | 760 | 890 | 970 | 1040 | |
| H | MM | 1660 | 1750 | 1840 | 2160 | 2400 | |
| H1 | MM | 1460 | 1480 | 1520 | 1840 | 2090 | |
| φ | MM | 630 | 750 | 880 | 960 | 1000 | |
| Weight | kg | 330 | 470 | 610 | 780 | 850 | |

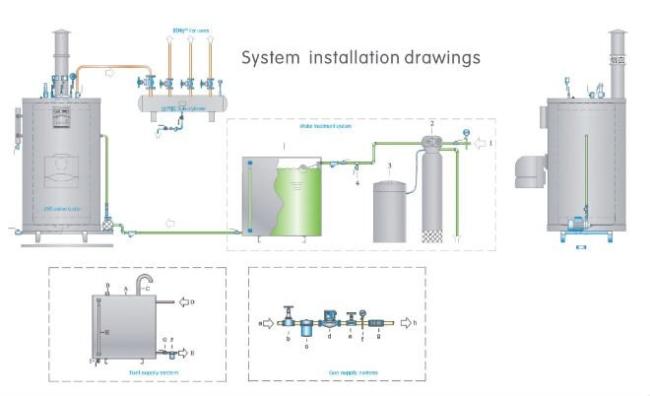

System installation drawing:

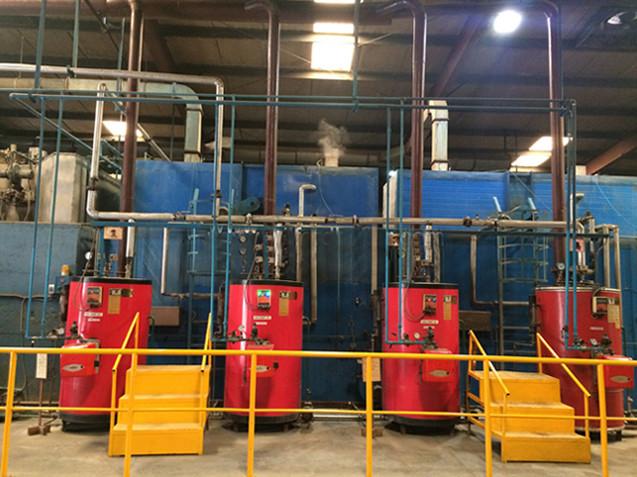

Project case:
