Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
within 20 working days
Brand:
Medpharm
Product Description
CWNS Horizontal Oil Hot Water Boiler Freezing Cold Winter Night
Key features:
- Furnace big high radiate,three return design,combustion air is full,high efficiency heating surface.
- Application breathing tube additional spoiler film technology,not only expansion of heat,the dust and its “self-cleaning”feature can reduce thermal resistance. Improve heat transfer effectiveness. More than 90% thermal efficiency.Intelligent,automatic control,with automatic temperature regulation, over-temperature standby.
- Freezing cold winter night, and other functions, and to achieve the outdoor temperature changes automatically adjust the temperature heating function to maximize energy conservation.
- Burners are used by importing,pressure spray,burning completely low noise.
- Confined by connecting structure,safe,reliable,long service life.
Specifications:
| Type | Unit | CWNS0.58-85/60-Y.Q | CWNS0.7-85/60-Y.Q | CWNS1.05-85/60-Y.Q | CWNS1.4-85/60-Y.Q | CWNS1.75-85/60-Y.Q | ||
| Rated power | MW | 0.58 | 0.7 | 1.05 | 1.4 | 1.75 | ||
| Total heat | 104kcal | 50 | 60 | 90 | 120 | 150 | ||
| Rated working pressure | Mpa | ordinary pressure | ||||||
Fuel consumption |
Light diesel oil | Kg/h | 54 | 65 | 97.5 | 130 | 162 | |
| Natural gas | Nm3/h | 58.5 | 70 | 105 | 140 | 175 | ||
| Liquefied gas | Nm3/h | 25 | 30 | 45 | 60 | 75 | ||
| Pipeline gas | Nm3/h | 141.5 | 170 | 255 | 340 | 425 | ||
| Infall caliber | DN | 100 | 100 | 125 | 150 | 150 | ||
| Effluent caliber | DN | 100 | 100 | 125 | 150 | 150 | ||
| Sewage valve caliber | DN | 40 | 50 | 50 | 50 | 50 | ||
| Voltage | V | 3N AC 50Hz 380V | ||||||
Overall size |
L | mm | 2900 | 3020 | 3230 | 3650 | 4100 | |
| W | mm | 1500 | 1700 | 1750 | 1820 | 1890 | ||
| H | mm | 1700 | 1880 | 1960 | 2050 | 2100 | ||
| Weight | kg | 1500 | 2450 | 2780 | 3500 | 3860 | ||

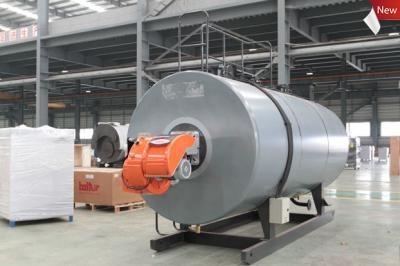

Product pictures:
