Flexible Silicone Foam Gasket Offering Excellent Sound Insulation And Shock Absorption For Automotive And Electrical Equipment
Ziitek is a high-tech enterprise dedicated to the research, development, manufacturing, and sales of thermal interface materials (TIMs). With extensive experience in this field, we provide the latest, most effective one-step thermal management solutions.
Our facility includes advanced production equipment, comprehensive testing equipment, and fully automatic coating production lines capable of manufacturing high-performance thermal products including:
- Thermal gap pad
- Thermal graphite sheet/film
- Thermal double-sided tape
- Thermal insulation pad
- Thermal grease
- Phase change material
- Thermal gel
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Z-Foam®800-10SEC combines the inherent advantages of silicone polymer,including high/low temperature resistance, UV/ozone resistance, weatherability, electrical insulation, and environmental safety. With the lightweight, acoustic damping, and vibration-damping properties of foam. With excellent compression set resistance, creep resistance, flame retardancy, and mechanical fatigue endurance, it is an ideal solution for cushioning, insulation, protection, fire safety, and noise reduction applications.
- Resistant to mechanical fatigue
- Resistant to ozone and ultraviolet rays
- Good insulation properties
- Excellent flame retardancy
- Excellent resistance to compression set and creep
- Communication Equipment
- Smart Devices
- Cables and Optical Fibers
- Airplanes, High-Speed Trains, Automobiles
- Telecommunication and Electrical Cabinets
| Properties | Value | Test Method |
|---|---|---|
| Color | Gray | Visual |
| Structure & Component | Silicone rubber | ZKTM J024 |
| Thickness range | 0.059~0.512 /1.5~13.0 | ASTM D374 |
| Density (g/cm³) | 0.3 | ASTM D1056 |
| Compressive Stress (kPa) @25% | 35±10 | ASTM D1056 |
| Compression Set (%) @100℃ | <5.0 | ASTM D1056 |
| Tensile Strength (MPa) | ≥0.2 | ASTM D412 |
| Elongation At Break (%) | ≥80 | ASTM D412 |
| Water Absorption (%) | ≤5.0 | ASTM D570 |
| Volume Resistivity (Ω·cm) | ≥1.0 x 10¹⁴ | ASTM D257 |
| Flame Rating | V-0 | UL94 (E331100) |
Product Specifications
Standard Thickness: 0.059" (1.5 mm)~0.512" (13.0 mm)
1.5 mm ≤ T ≤ 2.0 mm,Increments of 0.5 mm
2.0 mm < T ≤ 5.0 mm,Increments of 1.0 mm
5.0 mm < T ≤ 9.5 mm,In increments of 1.5 mm
9.5 mm < T ≤ 12.0 mm,In increments of 2.5 mm

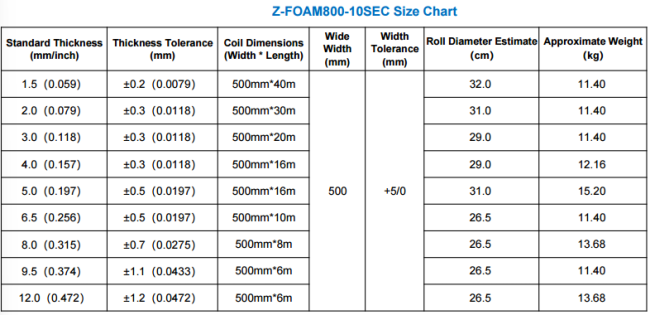

Standard Size: see size chart for details
Z-FOAM®️ The series can be molded into different shapes and provided.
lf you need different thicknesses,please contact our company.
- Our value message is "Do it right the First time, total quality control"
- Our core competencies include thermal conductive interface materials
- Competitive advantage products
- Confidentiality agreement and Business Secret Contract
- Free sample offer
- Quality assurance contract
