RoHS Compliant Electrical Insulation 1.5W/MK Ultra Soft Thermal Gap Pad For LED Power Supply
RoHS Compliant Electrical Insulation 1.5W/MK Ultra Soft Thermal Gap Pad For LED Power Supply
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL

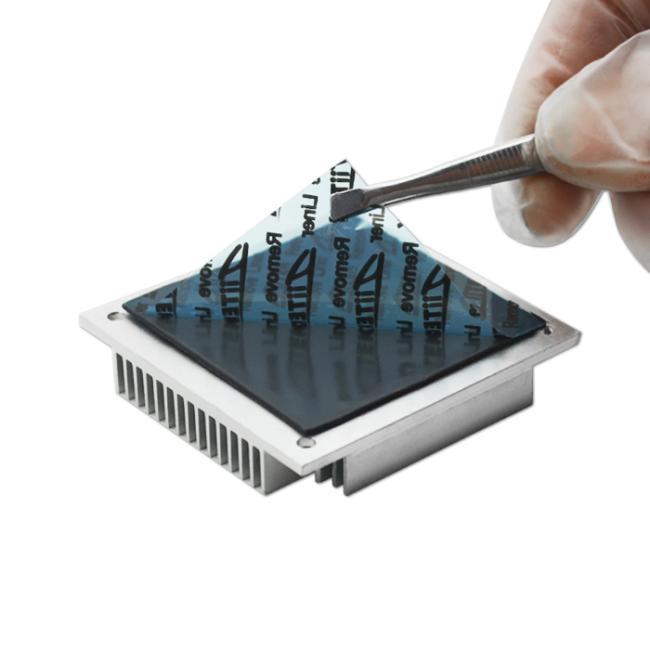

The TIF120-01E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
TIF100-01E Datasheet-REV02.pdf
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance
Applications
> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Memory Modules
> routers
> Telecommunication hardware
|
Typical Properties of TIF120-01E Series
|
||
|
Color
|
Black |
Visual
|
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
***
|
|
Specific Gravity
|
2.3 g/cc
|
ASTM D297
|
| Thickness range | 0.020"-0.200" |
ASTM C351
|
|
Hardness
|
35 Shore 00
|
ASTM 2240
|
|
Dielectric Breakdown Voltage
|
>5500 VAC |
ASTM D412
|
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
|
Outgassing(TML)
|
0.35%
|
ASTM E595
|
|
Dielectric Constant
|
4.7MHz
|
ASTM D150
|
|
Volume Resistivity |
1.0X1012Ohm-meter
|
ASTM D257
|
|
Fire rating
|
94 V0
|
equivalent UL
|
|
Thermal conductivity
|
1.5W/m-K
|
ASTM D5470
|
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
