Factory Price Custom Services NBR FKM HNBR Rubber Hammer Union Seal

Custom NBR FKM HNBR Rubber Hammer Union Seals

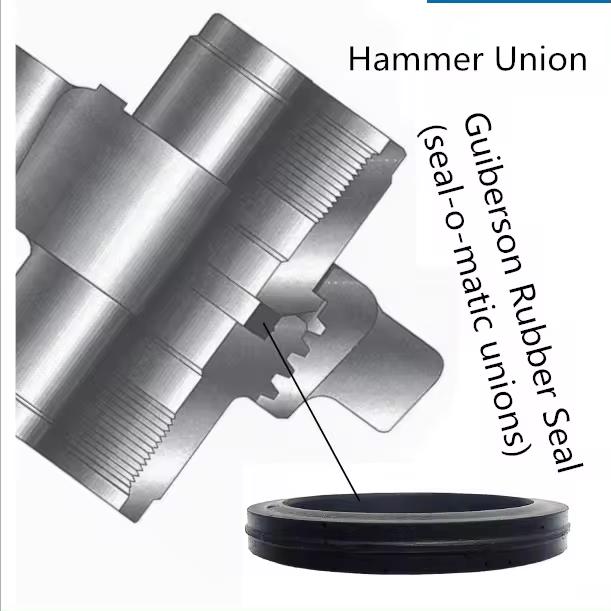

A hammer union seal is a type of seal that is used in hammer union-style pipe connections. Hammer unions are a type of quick-connect coupling that is used to connect two pieces of pipe together. They are often used in the oil and gas industry, as well as in other industries where it is important to be able to quickly connect and disconnect pipes.

Hammer union seals are made of a variety of materials, including elastomers, metal, and composite materials. The rubber profile provides sealing contact in the specified union seat; performance depends on correct fit, compound and assembly condition. Hammer union seals are available in a variety of sizes and styles to accommodate different pipe sizes and applications.

Hammer union seals are a critical component of hammer union-style pipe connections. Correct seal selection and installation support the sealing function of the complete connection.

Some profiles such as Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.

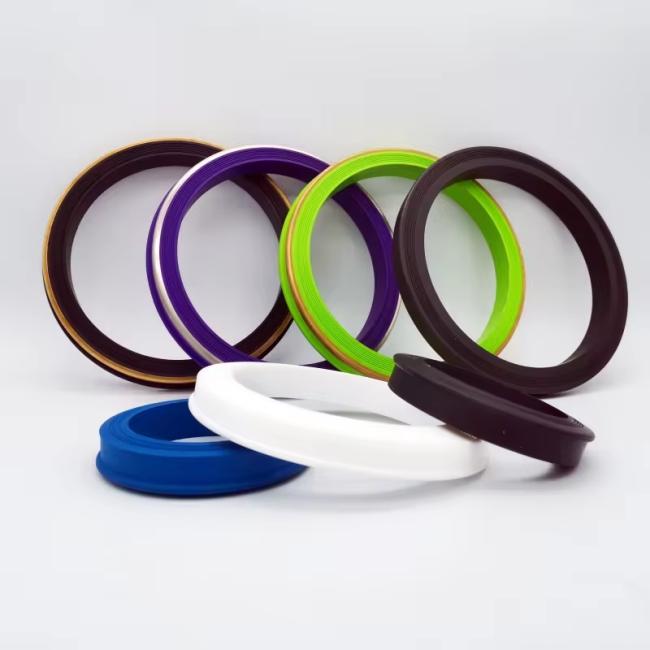

We produce 1" ,1.5",2",3",4" ,6" and 7"Hammer Union Seals in NBR, FKM or HNBR according to the confirmed fluid and temperature specification; sour-service suitability requires qualification of the exact compound and assembly. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring.

Custom Hammer Union Seals: Drawing and Sample Requirements

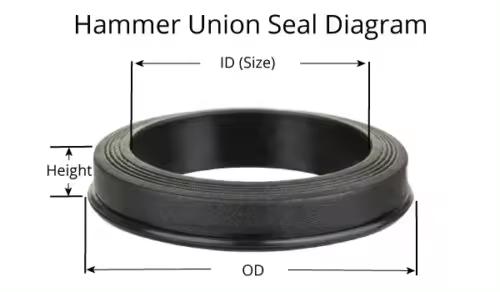

For a custom replacement, send a dimensioned drawing or an unworn sample together with the union manufacturer, figure number and nominal pipe size. Specify the seal outside diameter, inside diameter, height and lip profile; pipe size is a catalogue reference rather than a complete seal dimension.

Confirm whether the original seal is all rubber or includes a brass or stainless steel back-up. Match the backing geometry and material to the approved union configuration. Do not substitute a lip seal for an O-ring solely because the nominal size matches.

Include the process fluid, operating temperature and any special service requirements in the inquiry. NBR, HNBR and FKM identify material families; the final compound, hardness and assembly pressure limit must be confirmed for the selected part. Custom colour, marking and packaging can be discussed with the drawing and order quantity.

Here are some of the benefits of using hammer union seals:

Quick and easy installation: Hammer union seals are easy to install and remove. This makes them a convenient option for applications where it is important to be able to quickly connect and disconnect pipes.
Sealing contact: Sealing performance requires the specified profile, compatible compound and serviceable union seat. Confirm assembly limits before use.
Durable: Compound selection should account for the process fluid, temperature, cleaning chemicals and expected replacement interval.
Cost-effective: Hammer union seals are a cost-effective option for sealing hammer union-style pipe connections.
If you are looking for a reliable and cost-effective way to seal hammer union-style pipe connections, then hammer union seals are a good option.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2'' 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber hammer union seals with brass/stainless back up

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

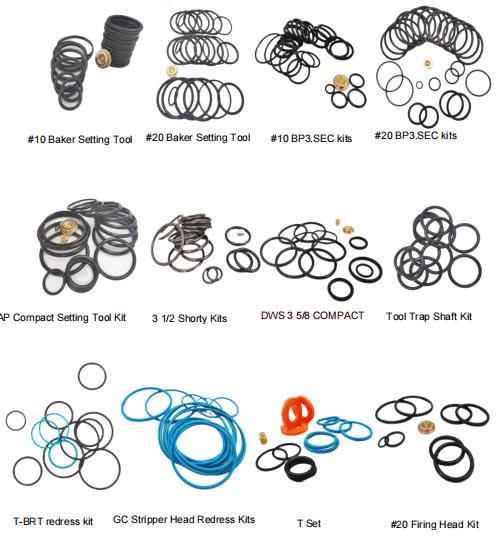

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

Rubber Packer Elements:

Rubber Oil Savers:

FAQ

Q: Can I get some samples?
A: Certainly, samples are available. We offer 1-5 samples or 1 pack of samples for free. Please note that shipping costs are not included. Alternatively, we can arrange shipping using your courier account.

Q: What is the shipping time of samples?
A: Usually 3-5 Day.

Q: Can I custom product and print my logo on the product or packaging?
A: Yes, we offer customization services. For details, please contact us.

Q: Can you manage the shipment of products?
A: Absolutely, we can arrange different shipping methods based on the final packaging of the goods, including

express, air, or sea shipping.

Q: Can you send the goods to an Amazon warehouse?
A: Certainly, just provide us with the exact address, and we will arrange the shipment accordingly.

Q: What payment methods do you accept?
A: Payment methods are confirmed with the order; please contact us for the applicable options.

Q: What is the lead time?
A: For stock goods, the lead time is generally within 15 days, depending on the quantity. For custom orders, production takes approximately 12-15 days, depending on the packaging and quantity.
