Hot Sale Customizable Buna/FKM/HSN Hammer Union Seal for Industrial Applications

Custom Buna/FKM/HSN Hammer Union Seal for Industrial Applications

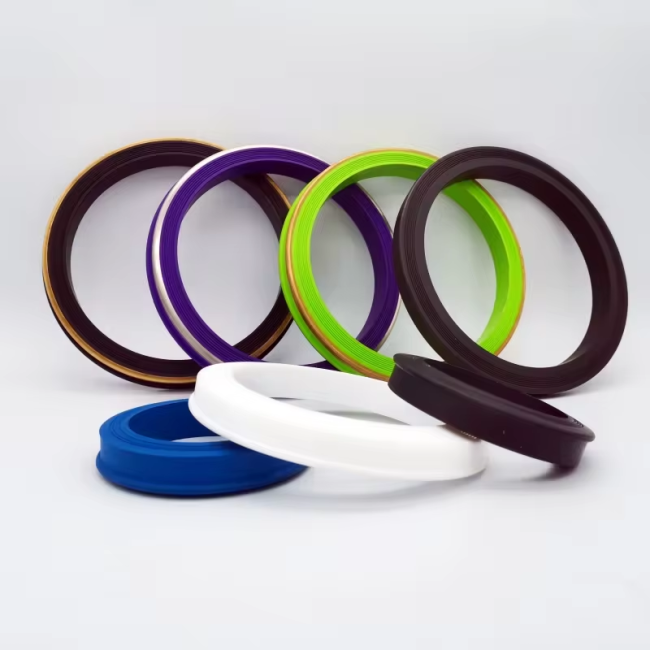

Royal Way supplies replacement hammer union seals for the specified union size and figure. This range includes Buna (NBR), FKM and HSN/HNBR material enquiries, with rubber-only or metal-backed constructions selected to the assembly drawing. Confirm the seal profile rather than choosing only by nominal pipe size.

Material selection requires the fluid composition, additives, operating temperature and pressure cycle. Specify whether a brass or stainless steel anti-extrusion ring is required; the insert geometry and rubber profile must match the union seal pocket.

Sealing performance depends on the selected compound, seal dimensions, mating surfaces and complete union assembly. Confirm installation and inspection requirements for the actual equipment.

Hammer union figures and sizes use different seal profiles. Specify the figure, manufacturer drawing and seal-pocket dimensions to identify a lip seal or O-ring replacement; figure designations alone do not establish interchangeability.
Listed nominal sizes are 1, 1.5, 2, 3, 4, 6 and 7 inches, subject to the selected figure and drawing. Nitrile, FKM and HNBR options require compound-specific review. Sour-gas service requires the actual gas composition, temperature, pressure, decompression conditions and applicable qualification evidence; polymer name alone does not establish suitability. Brass or stainless steel backup-ring options must be specified with the seal profile.

Custom Hammer Union Seal Profile and Backup-Ring Checklist

Send the union figure and nominal size, seal OD and ID, axial height, lip or O-ring section, and any brass or stainless steel insert drawing. For an existing part, include a sample and the seal-pocket dimensions. Color is an identification preference and does not prove compound or service qualification.

Specify NBR, FKM or HSN/HNBR compound requirements, hardness and fluid exposure. Request a drawing-based quotation for rubber-only and metal-backed options separately. Manufacturing is managed under ISO 9001; pressure capability must be reviewed for the complete union assembly.

Here are some of the benefits of using hammer union seals:

Profile and installation fit: Use the correct profile and equipment installation procedure; confirm orientation, pocket dimensions and mating-surface condition.
Sealing requirements: Specify the complete assembly operating conditions and required leakage tests for the chosen seal.
Durable: Review wear, fluid exposure and temperature against the selected compound and backup-ring construction.
Cost-effective: Provide the drawing, material specification and quantity for a replacement-seal quotation.
For a custom seal, include rubber dimensions, metal-insert dimensions and inspection requirements with the enquiry.

What we Shanghai Qinuo Industry Provide:

Rubber O rings

• Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
• Encapsulated rubber o rings- silicone/ FKM rubber o rings
• PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2'' 3" 4" 6" 7"

• Rubber hammer union seals-Buna/FKM/HNBR rubber type
• Rubber hammer union seals with brass/stainless back up

Swab cups

• V types 4" 5.5" ect.
• TA type
• MV type
• NUF type
• TUF type

Rubber seal kits- custom packing or lable is available

• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

Rubber Packer Elements:

Rubber Oil Savers:

FAQ

Q: Can I get some samples?
A: Certainly, samples are available. We offer 1-5 samples or 1 pack of samples for free. Please note that shipping costs are not included. Alternatively, we can arrange shipping using your courier account.

Q: What is the shipping time of samples?
A: Usually 3-5 Day.

Q: Can I custom product and print my logo on the product or packaging?
A: Yes, we offer customization services. For details, please contact us.

Q: Can you manage the shipment of products?
A: Absolutely, we can arrange different shipping methods based on the final packaging of the goods, including

express, air, or sea shipping.

Q: Can you send the goods to an Amazon warehouse?
A: Certainly, just provide us with the exact address, and we will arrange the shipment accordingly.

Q: What payment methods do you accept?
A: Please confirm the available payment method with the quotation before placing an order.

Q: What is the lead time?
A: For stock goods, the lead time is generally within 15 days, depending on the quantity. For custom orders, production takes approximately 12-15 days, depending on the packaging and quantity.
