Fig 1004 Colorful 80 Shore A FKM 3 Inch Hammer Union Lip Seal Rings
Product Photo
Product Specification
The nominal 3-inch Figure 1004 FKM lip seal is a replacement component for the identified hammer union recess. The existing product designation specifies 80 Shore A; confirm the FKM compound and agreed hardness tolerance against the selected part drawing. Provide the equipment manufacturer and actual seal dimensions before ordering, including any backing configuration.
Custom colours can distinguish ordered batches but do not identify the FKM grade or service rating. Specify colour separately from compound, hardness and dimensions. Confirm fluid composition and operating temperature for the selected material, and use the complete union assembly specification for pressure requirements. Other catalogue sizes and backed variants require separate fit confirmation.
 |
Product Information | |
| Material | FKM for this part; NBR/HNBR alternatives require separate confirmation | |
| Size | Nominal 3 inches; actual seal dimensions per Figure 1004 part drawing | |
| Color | Black or Custom Color | |
| Hardness | 80 Shore A designation; tolerance per approved compound specification | |
| Feature | Figure-specific FKM lip seal configuration | |
 |
Type |

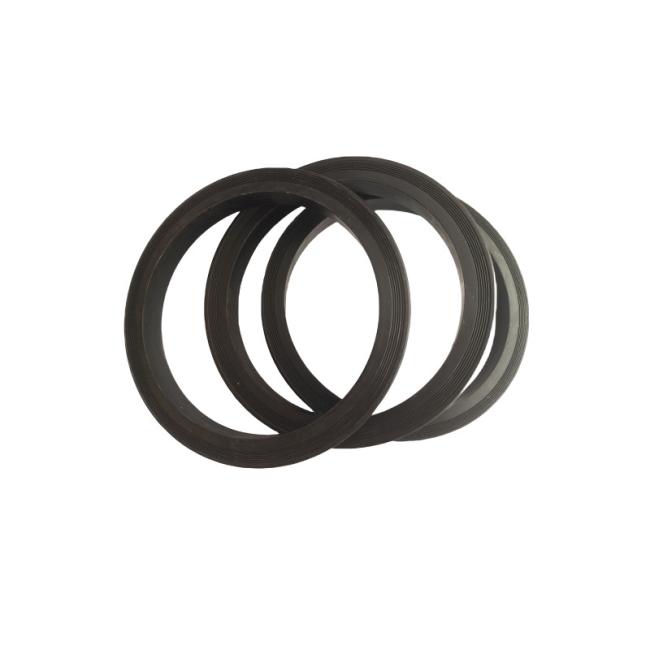

| rubber union seals | |
| union seal with brass rings | |

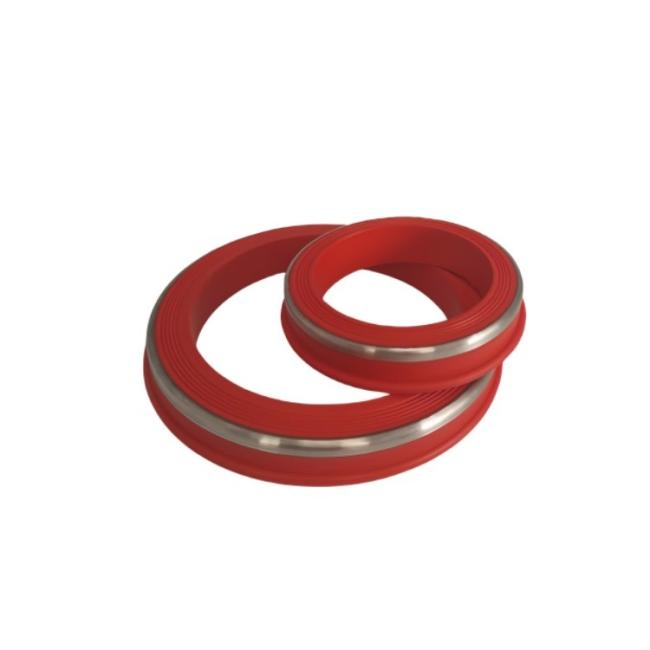

| union seal with stainless rings |
 |
 |
