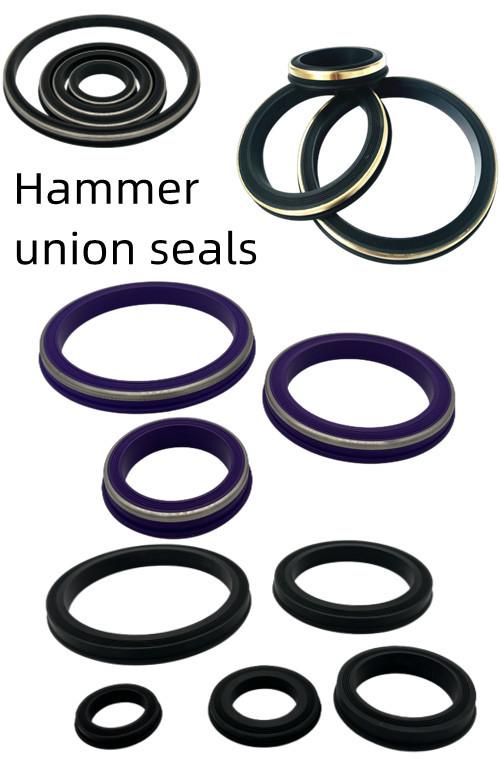

Oil Resistance Fig 1002 Weco HNBR H2S Service Hammer Union Lip Seal Rings
Product Introduction
Figure 1002 WECO-style HNBR hammer union lip seal enquiries are matched to the identified connection manufacturer, nominal size and seal recess drawing. Specify the HNBR compound grade, lip section and any brass or stainless anti-extrusion backing required by the actual assembly. The nominal connection size and figure designation do not establish the rubber ring dimensions or guarantee fit across manufacturers.
Product Specification
For an oil-service enquiry with possible H2S exposure, provide the fluid composition, H2S conditions, operating temperature, pressure and applicable qualification specification. HNBR alone is not proof of sour-service suitability; the selected compound and equipment configuration require specific qualification. The catalogue below covers separately matched parts, and its Figure 206 AS568 references must not be applied to Figure 1002 lip seals.
| 1" 1502, Buna / FKM / HSN |
| 1-1/2" 1502, Buna / FKM / HSN |
| 2" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 3" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 4" 602/1002/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 2" FIG 206, Buna / FKM / HSN(AS568-228) |
| 3" FIG 206, Buna / FKM / HSN(AS568-236) |
| 4" FIG 206, Buna / FKM / HSN(AS568-346) |
Related Repair Products
| 2" Normal Swivel Kit |
| 2" SMI-Oversized Swivel Joint Kits |
| 3" SPM Swivel Kit |
| 3" FMC Swivel Kit |
| 3" Wide Swivel Kits |
| 4" 15k Forum Swivel Kits |
| 4" 10k FET-Flowvalve Swivel kits |
| 4" 15k TSI Swivel Kit |
| 4" 15k FlowValve Swivel Kit |
