PTFE Hammer Union Seal 2" 3" Temperature Resistant Sealing Ring
PTFE Hammer Union Seal Rings for 2 and 3 Inch Connections
PTFE hammer union seal enquiries focus on 2 and 3 inch nominal union connections. Specify the PTFE grade, finished ring profile and corresponding union manufacturer drawing. Confirm the service temperature and pressure against the selected material and complete assembly rather than using a general temperature-resistant description.
1" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM/ HSN
3" FIG 206, Buna / FKM/ HSN
4" FIG 206, Buna / FKM/ HSN
PTFE Grade and Finished Ring Dimensions for Replacement Orders
Provide the 2 or 3 inch nominal union size, FIG designation, manufacturer and approved drawing revision. Specify finished inside and outside dimensions, section profile and tolerances. Confirm the PTFE grade and any filler specification rather than assuming all PTFE constructions are interchangeable.
State process fluid, temperature exposure and pressure cycling for assembly review. Use the approved PTFE material specification and hardness test method where hardness is required; the elastomer Shore A range is not the acceptance specification for this PTFE ring.
Confirm the required installation procedure, supporting components and inspection checks with the equipment drawing. The retained rubber and other union-size references below describe separate options requiring their own approval.
| Size: | 1" 1.5" 2" 3" 4" 6" 7" |
| Material: | Buna/FKM/HNBR/PTFE |
| Types: | rubber/ rubber+brass back-up/rubber+ss back-up |
Material Introduction
| Material name | Temperature range | Advantage | Deficiency |
| NBR(Buna) | NBR service temperature by approved compound Confirm operating exposure |
1.Presently the most widely used rubber in the seal industry 2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance 3.Resistance to most mineral oils and greases |
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) | HNBR service temperature by approved compound Confirm operating exposure |
1.Chemical resistance 2.Wider temperature range than standard nitrile 3.High strength material that resists extrusion, abrasion, and wear 4.Water and steam exposure requires compound-specific review 5.H2S exposure requires specific compound qualification 6.Commonly used with petroleum oils and co2 |
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) | FKM service temperature by approved compound Confirm operating exposure |
1.Excellent resistance to higher temperature, petroleum, and gasoline 2.Good chemical resistance, including to refrigerants(R12) 3.Great mechanical properties are retained over a wide temperature range 4.Ammonia exposure requires specific compound compatibility review |
Check compatibility against the specific FKM formulation and complete fluid composition |
| PTFE (Polytetrafluoroethylene) | PTFE service temperature by grade and assembly Confirm operating exposure |
Confirm compatibility for the selected PTFE grade and process fluid | Generally more expensive than other plastics or elastomers, which can be a limitation for cost-sensitive applications. |
PU (Polyurethane) |
PU service temperature by approved grade Confirm operating exposure |
1.Thermoplastic elastomer with higher tensile strength, toughness, and wear resistance
2.Great combination of hardness and elasticity 3.Excellent low temperature flexibility
4.Commonly used in high pesure hydraulic systems where parts are subject to wear
|
Can degrade when exposed to UV light over prolonged periods unless specifically formulated with additives for protection. |
Best Selling
Company Profile
Shanghai Qinuo Industry Co., Ltd., a high-tech enterprise founded in 2013 in the Shanghai Free Trade Zone, integrates R&D, production, and sales of specialized components. Guided by the principle “Quality for Survival, Innovation for Development,” we have earned recognition under the Royal Way® and SHQN® brands.

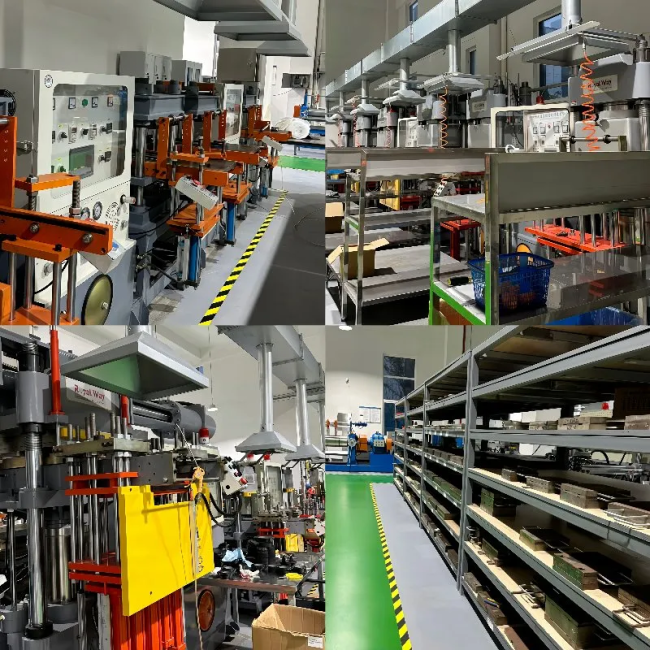

We offer comprehensive OEM/ODM services. Our manufacturing capabilities include multiple 150-ton, 200-ton, and 300-ton vacuum vulcanizing presses, ensuring versatile production capacity.
