FKM Hammer Union Seals 602 1002 1502 for Oil and Gas Industry
FKM Hammer Union Replacement Seals for FIG 602, 1002 and 1502
This FKM hammer union seal listing focuses on replacement specification for oil and gas equipment using FIG 602, 1002 or 1502 connections. Identify the exact union and seal part before selecting an FKM compound. Provide the operating fluid, cleaning chemicals and temperature conditions with the drawing for review.
1. Pressure Specification: Supply the complete union rating, maximum service pressure and pressure cycling. FIG designation does not give a standalone pressure rating for the replacement elastomer seal.
2. Fluid and Cleaning Exposure: List process fluids and cleaning agents separately, including concentration and exposure temperature where relevant. Confirm suitability using the selected FKM compound specification.
3. Replacement Installation: Confirm seal-pocket dimensions and sealing-surface condition. Use the union maker’s installation procedure and define post-replacement inspection and assembly test requirements.
4. Reference Construction: The size table includes several rubber options. Select FKM for this order and confirm the seal profile and any brass or stainless anti-extrusion construction by the equipment drawing.
5. Gas-Service Requirements: Provide gas composition and decompression conditions when applicable. Sour-service or rapid-decompression suitability requires qualification of the specified compound and assembly.
FKM Seal Specification for Process Fluid and Cleaning Exposure
For a replacement review, describe both the normal process fluid and the maintenance cleaning sequence. Include chemical names, concentration, temperature and contact duration. If the seal sees different fluids between operating campaigns, list each exposure instead of specifying only the primary oil or gas.
Send the union manufacturer, FIG number, nominal connection size and seal drawing revision. Specify the chosen FKM compound, nominal hardness and tolerance. The existing 70–90 Shore A range represents options; one approved grade should be identified for the order.
For recurring purchases, agree the seal profile, dimensional acceptance, compound identification and required documentation. Confirm any anti-extrusion component separately. The reference table and related swivel kits retained below require their own part identification and should be matched to the actual assembly.

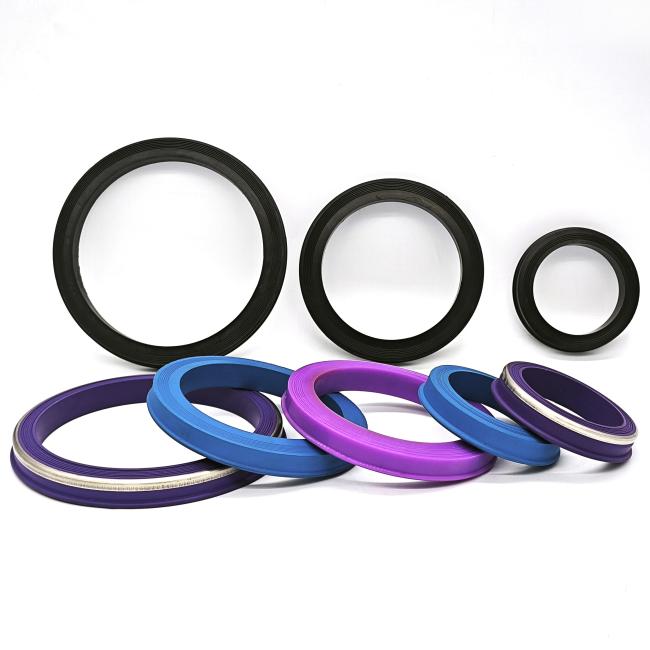

| 1" 1502, Buna / FKM/ HSN |
| 1-1/2" 1502, Buna / FKM / HSN |

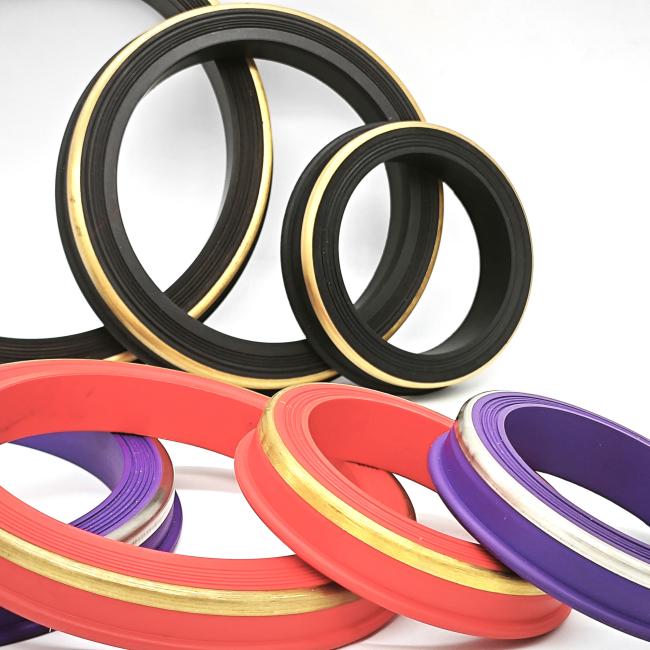

| 2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 3" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 4" 602/1002/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 2" FIG 206, Buna / FKM / HSN |
| 3" FIG 206, Buna / FKM / HSN |
| 4" FIG 206, Buna / FKM / HSN |

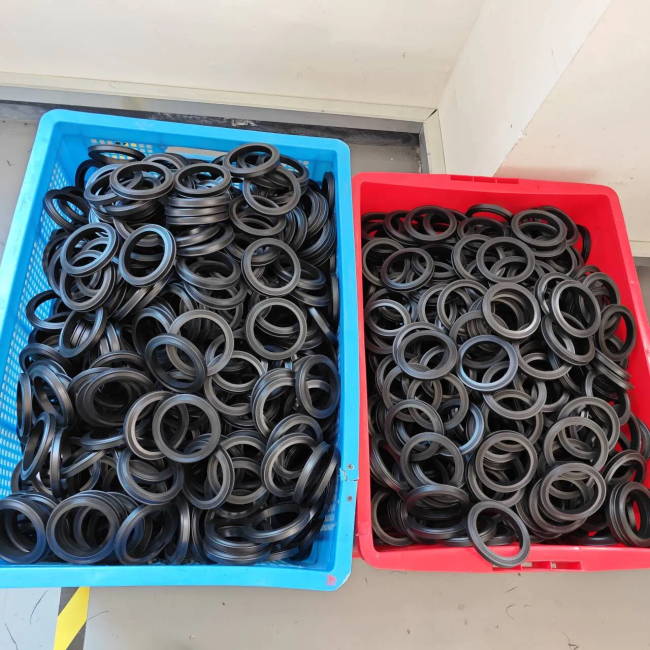

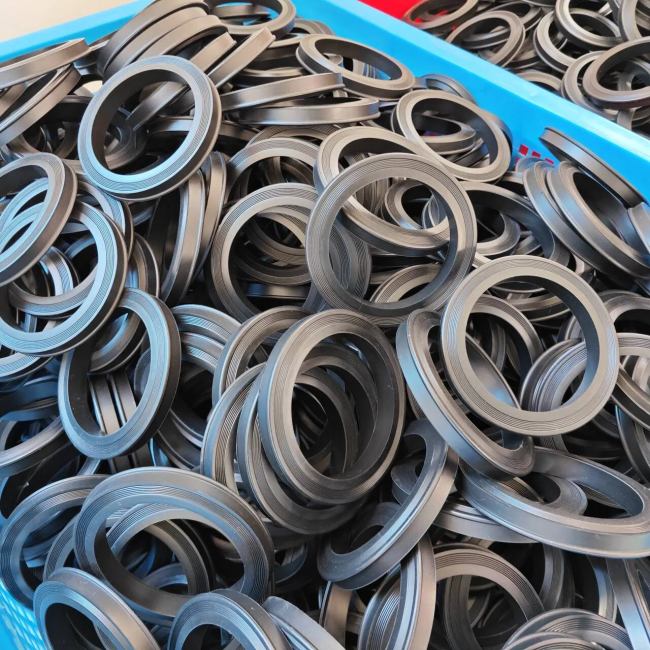

Bulk Production
Related Products
| 2" Normal Swivel Kit |
| 2" SMI-Oversized Swivel Joint Kits |
| 3" SPM Swivel Kit |
| 3" Swivel Kit |
| 3" Wide Swivel Kits |
| 4" 15k Forum Swivel Kits |
| 4" 10k FET-Flowvalve Swivel kits |
| 4" 15k TSI Swivel Kit |
| 4" 15k FlowValve Swivel Kit |
