Hammer Union Seals: NBR, HNBR and FKM Options for FIG 602, 1002 and 1502
This hammer union seal listing brings together NBR, HNBR and FKM material options for oilfield replacement enquiries. Select a specific compound and seal construction for the identified FIG 602, 1002 or 1502 union. Include the equipment manufacturer, connection size, seal drawing and service conditions with the request.
1. Assembly Pressure: State the complete union rating, maximum operating pressure and pressure-cycle requirements. FIG numbers identify union configurations and do not establish an independent pressure rating for a loose seal.
2. Material Review: Compare candidate NBR, HNBR and FKM compounds using the actual fluid composition, additives, cleaning agents and temperature conditions. A polymer family name alone does not qualify a compound for the application.
3. Installation Fit: Match the seal section and locating features to the union pocket. Use the equipment manufacturer’s maintenance instructions and define assembly inspection and test requirements after replacement.

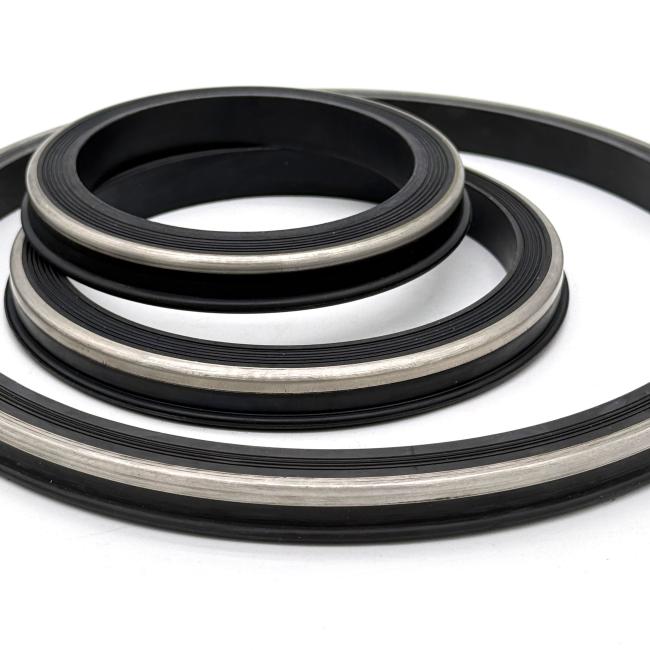

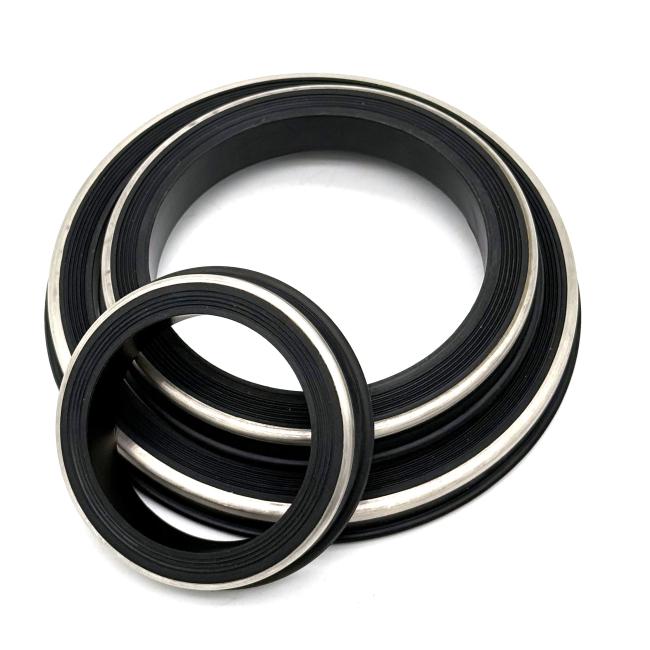

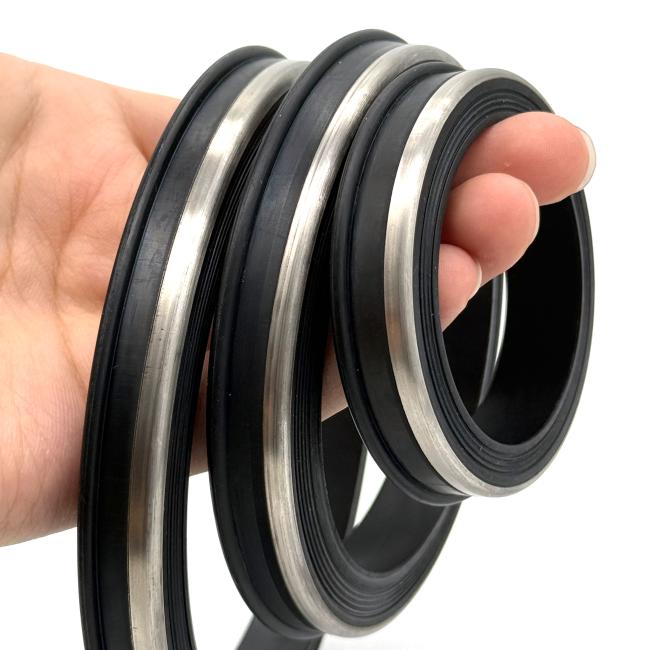

4. Size and Construction: The original table below remains a reference for nominal sizes and material options. Specify the selected compound, nominal hardness and any brass or stainless anti-extrusion construction on the order drawing.
5. Qualification: Supply gas composition, pressure, temperature and decompression conditions when gas or sour service is involved. NBR, HNBR and FKM options each require their own applicable compound qualification.
Compare Union Seal Compounds by the Actual Service Specification
For a material comparison, send the same union drawing and operating specification with each candidate compound request. Include normal and peak temperatures, fluid exposure, pressure cycling and any required test method. This allows the options to be reviewed against a common set of requirements.
The listed 70–90 Shore A range represents hardness options. Define one nominal hardness and tolerance for the selected compound rather than treating the whole range as one replacement specification. Identify any anti-extrusion part separately, including material and whether it is included in the assembly.
Provide the FIG designation, union maker, nominal connection size and seal part number. The retained 1, 1-1/2, 2, 3 and 4 inch references need confirmation against the specific seal profile. For repeat orders, retain the approved drawing revision, compound identifier and inspection requirements.
| 1" 1502, Buna / FKM/ HSN |
| 1-1/2" 1502, Buna / FKM / HSN |
| 2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext) |
| 3" 602/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 4" 602/1002/1502, Buna / FKM / HSN(Brass/Stainless Anti-Ext) |
| 2" FIG 206, Buna / FKM / HSN |
| 3" FIG 206, Buna / FKM / HSN |
| 4" FIG 206, Buna / FKM / HSN |
Bulk Production
Related Products
| 2" Normal Swivel Kit |
| 2" SMI-Oversized Swivel Joint Kits |
| 3" SPM Swivel Kit |
| 3" Swivel Kit |
| 3" Wide Swivel Kits |
| 4" 15k Forum Swivel Kits |
| 4" 10k FET-Flowvalve Swivel kits |
| 4" 15k TSI Swivel Kit |
| 4" 15k FlowValve Swivel Kit |
Company Profile
Shanghai Qinuo Industry Co., Ltd., a high-tech enterprise founded in 2013 in the Shanghai Free Trade Zone, integrates R&D, production, and sales of specialized components. Guided by the principle “Quality for Survival, Innovation for Development,” we have earned recognition under the Royal Way® and SHQN® brands.

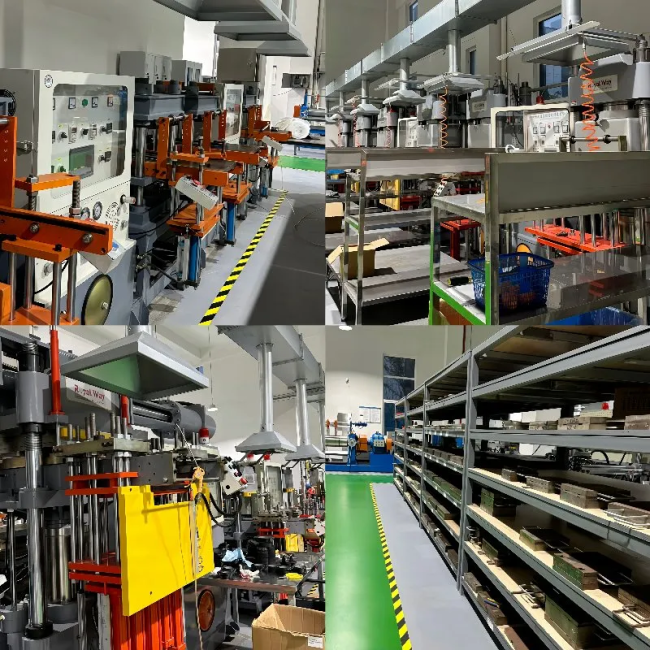

We offer comprehensive OEM/ODM services. Our manufacturing capabilities include multiple 150-ton, 200-ton, and 300-ton vacuum vulcanizing presses, ensuring versatile production capacity.
