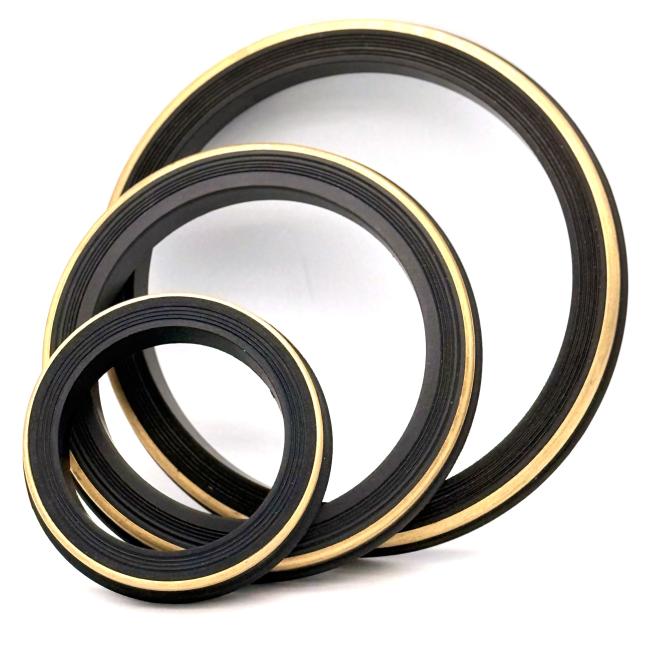

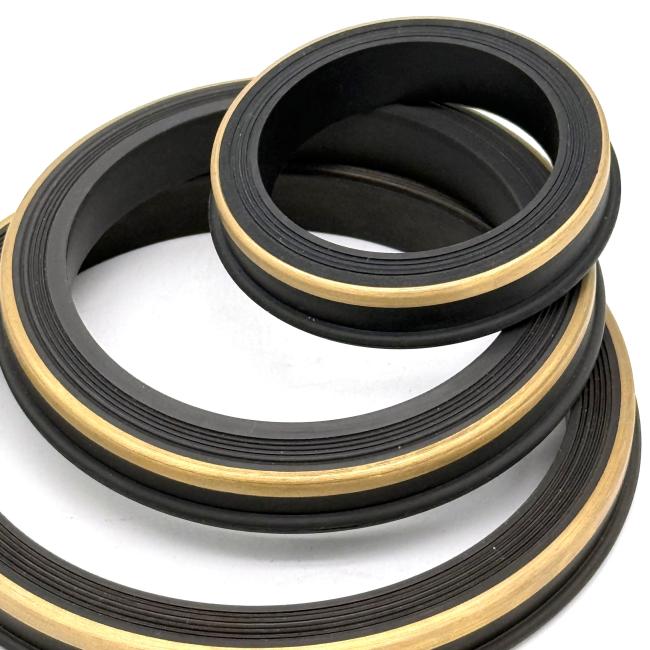

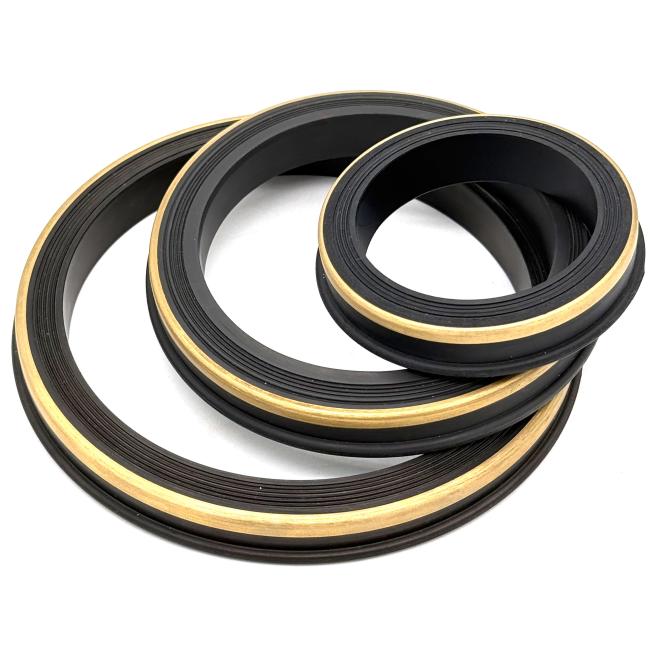

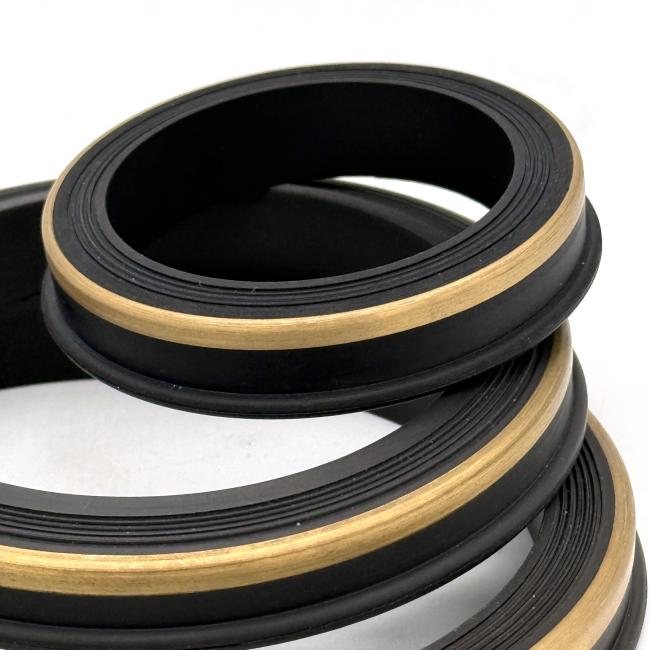

15k PSI Anti-Extrusion Wing Union Seals with Brass Back-Up for High-Pressure Fracking
What we supply:
Qinuo High-performance Hammer Union Seals are essential components for maintaining leak-free connections in high-pressure oilfield flowlines. Specifically designed for Fig 1502 wing unions, these seals are manufactured from high-grade elastomers like FKM and HNBR to withstand 15,000 PSI CWP. They provide exceptional resistance to abrasive fracking fluids, corrosive chemicals, and extreme temperatures. Engineered for a precision fit, our seals ensure operational safety and efficiency in hydraulic fracturing, cementing, and well-testing applications, significantly reducing downtime and equipment wear.
Working Pressure & Key Features:
Working Pressure: 15,000 PSI (Cold Working Pressure).
Key Features:
Extreme Pressure Integrity: Specifically molded to prevent extrusion and maintain a tight seal under 15k PSI mechanical stress.
Chemical & Thermal Resilience: Superior resistance to H2S, CO2, acids, and temperatures ranging from -20°F to +400°F (depending on material).
Abrasion Resistance: Formulated to withstand the high-velocity flow of sand and proppants common in fracking.
Precision Fit: Optimized geometry for 2", 3", and 4" Fig 1502 unions, ensuring easy installation and zero-leak performance.
| Size: | 1" 1.5" 2" 3" 4" 6" 7" |
| Material: | Buna/FKM/HNBR/PTFE |
| Types: | Pure rubber/ rubber+brass back-up/rubber+304 ss back-up |
- Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
- Encapsulated rubber o rings- silicone/ FKM rubber o rings
- PTFE coating rubber o rings-kinds of color rubber o rings
![]()
- Rubber hammer union seals-Buna/FKM/HNBR rubber type
- Rubber w/brass or stainless steel back up types
- V types 4" 5.5" ect.
- TA type
- MV type
- NUF type
- TUF type
- #10 setting tool - With burst disk
- #20 setting tool - With burst disk
- AP Compact Setting Tool Kit
- Grease Tubes Seal Kit
- 3 1/2” Shorty Kits
- 3 - 1/8" Weight Bar Kit
- #10 Baker Firing Head Kit
- #20 Firing Head Kit
- #20 BP3.SEC kits
- #10 BP3.SEC kits
- T-BRT redress kit
- T-1 Set
- GC Stripper Head Redress Kits
1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)
2) Rubber Push Pin -black
3) Nylon Push Pin -natural
4) Retainer Nut, Steel, ZD Plated (application: retainer nut)
5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)
6) Threaded Brass Plug (application: setting tool plug )
| Customized services | Plastic & Rubber bonding | Mold Design | ||||||
| Customized extrusion | Extrusion and bonded gaskets | Mold Production | ||||||
| Injection Molding | Self Adhesive rubber profile | Customized Package | ||||||
| Sheet Cutting | Rubber Complex Intake Hose | Problem Solving | ||||||
| Standard Size extrusion | Reinforced rubber tubes | Assembly | ||||||
| Special Compound design | Rubber Solution Suggestion | Sourcing | ||||||
| Rubber& Metal bonding | ||||||||
Q1: What is Hammer Union Seal?
A1: Hammer union seal, produced by SHQN, is a kind of sealing device used for pipeline connection, whose model number is Hammer union seals. It is made in China..
Q2: What is the packaging of Hammer Union Seal?
A2: The packaging of Hammer Union Seal can be customized or standard packing.
Q3: What is the delivery time of Hammer Union Seal?
A3: The delivery time of Hammer Union Seal is about 15 days.
Q4: What is the material of Hammer Union Seal?
A4: Hammer Union Seal is made of high quality rubber compounds.
Q5: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
