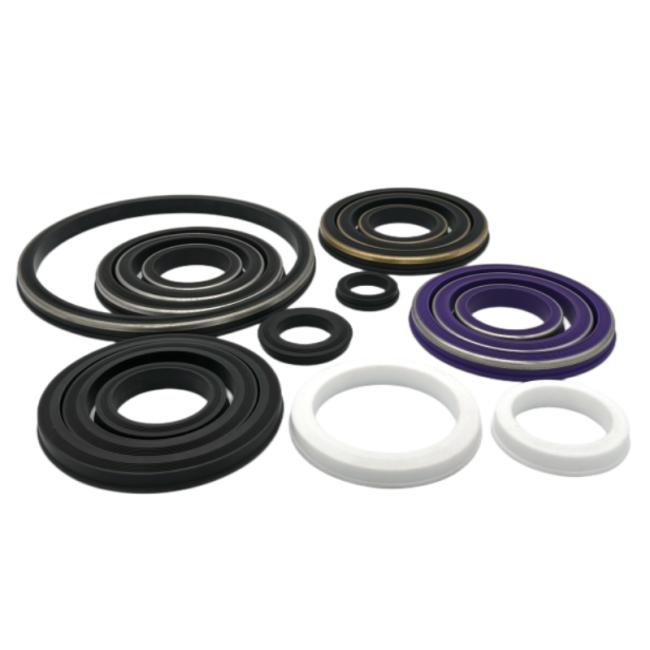

High Pressure Resistance Hammer Union Seal with Customizable Colors and Multiple Material Options
SHQN offers replacement hammer union seals for flowline connections used in cementing, manifold and drilling equipment. This listing covers material and color options. Match each seal to the union manufacturer, figure, nominal size and groove; the replacement seal alone does not determine the assembly pressure rating.
To meet different wellhead conditions, we offer various high-performance materials:
- NBR (Buna-N): Review the selected compound against the actual hydraulic fluid and temperature
- HNBR (Hydrogenated Nitrile): Confirm compound-specific temperature, fluid and pressure-service suitability
- FKM: Review chemical and gas exposure for the specific compound; the FKM name alone does not establish sour-service qualification
- Anti-Extrusion Rings: Brass or stainless steel backup constructions require matching the equipment drawing and seal profile
- High Hardness & Tear Strength: Specify compound hardness and separate mechanical-property requirements for the selected seal
- Precision Fit: Confirm manufacturer, figure, size and groove dimensions before substituting a replacement seal
- Color-Coded Identification: Custom colors (Red, Blue, Green, Yellow) can be agreed for identification; color does not establish material or pressure suitability
- Longer Service Life: Service life depends on compound, fluid, assembly condition and operating cycles; inspect seals during planned maintenance
Custom Color and Backup Construction for Repeat Orders
For repeat purchases, quote the approved part reference and color convention together. Provide photographs of both faces and the side profile, including the backup ring. Confirm whether the support is separate, bonded or retained, and check the new seal against the groove drawing. A matching color or nominal size does not establish interchangeability. Include fluid, gas, temperature and cycling requirements when requesting a material change.
- Fracturing (Frac) stacks and manifolds
- Acidizing and cementing lines
- Mud pumps and suction lines
- Well testing and flowback equipment
| Feature | Details |
|---|---|
| Available Figures | Listed figure references: Fig 100, 200, 206, 300, 400, 602, 1002, 1502, 2202; confirm each configuration against the union drawing |
| Standard Sizes | Listed nominal sizes: 1", 1-1/2", 2", 3", 4", 5", 6", 7", 8"; availability and profile depend on figure and manufacturer |
| Pressure Rating | Refer to the identified union assembly rating and service documentation |
| Hardness Range | Specify required hardness and tolerance for the selected elastomer compound |
| Temperature Range | Confirm continuous and peak limits for the specific compound and medium |
| Insert Options | Confirm backup material, dimensions and retention arrangement against the drawing |
Founded in 2013, Shanghai Qinuo Industry Co., Ltd is a leading manufacturer specializing in rubber sealing solutions. Integrating R&D and production, we serve the global market under our brands Royal Way and SHQN.

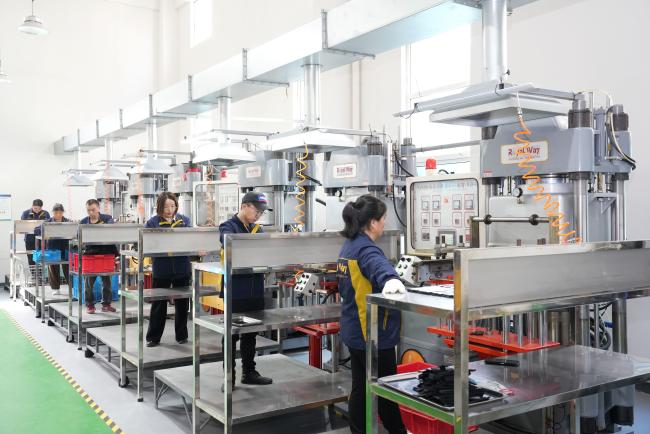

Factory: Our wholly-owned plant, Nantong Ruowei Seal Technology, is located just one hour from Shanghai's main airport and seaport, ensuring efficient logistics.
Capacity: With 30+ vulcanizing machines, we produce over 40 tons (80,000 lbs) of rubber products monthly, covering 20+ distinct product categories.
Quality: We strictly follow ISO9001 quality management systems.
Our products are trusted by clients in over 100 countries, including major markets in the Americas, Europe, and the Middle East. Shanghai Qinuo is ready to be your reliable partner.
We are a manufacturer integrating R&D, production, and sales. While our headquarters is in the Shanghai Free Trade Zone, we have a wholly-owned factory, "Nantong Ruowei Seal Technology Co., Ltd", located in Nantong City. We welcome you to visit our facilities.
We operate more than 30 rubber vulcanizing machines and related equipment. Our monthly rubber processing capability exceeds 40 tons (approx. 80,000 lbs), and we are continuously expanding our capacity to meet growing global demand.
Our factory is located in Nantong City, which is only a one-hour drive from Shanghai Pudong Airport and the Shanghai Sea Port. This strategic location ensures rapid logistics and quick delivery for our international clients.
Yes, we successfully market our products under two proprietary brands: "Royal Way" and "SHQN". These brands are recognized for quality in over 100 countries worldwide.
Absolutely. As a high-tech enterprise, we specialize in OEM and ODM services. Our R&D team can design and produce molds based on your 2D/3D drawings or samples. We currently produce more than 20 kinds of rubber rings and complex molded parts.
We process a wide range of rubber materials to suit different industrial needs, including NBR, EPDM, Silicone, FKM (Viton), CR (Neoprene), and NR. If you are unsure which material fits your application, our engineers can provide professional recommendations.
We strictly adhere to the ISO9001 quality management system. From raw material procurement to vulcanization and final inspection, every step is rigorously monitored to ensure "Quality for Survival."
Yes, we can provide samples. For stock items: Free samples are available (freight collect). For custom items: We will produce samples for approval after the mold is created. The mold cost may be refundable depending on the order quantity.
Samples/Mold creation: Typically 7-15 days, depending on complexity. Mass production: Usually 15-25 days after sample approval. Thanks to our proximity to the Shanghai port, we can minimize shipping delays.
Our MOQ is flexible depending on the product size and manufacturing process. For standard rubber rings, the MOQ might be higher, while for large or complex custom parts, we can accept smaller trial orders. Please contact our sales team for a specific quote.
