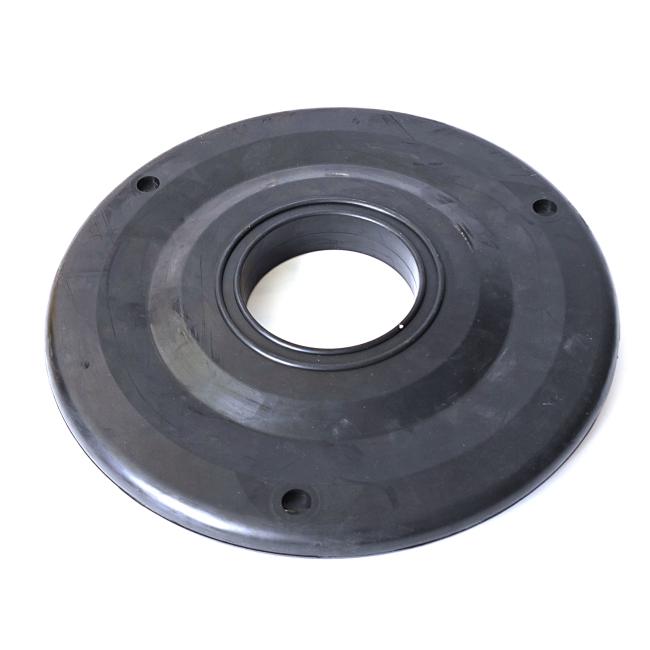

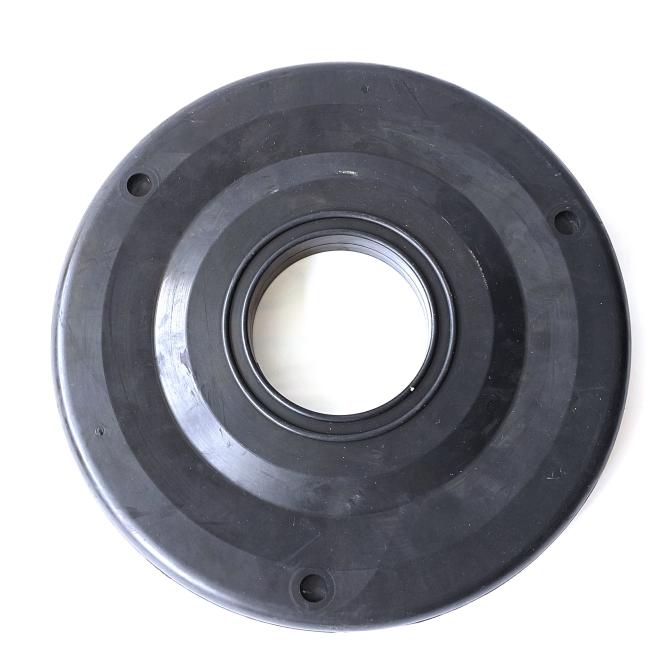

9 Inch Drill Pipe Rubber Wiper for Oilfield Drilling Operations

Product Overview

Our 9 inch drill pipe rubber wiper is a critical component for efficient drilling and workover operations. Specifically designed to strip drilling fluids, mud, and oil from the exterior of drill pipes, tubing, and casing as they are pulled from the wellbore. As a leading oilfield sealing manufacturer, we review pipe dimensions, opening profile and mounting support for the actual wiping operation. A pipe wiper does not provide well-pressure containment or establish site environmental compliance.

Key Features and Selection Considerations

• Superior Mud Stripping: Confirm the installed wiping profile and lip construction against the drawing or removed sample.

• High Oil Resistance: Formulated with premium NBR (Nitrile) or HNBR compounds reviewed against the actual crude oil, hydrocarbons and oil-based mud (OBM) formulation.

• Reinforced Durability: Confirm internal reinforcement and external support arrangement with the selected drawing; review tool-joint passage and pulling conditions.

• Opening and Mounting Fit: Nominal 9-inch size does not establish universal fit. Confirm measured outside dimensions, center opening, thickness and support interface.

• Extreme Wear Resistance: Specify travel speed, total wiping duty, solids exposure and inspection requirements for the selected compound.












•

Support Frame and Replacement Fit for a 9-Inch Pipe Wiper

Check the existing support frame before ordering a replacement mud wiper. Send photographs of the installed arrangement and a drawing or sample showing the outside diameter, center opening, thickness and retaining surfaces. Internal reinforcement and an external steel support frame are separate construction details; specify which arrangement the replacement must match.

Listed nominal thickness is 18 mm and unit weight is 1.1 kg. Confirm these values for the selected drawing and compound. Provide pipe-body and tool-joint dimensions, drilling-fluid formulation, operating temperature and quantity so the opening profile and material can be reviewed together.
