3" 1502 Union Gasket Seal Brass Reinforced Buna High Pressure Seals

3-inch Figure 1502 Brass-Backed Buna/NBR Hammer Union Seal

Hammer Union Seal

This listing focuses on a 3-inch nominal Figure 1502 hammer union seal in Buna/NBR with brass backing. Confirm the union manufacturer and matching seal drawing before ordering: 3 inches refers to the nominal connection size rather than the seal outside diameter.
Provide the rubber profile dimensions and brass backing diameter, thickness and seating geometry, together with the NBR compound and Shore A hardness. These details identify the replacement configuration; a Figure 1502 reference alone does not establish interchangeability.

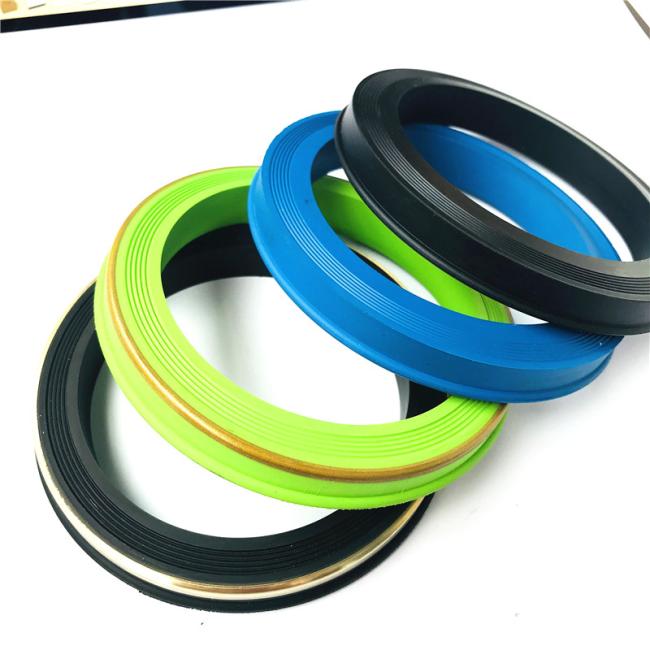

Brass-backed Buna seal rings are replacement components for specified flow-line union connections. Inspect the groove, mating surfaces and backing arrangement using the equipment maintenance procedure, and match the ordered assembly or separate components to the approved parts list.
Review fluid composition and temperature against the selected NBR compound. FKM, HNBR and stainless-backed constructions are separate options. Operating and test pressure limits belong to the complete rated union assembly; this listing does not establish an independent seal pressure rating or demonstrate a universal 22,500 psi test. Sour-gas suitability requires specific material and equipment qualification.

   Product  Show

Related Products

Our Company

Shanghai Qinuo Industry

Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Our main services include develop and manufacture rubber parts and molds, plastic parts and molds.

We can also according to customers requirement to provide various kinds of mixing rubber.Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, product-specific RoHS documentation reviewed when required, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
