Product Description
IEC 60884 Figure 31 Arrangement for Test on Covers or Cover-plates
Product Overview:
This test apparatus conforms to IEC 60884-1:2013 clause 24.14 figure 31. It is used to verify the required retention and removal force for the cover or cover plate of switch or socket or other parts.
The cover or cover-plate being fitted on the wall after a sheet of hard material, (1 ± 0,1) mm thick, has been fitted around the supporting frame as shown in figure 31 of IEC 60884-1 : 2013.
Technical Parameters:
| Test specimen | Cover or cover plate of switches, sockets |
| Test purpose | It is suitable for verifying the required retention and removal force for the cover or cover plate of switch or socket or other parts |

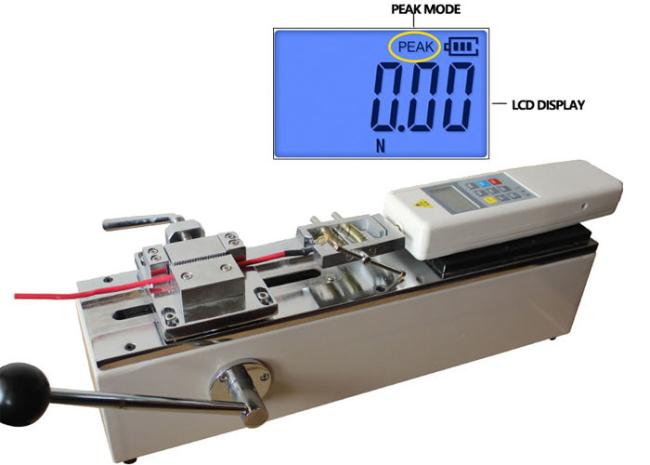

| Test principle | The push-pull force meter is used to push or pull the sample with different force values. A 1±0.1mm hard metal gasket should be used to simulate wallpaper around the support frame. |
| Equipment structure and characteristics | Equipment dimensions: about: 450×200×200 (mm) W×D×H, equipment weight: 20kg |
| Use environment |
Working temperature 0-40℃, humidity 30%-90%;
|
| Test station | Single |
| Push pull gauge parameters | 0-200N, division value 0.01N, error <±1%, three units of N/lbf/kgf can be switched |
| Test stroke | 50mm |
| Gasket | 1±0.1mm hard metal |
| Operation method | Manual |
| Accessory | 86 type concealed box |
