Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Steel Coil Automatic Metal Sheet Slitting Line thickness 0.3 ~ 3mm 100 m / min
Description:
Steel Coil Automatic Metal Sheet Slitting Machine, is used to uncoiling, slitting, recoiling the steel rolls into demand width steels. It can be applied to process the cold or hot rolled steel coil, Silicon steel coils, tinplate coils, Stainless steel and color coated steels. galvanized steel, stainless steel tinplate, silicon steel ,copper and aluminum, etc. It can be applied to: steel factory, transformer, electrical motor, electrical equipment, car, building materials, door, packaging industries.
We can process material of Q235 cold rolled and galvanized sheet; Q345 hot rolling pickling; Stainless steel
Width range is from 400-1600mm
Material thickness 0.3-3.0mm(for stainless steel max.processing thickness is 3.0mm)
Slitting accuracy :Width ±0.15 mm, machine is with high precision
We make the slitting blade 220*340*15mm, slitting speed can reach100m/min
Technical parameter:
|
Items
|
Parameter |
| Material | Q235 cold rolled and galvanized sheet; Q345 hot rolling pickling; Stainless steel |
| Thickness range | 0.3~3mm(for stainless steel max.processing thickness is 3.0mm) |
|
width range
|
400~1600mm |
|
Slitting accuracy
|
Width ±0.15 mm |
|
Slitting speed
|
100 m/min |
|
Uncoiler load-bearing
|
≤20t |
|
Coil diameter
|
¢500/610 mm |
|
Control system
|
PLC |
|
Slitting blade shaft size
|
¢220 mm |
| Slitting strips number(max) | 0.3-1.0mm: 25-16strips 1.0-2.0mm: 16-10strips 2.0-3.0mm: 10-6strips |
|
Slitting belting width(min)
|
≥40 mm |
|
Slitting blade specification
|
¢220×¢340×δ15mm |
Structure:
Maximum of the slitting strips number:
0.3-1.0mm: 25-16strips
1.0-2.0mm: 16-10strips
2.0-3.0mm: 10-6strips

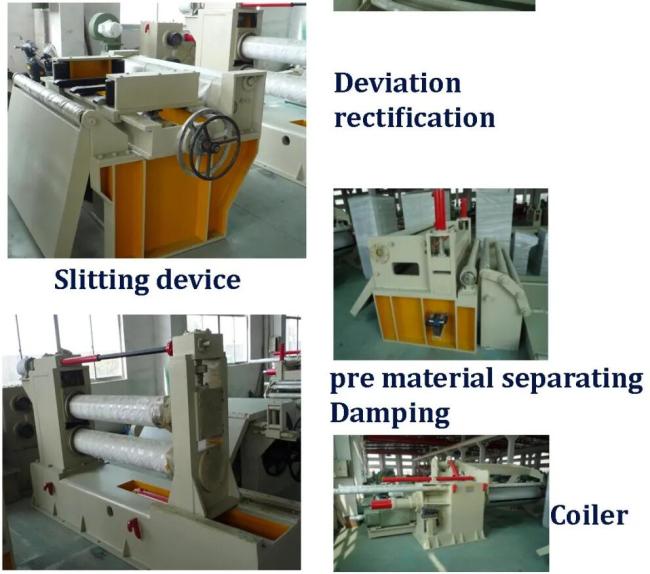

Steel Coil Automatic Metal Sheet Slitting Machine is Compose of Decoiler, feeding device, slitting machine, recoiler (Rewinding) machine.
Uncoiler load-bearing ≤20t
We use PLC system, easy to operate and control
Function of Steel Coil Automatic Metal Sheet Slitting Machine: It is used to the longitudinal cutting for the steel coils and rewinding the slit strips into coils.
Advantages : the Steel Coil Automatic Metal Sheet Slitting Machine is convenient to operate, high cutting precision and utilization factor of the material, adopts the infinitive speed.
After-sale service:
1 . Can you make the machine according to my design or photo type?
a . Yes. We have an experienced team to work out the most suitable
design and production plan for the machine.
2 . How can we be assured that you will deliver us quality machine with spare parts?
a . Customers to send the technical people to our factory for checking the quality.
b . We can send the technicians to the buyer`s factory for the installation of the machine.
3 . What policy of your garentee?
Within the One-year period, we could supply you the replacement
parts free of charge for any damaged parts caused by quality problems
after one year,you need to pay the factory cost.
