Fully Automatic 3 Ply N95 Cup Breath Valve Filter Face Mask Making Machine
Price:
Negotiation
MOQ:
Negotiable
Delivery Time:
7-15 days
Brand:
YBT
Product Description

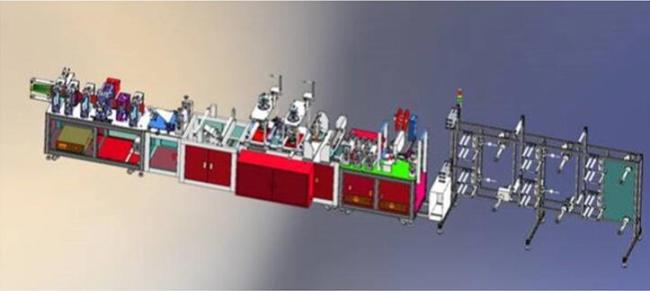

Fully Automatic 3 Ply N95 Cup Breath Valve Filter Face Mask Making Machine
Direction for use
After the plane mask feeder feeds the fabric into the outer ear belt machine, it is fed into the ear belt scissors group mechanism through the conveying line for ear belt pressure release, and then reaches the welding group and the ultrasonic group to weld the ear belt. Then, the fabric is fed into the discharge conveying line through the discharge group through the ear-turning belt group, and the discharge conveying line sends out the mask.
|
Technical Parameters
|
||||
|
Equipment size
|
9800 * 1000 * 2050mm
|
|||
|
Appearance color
|
off-white paint or stainless steel
|
|||
|
Equipment weight
|
≤1500kg, ground bearing capacity:> 3000KG / M
|
|||
|
Working power
|
220V 50hz
|
|||
|
Rated power
|
18kw
|
|||
|
Compressed air
|
0.5-0.7MPA, using flow rate of about 300L / MIN
|
|||
|
Operating environment
|
temperature: 10-35 ℃, humidity 5-35% HR
|
|||
|
Equipment production capacity
|
25-50pcs / min
|
|||
|
Equipment qualification rate
|
96-99%
|
|||
|
Equipment failure rate
|
2%, refers to the failure caused by the equipment itself
|
|||
|
Finished mask size
|
folded size160*105
|
|||
|
Mask material
|
Melt spray cloth, hot air cloth
|
|||
|
Mask layers
|
3-6 layers
|
|||
|
Ear strap fixation
|
welding
|
|||
|
Control system
|
PLC
|
|||
|
Remarks:
|
Add breaking valve part, printing part.
|
|||
Mask making machine specs:
1. Full automatic mask making machine from material feeding to mask collection.
2. High automation in ear-loop welding, edge wrapping, counting and material discharging. Easy and safe operation.
3. Artistic and durable, aluminum alloy board, lean and practicality.
4. Faster, Rotary connection device of Independent innovation design.
5. Super stable with central PLC control system, stable performance and low failure rate.
6. Deeply optimized structure for durable and long service life.
Process flow:
Unloading-Nose beam strip-Welding pattern-Red breathing valve hole-Transfer printing text-Welding ear band-Sticking sponge-Folding-Welding in the middle-Cut shape-Finished material discharge-Welding breathing valve.
