N95 foldable 3D mask with Breathing valve /Ventilation valve making machine

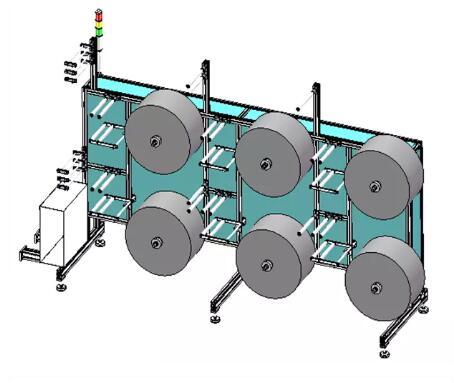

Import raw materials→automatic feeding→nose wire cutting/feeding→shape fusion→LOGO transfer printing→ear band welding→flush breathing valve hole→automatic conveying breathing valve and alignment/welding→nose pad sponge paste→folding→sealing→automatic cutting→finished product output→the whole process of automation.

Product features:

1. The use of square frame + aluminum alloy material frame structure, beautiful solid without rust.

2. Computer PLC programming control, high stability, low failure rate, less noise.

3. The use of servo motor, stepping motor drive, high precision.

4. Photoelectric testing raw materials to avoid mistakes and reduce waste.

5. This equipment adopts segmented frame installation to facilitate loading and unloading in the factory.

6. The machine adopts pulley and fixed feet, easy and fast to move, strong fixation, do not shake.

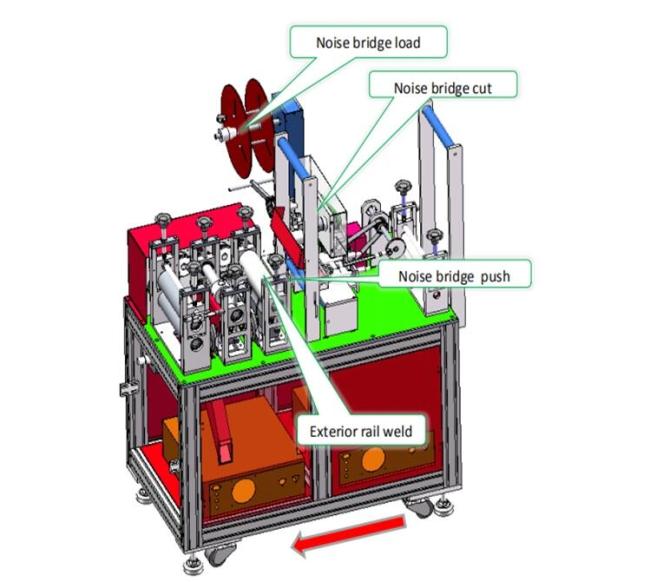

Nose bridge on-line machine

1.Nose bridge lead 2.The nose bridge strip is cut off automatically 3. Nose bridge strip is back on line 4. Nose bridge is pressed in, ultrasonic roller is pressed and welded 5. Traction passed

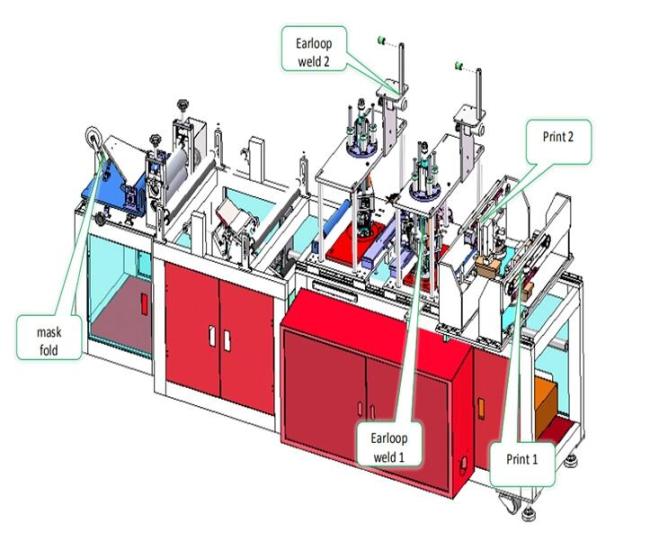

Earband online machine

1.Earband lead 2.Earband welding 3. Marking 4.Fold the mask 5. Traction passed



Welding slitting machine

1.Roll compaction 2.Ultrasonic welding after ear folding 3.Slitting after forming the mask 4.Filling the finished mask
