Fully automatic 3 ply nonwoven fabric disposable medical facemask masks making machine
Fully automatic 3 ply nonwoven fabric disposable medical facemask masks making machine

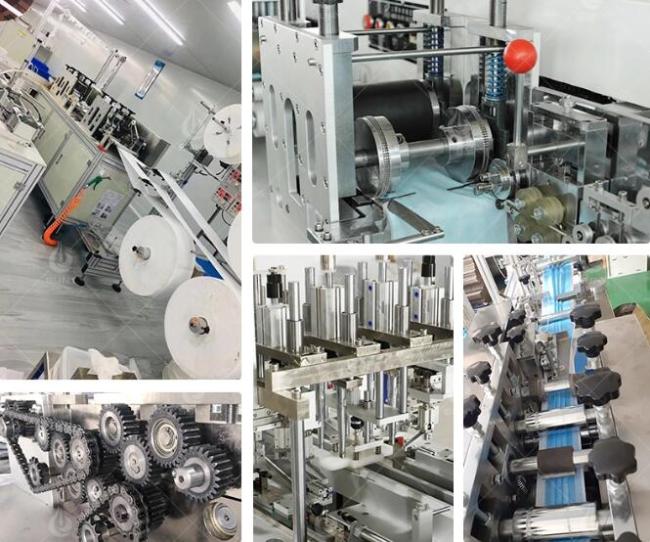

This machine is used for automatic forming of folding masks, the whole process including: raw material roll unwinding, roller driving, feeding nose clip, welding and wrapping nose clip, (pneumatic valve hole optional), (printing optional), welding earloop 1, welding earloop 2, folding, edge welding, cutting, finished product output, remaining material output and etc., then conveyed out. The entire process is fully automated. The production line has advantages such as stable performance, high output capacity, low defect rate, and easy operation.
2. Computer PLC programming control, servo drive, high degree of automation;
3. Photoelectric detection of raw materials to avoid mistakes and reduce waste.
| Dimension | 8000mm(L) X1400mm(W) X1600mm(H) |
| Color | International standard warm grey 1C |
| Weight |
≤3000kg, ground weight capacity≤500kg/m2 ≤5000kg, ground weight capacity ≤500kg/m2 |
| Working power | equipment 220VAC±5%; 50HZ;rated power 17KW |
| Working air pressure | Compressed air pressure 0.5-0.8MPa; compressed air flux 300L/min(stable flux guaranteed; oil and water have to be filtered) |
| Production efficiency | 1800-2500PCS/H(based on 20 hours each day, daily capacity about 36,000-50,000 pieces) |
| Qualification ratio | 99%(excluding unqualified incoming materials, improper operation by employees) |
| Equip failure ratio | ≤2%(equipment failure itself) |
| Operating environment |
Temperature 10~35℃; humidity: 5-35%HR No flammable, corrosive gas, no dust (cleanliness no less than 100,000 grade) |
| Raw Material Recommendation | Cloth:(meltblown nonwoven, PPnonwoven) |
A1: Normally it's about 15~45 working days.
Q2: What's the payment terms?
A2: 30% deposit TT, 70% paid before shipment.
Q3: Can we check face mask machine before order?
A3: Yes, welcome to visit and check machine anytime.
Q4: Is it difficult to install the machine ?
Q4: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.You will get videos and instructions about installation of machine from us.
A5: We can do it as your request.
