Stainless Steel Sheet Metal Slitter Machine Thickness 0.3 - 2.0mm High Efficiency
Automatic Stainless Steel Coil Thickness 0.2-2.0mm Slitting Line Machine
Slitting Line Machine is used for the metal plate decoiling, slitting and winding into several volumes needed width coil plate. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials.
Input coil parameter
| 1. | Material | : | CR,color steel,PPGI | ||
| 2. | Thickness | : | 0.3~2.0mm | ||
| 3. | Width | : | 800~1600mm | ||
| 4. | Mechanical character | : | Tensile strength σb≤450MP σs≤260MP | ||
| 5. | Coil ID | : | Ø508mm-Ø610mm(padded) | ||
| 6. | Coil OD | : | Ø800mm ~ Ø2000mm | ||
| 7. | Weight | : | 10t | ||
Finished product parameter:
1 . Coil ID : 610mm,508mm,510mm
2 . Coil MAX:10t
3 . Width accuracy: Width>300mm, 0.5~1.5mm ±0.05mm
1.6~3.0mm ±0.10mm
4 . Straightness (bending) Width>300mm, ≤0.35mm/1000mm
(If the two side strips are within 100mm of the mother material, considering as the common production process)
5 . Burr :Thickness ≤1.0mm,burr≤0.03mm (Sharp blade, reasonable gap)
Thickness >1.0mm,burr ≤3% of material(Sharp blade, reasonable gap)
6 . Scrape width range :2~25mm(Not less than 1.5 times the thickness)
Machine parameters:
| 1. | Guiding speed | : | 0~10m/min(adjustable) | ||
| 2. | Line speed | : | 0~150m/min(adjustable) | ||
| 3. | Slitting way | : | Drive shear | ||
| 4. | Recoiling way | : | Roll-up style | ||
| 5. | Operation height | : | +1000mm | ||
| 6. | Machine size | 28m X 10m | |||
| 7. | Running direction | : | The operator operates on the side of line, running from left to right | ||
Simple working chart
Hydraulic entry coil car,Hydraulic decoiler,Leveling machine,Loop,Side guide device,Servo precision straightening machine,Cutter,Transportation table,Hydraulic lifting table,Pneumatic stacker device,Exit coil car,Pneumatic system,Hydraulic system,Electrical system

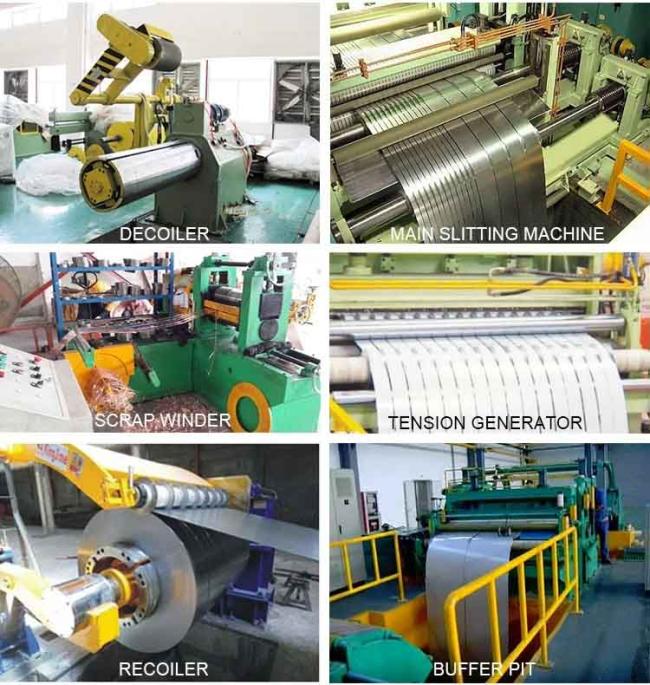

Component
Other instructions:
1 . the gas source of the whole set of equipment is equipped with the user.
2 . installation and commissioning is completed, the two sides need to handle the handover procedures, not for the acceptance of the handover procedures and put into use, that is, the two sides agreed to accept qualified.
3 . Production line equipment spray paint dry paint. If users have special requirements for the equipment to provide the color tone, or writing.
4 . Foundation construction, installation and debugging of embedded parts and the consumption of water, oil, gas and electricity by the user responsible
5 . other matters of negotiation.
