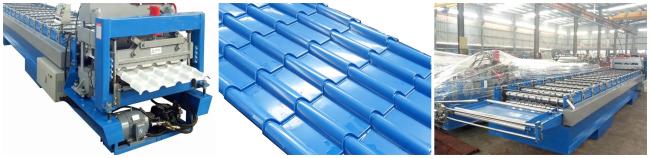

0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Sheet Making Roll forming Machine Manufacturer
YBT Machinery Equipment Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
YBT Glazed Roof Tile Equipment Technical Parameter
| No. | Item | parameter |
| 1 | Machine size | 8000*1700*1700mm |
| 2 | Machine weight | 7000kg |
| 3 | Machine power | 5.5kw |
| 4 | Hydraulic engine | 5.5kw |
| 5 | Roll speed | M/Min |
| 6 | Roll stations | 16 |
| 7 | Roller material | 45#Steel |
| 8 | Effective width | 800mm |
| 9 | Feeding width | 1000mm |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 0.35-0.65mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
|
COMPONENT FOR glazed tile forming machine
|
|||
|
Name
|
Quantity
|
Units
|
|
|
Decoiler
|
1
|
Set
|
|
|
Main Machine
|
Feeding device
|
1
|
Set
|
|
Roll forming system
|
1
|
Set
|
|
|
Cut Equipment
|
1
|
Set
|
|
|
Hydraulic system
|
1
|
Set
|
|
|
Electric control system
|
1
|
Set
|
|
|
Supporter/Automatic Stacker
|
1
|
Set
|
|
The rollition driven forming stations, pressing die, cutting equipment, hydraulic station, PLC controler and manual unload product run out table.

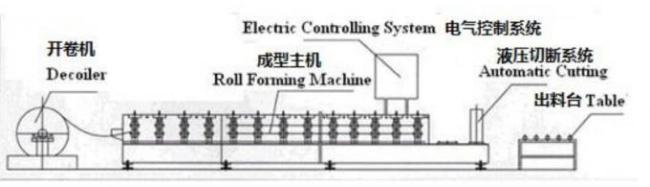

Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table
Application :
With the rise of tourism, glazed tile is widely used, the use of glazed tile most places, including gardens, temples, pavilions, walls, etc., because of the glazed tile has a good waterproof, and beautiful, so many villas often use glazed tile roof.
Packaging & Shipping
A . One 40ft container for loading one set machine with manual decoiler;
B . The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
C . Spare parts and some small parts packed in plastic tooling box;
D . All Components Fixed by steel wire with Container.
Our service
1 . We can send our technicians to install and train the workers in the clients' factories with extra cost.
2 . The warranty of YBT Shutter Roll Forming Machine is one year after the client receives the machine.Within the one year, we will offer the replacement parts to the client free of charge.
3 . We offer technical support for the entire life of our machines.
