Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity

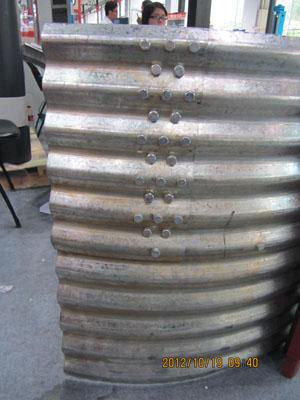

Steel Silo Corrugated Side Panel Roll Forming Machine Silo Roll Forming Machine

• Features



  1. Large capacity

  One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.



  2. High accuracy

  Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.



  3. Less residues

  External installable stiffeners contribute to less grain residues on silo walls.



  4. Detachable and movable

  With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

Component

De coiler

Material width adjusting and guiding equipment

Roll former

Curving equipment

Cutting machine

Hydraulic control system

Technical process

Decoiling →Guiding→Cutting→Roll forming→Curving equipment

Technical parameter
